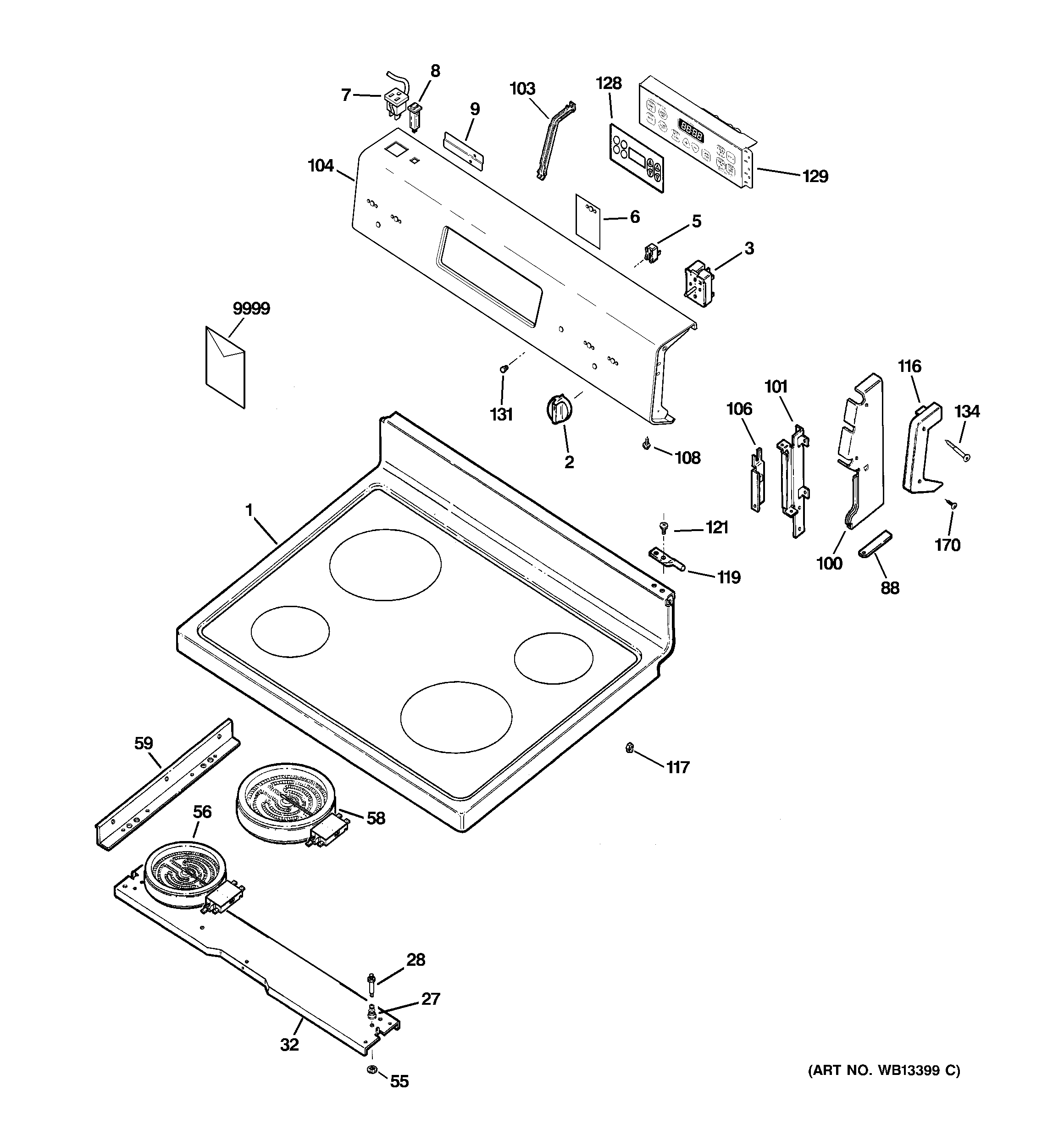

RCBS787WJ3WW CONTROL PANEL & COOKTOP

RCBS787WJ3WW CONTROL PANEL & COOKTOP

Written by

in

RCBS787WJ3WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB57K10055
2WB03T10076 GE Oven Knob
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
3WB24T10029 GE Oven Infinite Burner Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
6GEN WB37K10011
7GEN WB37K10006
8GEN WB37K10010
9GEN WB37K10008
27GEN WB09X5119
28GEN WB02X8377
32WB02K10045 GE Bottom Heater Support
55GEN WB02X8323
56WB30X38928 GE Surface 6" Radiant Element
58WB30X26465 GE Oven 8" Halogen Element
59WB02K10046 GE Oven Side Heater Brace
88PAD
100GEN WB07K10002
100GEN WB07K10001
101GEN WB37K0018
101GEN WB37K0017
103GEN WB02K10027
104GEN WB36K10501
106GEN WB10K10001
106GEN WB10K10002
108WB1X5364 GE Oven Mounting Screw
116WB07K10007 GE Oven Endcap Left
116WB07K10005 GE Oven Right Endcap
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB11K10029
129CONTROL OVEN TO9 (ELEC)
131WB25T10041 GE Oven Lens
134GEN WB01K10004
170GEN WB01X5874
9999PM10X310 GE Cerama Bryte Cooktop Cleaner
9999GEN 29-5532
9999GEN 31-21298
9999GEN 31-21304
