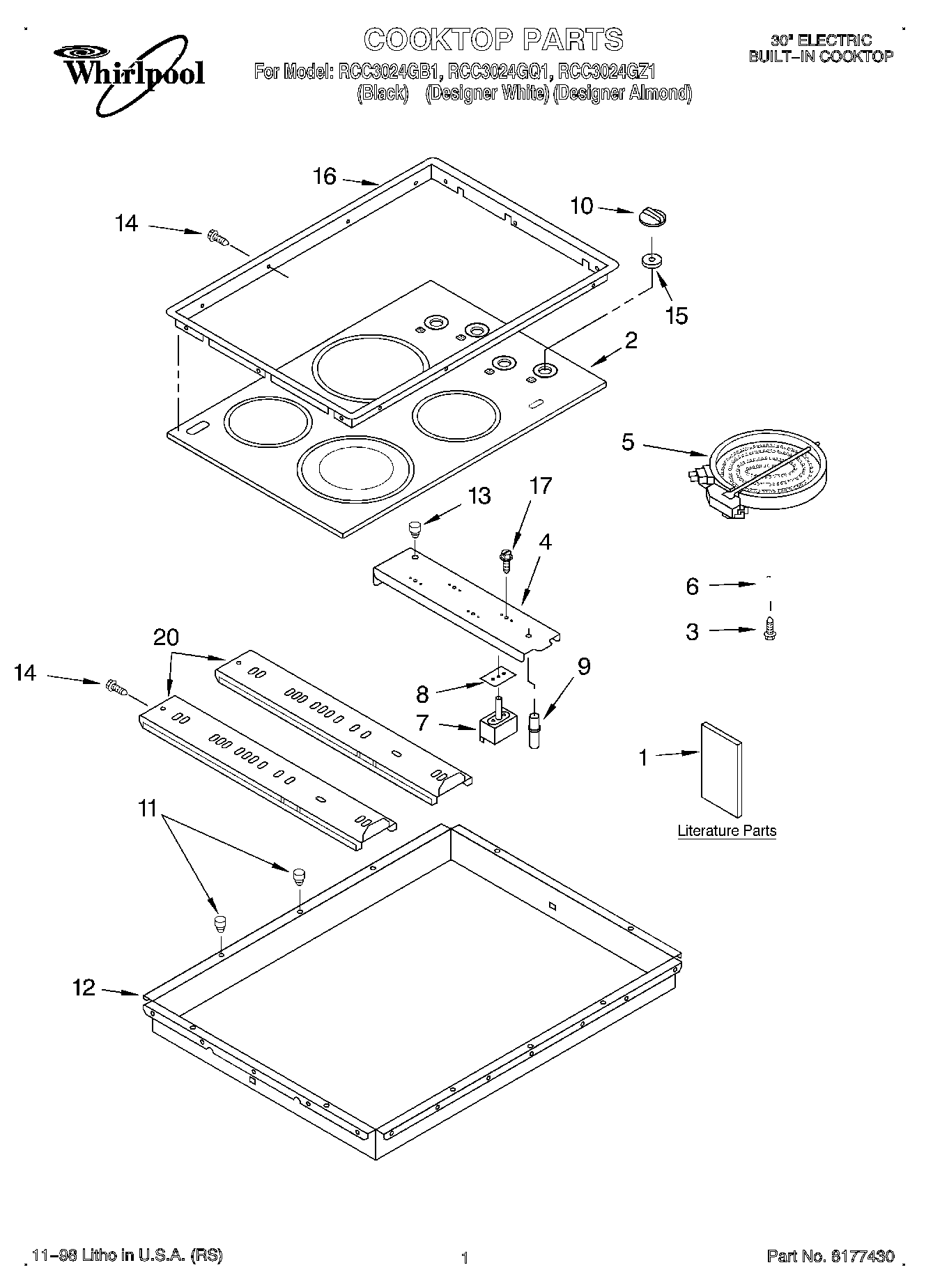

RCC3024GQ1 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
2	Cooktop, Glass (Designer Almond)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	W10823698 Whirlpool Surface Element Right Rear
5	W10823696 Whirlpool Radiant Surface Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
6	Spring, Locator
7	WP3191049 Infinite Switch Left Rear Right Front
7	WP3191050 Whirlpool Infinite Switch
7	WP4454541 Whirlpool Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	Knob, Infinite (4) (Almond)
10	WP3196231 Whirlpool Knob
10	WP3196232 Whirlpool Knob
11	Bumper, Rubber (Black (2.75 Dia.))
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
16	Trim Ring, Cooktop
16	Trim Ring, Cooktop (Black)
16	Trim Ring, Cooktop (Designer Almond)
17	WP486579 Whirlpool Air Conditioner Screw
20	Harness, Wire (Burners)
20	Wire, 25` Roll (Black 14 Ga.)
20	WA906B Whirlpool Cooktop Glass Scraper
20	Wire, 25` Roll (Red 14 Ga.)
20	WPL 3192170
20	Rail, Element (2)
20	Wire (14 Ga. 200 c Brown)
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	242831 Whirlpool Oven Wire
20	Hardware Asm.
20	W10491984 Whirlpool Switch Seal
20	1
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	Wire, 25“ Roll (White 14 GA.)
20	18 Ga. 80~c Rating (Red)
