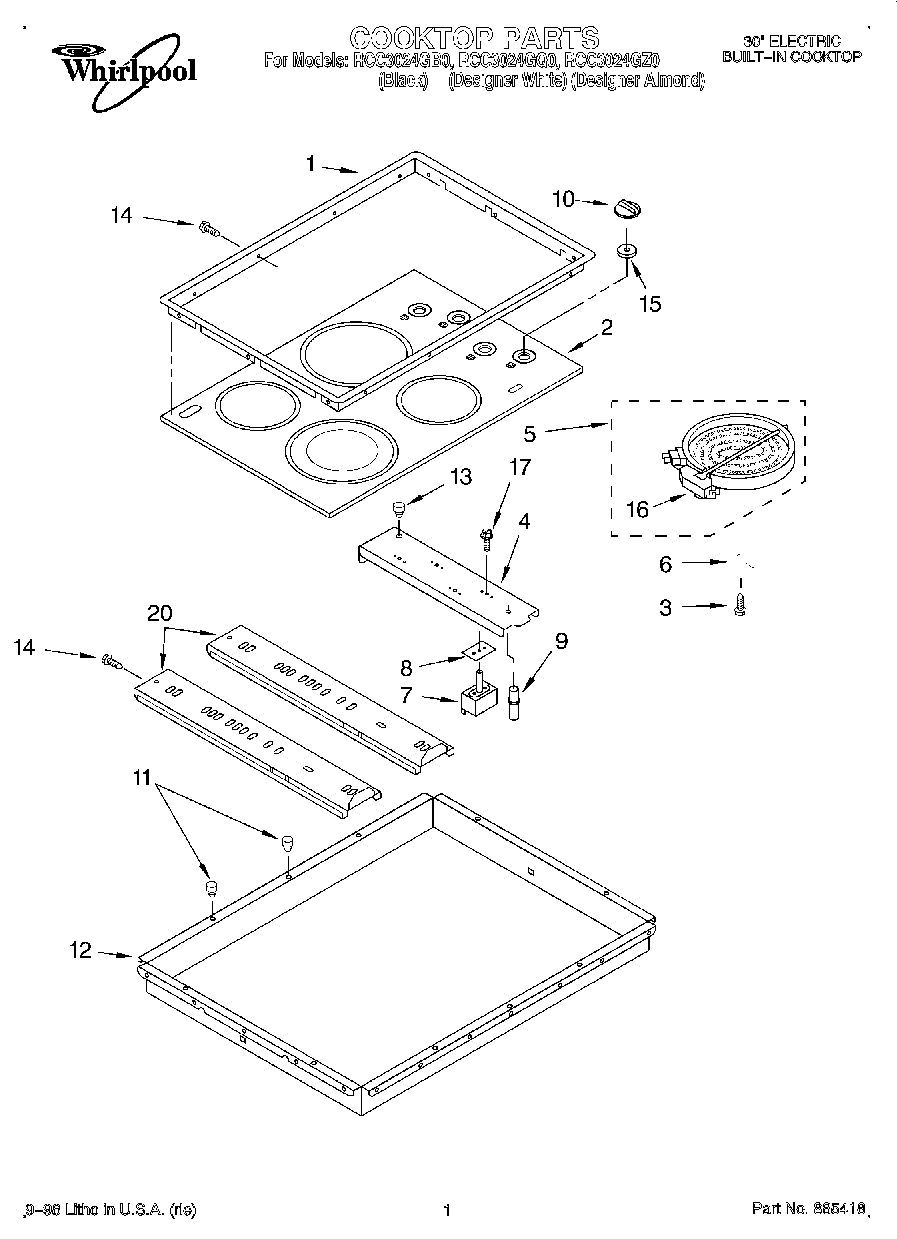

RCC3024GZ0 01 – SECTION

Products

Position	Product
	WA906B Whirlpool Cooktop Glass Scraper
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL LIT3191770
	WPL 3191547
	Literature Parts (Installation Instructions)
	Hardware Asm.
	WPL 3179589
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WPL 3191566
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	Literature Parts (Wiring Diagram)
	Wire (14 Ga. 150 c Orange)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
1	Trim Ring, Cooktop (Designer Almond)
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop
2	Cooktop, Glass (Designer Almond)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	Element, Surface (Includes No. 16) (1200W Right Front)
5	Element, Surface (Includes No. 16) (2400W Left Front)
5	W10823693 Whirlpool Surface Element
6	Spring, Locator
7	WP3191050 Whirlpool Infinite Switch
7	WP4454541 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	WP3196231 Whirlpool Knob
10	Knob, Infinite (4) (Almond)
10	WP3196232 Whirlpool Knob
11	Bumper, Rubber (Black (2.75 Dia.))
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
16	Limiter, Temp. (LF)
16	Switch, Limiter (Use W/3191984 Element)
16	Switch, Limiter (Use W/3191983 Element)
17	WP486579 Whirlpool Air Conditioner Screw
20	Rail, Element (2)
