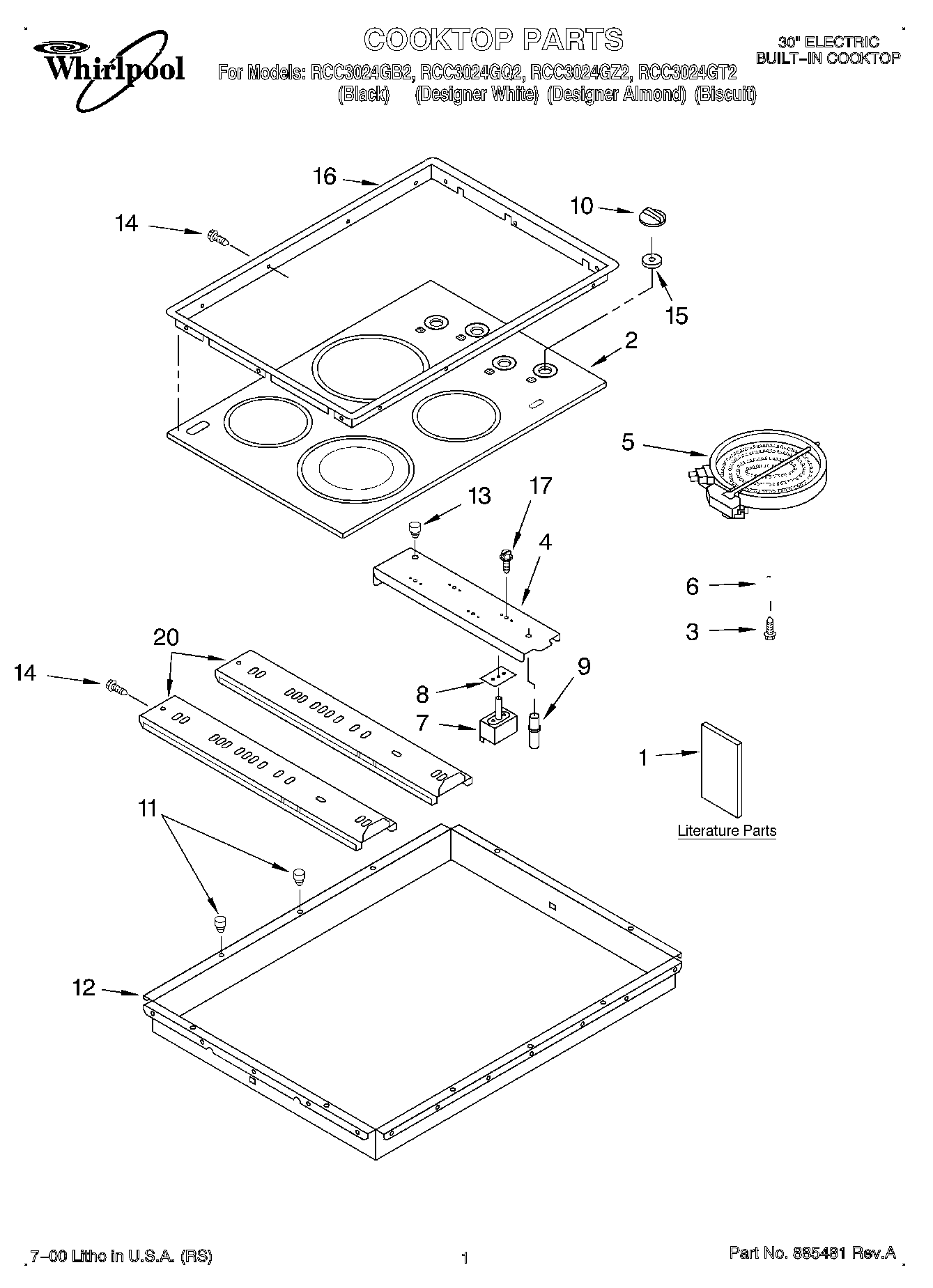

RCC3024GZ2 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
2	Cooktop, Glass (Designer Almond)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	W10823696 Whirlpool Radiant Surface Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
5	W10823698 Whirlpool Surface Element Right Rear
6	Spring, Locator
7	WP3191050 Whirlpool Infinite Switch
7	WP4454541 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	Knob, Infinite (4) (Almond)
10	WP3196231 Whirlpool Knob
10	WP3196232 Whirlpool Knob
11	Bumper, Rubber (Black (2.75 Dia.))
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
16	Trim Ring, Cooktop (Black)
16	Trim Ring, Cooktop (Designer Almond)
16	Trim Ring, Cooktop (Biscuit)
16	Trim Ring, Cooktop (White)
17	WP486579 Whirlpool Air Conditioner Screw
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	WP3400015 Whirlpool Screw
20	Wire, 25“ Roll (White 14 GA.)
20	Harness, Wire (Burners)
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	1
20	18 Ga. 80~c Rating (Red)
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Hardware Asm.
20	Wire (14 Ga. 150 c Brown)
20	242831 Whirlpool Oven Wire
20	W10491984 Whirlpool Switch Seal
20	Rail, Element (2)
20	WPL 3192170
20	Wire (14 Ga. 200 c Brown)
