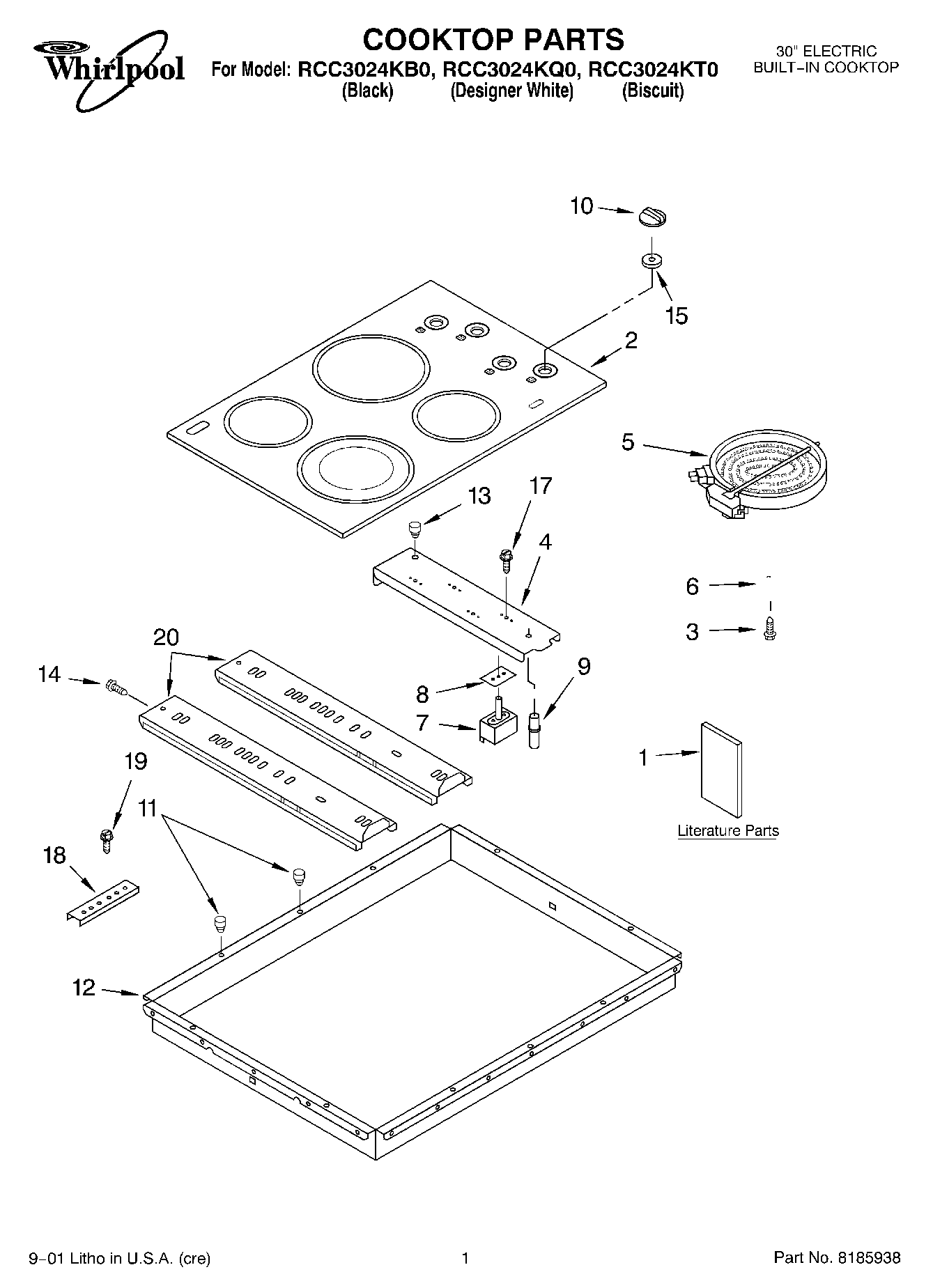

RCC3024KB0 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
2Cooktop, Glass (Designer White)
2Cooktop, Glass (Black)
2Cooktop, Glass (Biscuit)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823696 Whirlpool Radiant Surface Element
5W10823698 Whirlpool Surface Element Right Rear
6Spring, Locator
7WP3191049 Infinite Switch Left Rear Right Front
7WP4454541 Whirlpool Infinite Switch
7WP3191050 Whirlpool Infinite Switch
83183956 Whirlpool Oven Seal Switch
9Light, Indicator
10WP3196232 Whirlpool Knob
10WP3196231 Whirlpool Knob
11Bumper, Rubber (Black (2.75 Dia.))
12Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
188186533 Whirlpool Hardware
19Screw
20Wire (12 Ga. 150 c Black)
20WP3400015 Whirlpool Screw
201
20Harness, Wire (Burners)
20Wire, 25` Roll (Black 14 Ga.)
20Wire, 25` Roll (Red 14 Ga.)
20Wire, 25“ Roll (White 14 GA.)
20W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20W10491984 Whirlpool Switch Seal
20Wire (14 Ga. 200 c Brown)
20WPL 3192170
20Wire (14 Ga. 150 c Brown)
20Rail, Element (2)
20Wire (14 Ga. 150 c Green)
20Wire (14 Ga. 150 c Orange)
20Wire (14 Ga. 150 c Yellow)
2018 Ga. 80~c Rating (Red)
20242831 Whirlpool Oven Wire
