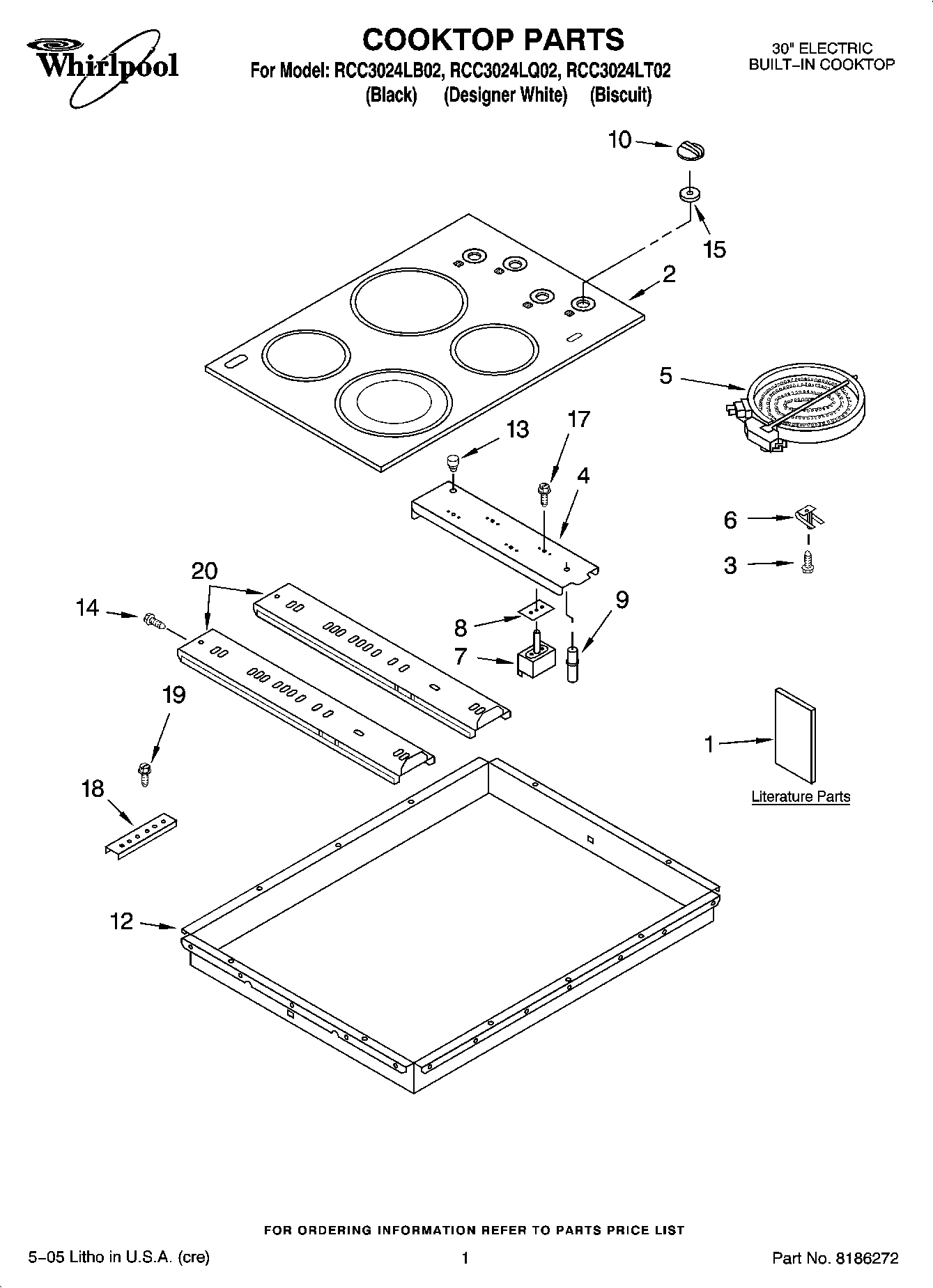

RCC3024LB02 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Harness, Wire (Burners)
	WPL 4456515
	Wire (14 Ga. 150 c Brown)
	242831 Whirlpool Oven Wire
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WPL ARI121179A
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL ARI121178A
	WP3400015 Whirlpool Screw
	WPL ARI121180A
1	Wiring Diagram
1	Safe Cooking Tips
1	Use & Care Guide
1	Installation Instructions
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Biscuit)
2	Foam, Seal
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	W10823696 Whirlpool Radiant Surface Element
5	W10823698 Whirlpool Surface Element Right Rear
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
6	9759094 Whirlpool Spring
7	WP3191050 Whirlpool Infinite Switch
7	WP4454541 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	Knob, Control (4) (Biscuit)
10	WP8522566 Whirlpool Knob
10	WP8522565 Whirlpool Knob
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	8186533 Whirlpool Hardware
19	WP3400093 Whirlpool Screw
20	FOLLOWING PARTS NOT ILLUSTRATED
20	Rail, Element (2)
20	Hardware Asm.
20	WPL 3192737
20	4455364 Whirlpool Oven Support Bracket
20	FOLLOWING PARTS NOT ILLUSTRATED
