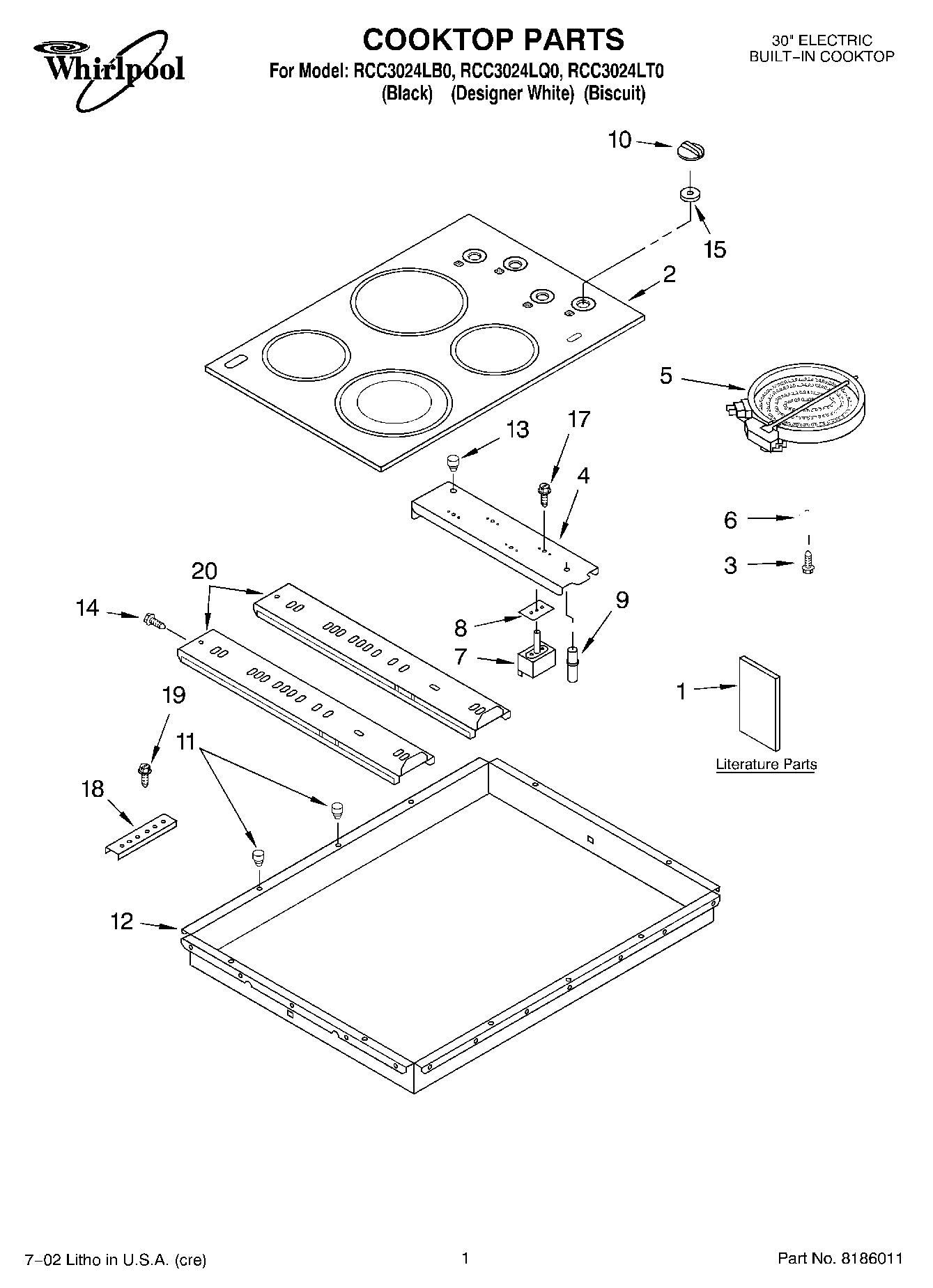

RCC3024LT0 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Wiring Diagram)
2	Cooktop, Glass (Biscuit)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Designer White)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	W10823698 Whirlpool Surface Element Right Rear
5	W10823696 Whirlpool Radiant Surface Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
6	Spring, Locator
7	WP3191049 Infinite Switch Left Rear Right Front
7	WP3191050 Whirlpool Infinite Switch
7	WP4454541 Whirlpool Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	Knob, Control (4) (Biscuit)
10	WP8522565 Whirlpool Knob
10	WP8522566 Whirlpool Knob
11	Bumper, Rubber (Black (2.75 Dia.))
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	8186533 Whirlpool Hardware
19	WP3400093 Whirlpool Screw
20	WP3400015 Whirlpool Screw
20	WPL 4456063
20	Harness, Wire (Burners)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	Wire, 25“ Roll (White 14 GA.)
20	WPL 3192737
20	18 Ga. 80~c Rating (Red)
20	Wire (14 Ga. 150 c Yellow)
20	1
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	242831 Whirlpool Oven Wire
20	Hardware Asm.
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	Wire (14 Ga. 200 c Brown)
20	Rail, Element (2)
20	4455364 Whirlpool Oven Support Bracket
20	Wire (12 Ga. 150 c Black)
