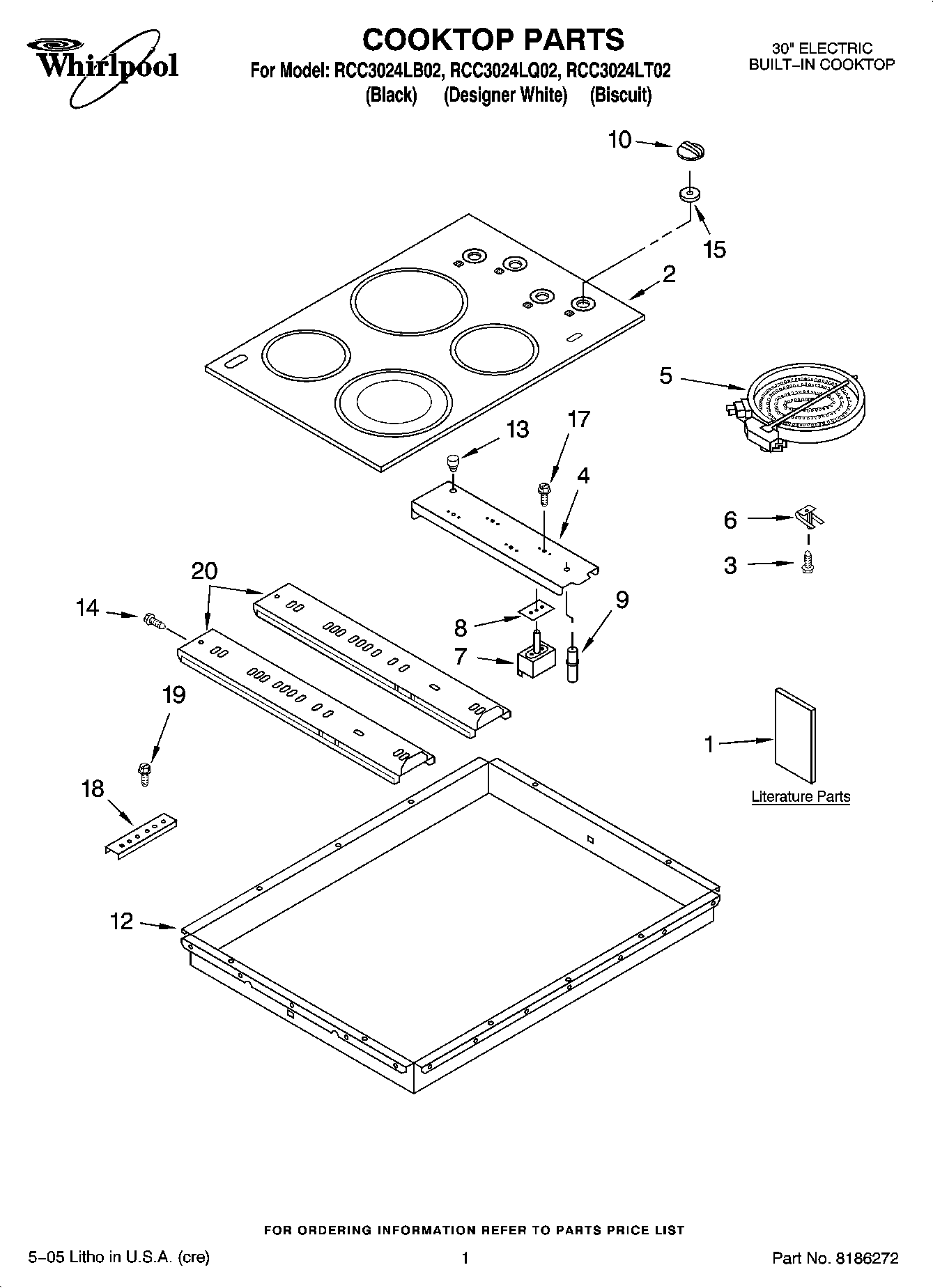

RCC3024LT02 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI121201A
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 4456515
	WPL ARI121202A
	Harness, Wire (Burners)
	WPL ARI121200A
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Brown)
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Black 14 Ga.)
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Red 14 Ga.)
	Wire (14 Ga. 150 c Green)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
1	Wiring Diagram
1	Use & Care Guide
1	Safe Cooking Tips
1	Installation Instructions
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Biscuit)
2	Foam, Seal
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	W10823696 Whirlpool Radiant Surface Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
5	W10823698 Whirlpool Surface Element Right Rear
6	9759094 Whirlpool Spring
7	WP3191049 Infinite Switch Left Rear Right Front
7	WP4454541 Whirlpool Infinite Switch
7	WP3191050 Whirlpool Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	Knob, Control (4) (Biscuit)
10	WP8522566 Whirlpool Knob
10	WP8522565 Whirlpool Knob
12	Box, Burner
13	Bumper, Silicone
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	8186533 Whirlpool Hardware
19	WP3400093 Whirlpool Screw
20	Hardware Asm.
20	FOLLOWING PARTS NOT ILLUSTRATED
20	FOLLOWING PARTS NOT ILLUSTRATED
20	Rail, Element (2)
20	4455364 Whirlpool Oven Support Bracket
20	WPL 3192737
