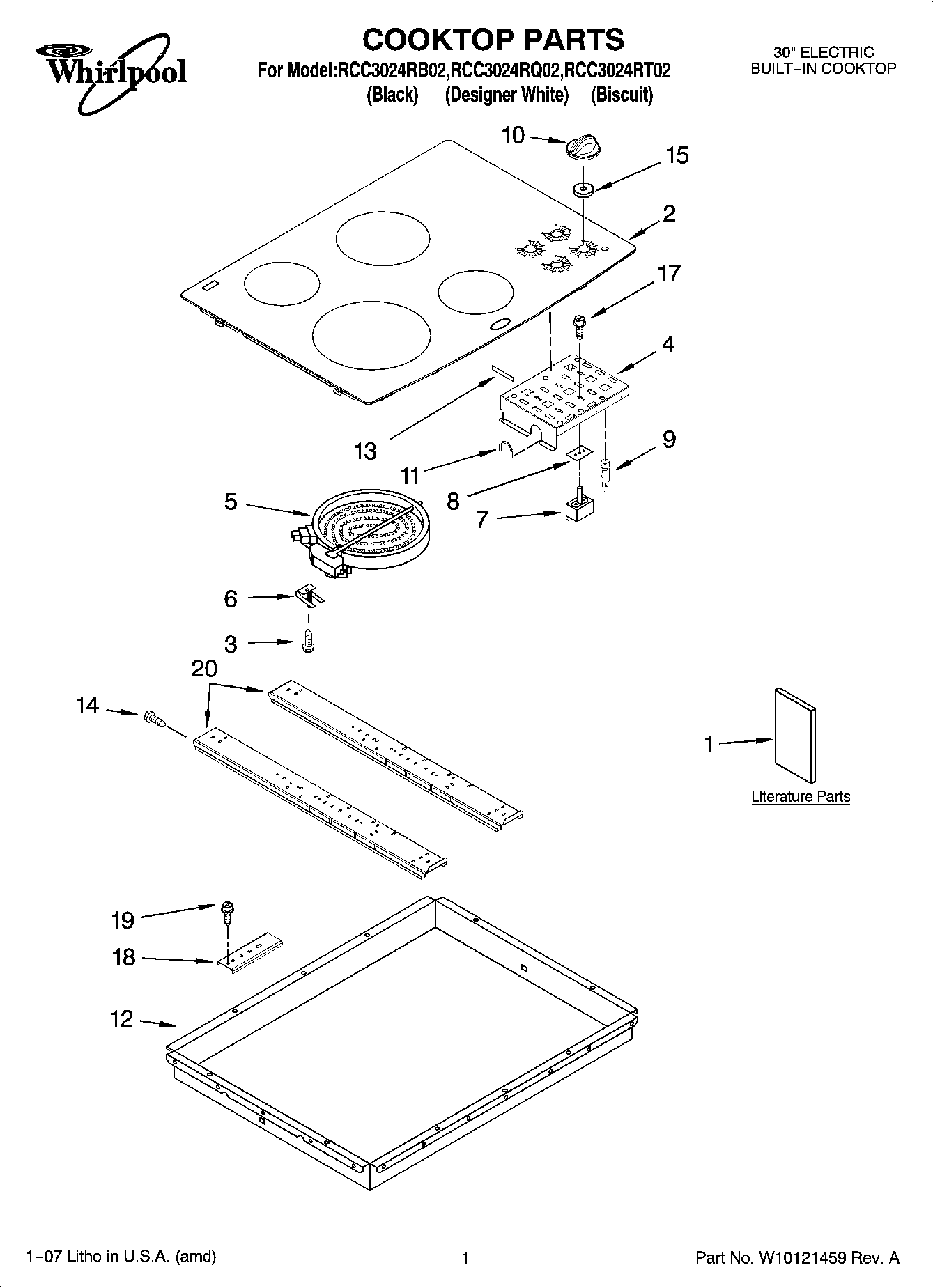

RCC3024RB02 01 – COOKTOP PARTS, OPTIONAL PARTS

RCC3024RB02 01 – COOKTOP PARTS, OPTIONAL PARTS

RCC3024RB02 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI121217A
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI121214A
Hardware Asm.
4455364 Whirlpool Oven Support Bracket
8285996 Whirlpool Wire Harness
Harness Conduit
WPL ARI121213A
WPL ARI121215A
WPL ARI121216A
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire, 25“ Roll (White 14 GA.)
WP8286642 Whirlpool Tape
Wire, 25` Roll (Black 14 Ga.)
WP3400015 Whirlpool Screw
Wire (14 Ga. 150 c Brown)
Wire, 25` Roll (Red 14 Ga.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
242831 Whirlpool Oven Wire
1Installation Instructions (Undercounter Oven)
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
1Wiring Diagram
1LITERATURE PARTS
1Safe Cooking Tips (French)
1Safe Cooking Tips
2Cooktop, Glass (Black)
2Cooktop, Glass (Designer White)
2Cooktop, Glass (Biscuit)
3WP486754 Whirlpool Compactor Screw
4W10491985 Whirlpool Screw
4Bracket, Switch Mounting
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823698 Whirlpool Surface Element Right Rear
5W10823696 Whirlpool Radiant Surface Element
69759094 Whirlpool Spring
7WP3191050 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
7WP4454541 Whirlpool Infinite Switch
83183956 Whirlpool Oven Seal Switch
93193012 Whirlpool Oven Indicator Light
108286043WH Whirlpool Knob
108286043BT Whirlpool Knob
10WP8286043BL Whirlpool Knob
11GROMMET, FLEXIBLE
12Box, Burner
13W10491984 Whirlpool Switch Seal
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
17WP486579 Whirlpool Air Conditioner Screw
188186533 Whirlpool Hardware
19WP3400093 Whirlpool Screw
20Rail, Element (3)
