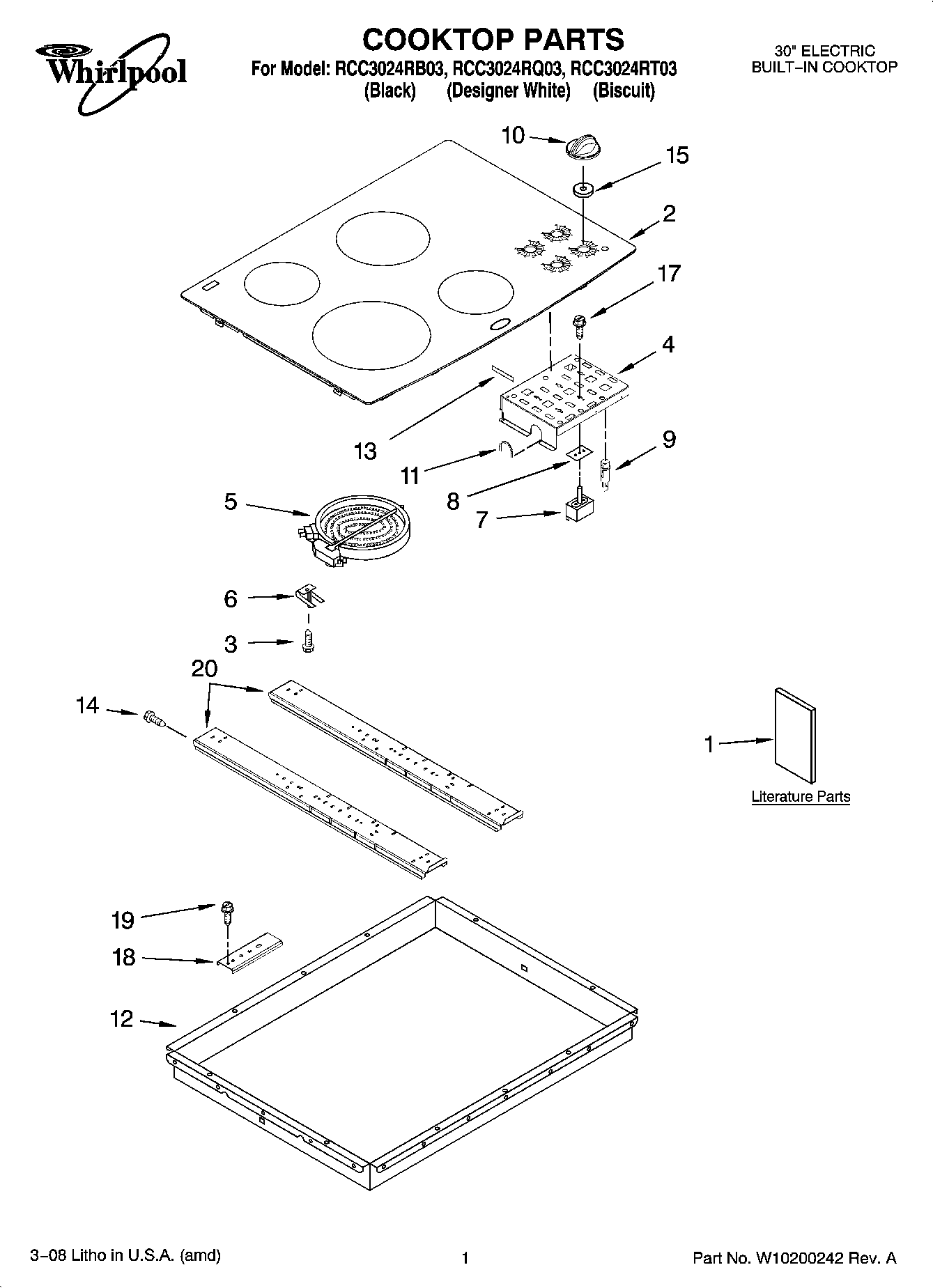

RCC3024RB03 01 – COOKTOP PARTS, OPTIONAL PARTS

RCC3024RB03 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

RCC3024RB03 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
1
WPL ARI121220A
242831 Whirlpool Oven Wire
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
WPL ARI121219A
WP8286642 Whirlpool Tape
Wire, 25“ Roll (White 14 GA.)
WP3400015 Whirlpool Screw
WPL ARI121218A
8285996 Whirlpool Wire Harness
Harness Conduit
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
18 Ga. 80~c Rating (Red)
1INSTALLATION INSTRUCTIONS
1Use & Care Guide
1Installation Instructions (Undercounter Oven)
1Wiring Diagram
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
2Cooktop, Glass (Black)
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Designer White)
3WP486754 Whirlpool Compactor Screw
4W10491985 Whirlpool Screw
4Bracket, Switch Mounting
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823698 Whirlpool Surface Element Right Rear
5W10823696 Whirlpool Radiant Surface Element
69759094 Whirlpool Spring
7WP3191050 Whirlpool Infinite Switch
7WP4454541 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
93193012 Whirlpool Oven Indicator Light
108286043WH Whirlpool Knob
108286043BT Whirlpool Knob
10WP8286043BL Whirlpool Knob
11GROMMET, FLEXIBLE
12Box, Burner
13W10491984 Whirlpool Switch Seal
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
17WP486579 Whirlpool Air Conditioner Screw
188186533 Whirlpool Hardware
19WP3400093 Whirlpool Screw
20Rail, Element (3)
