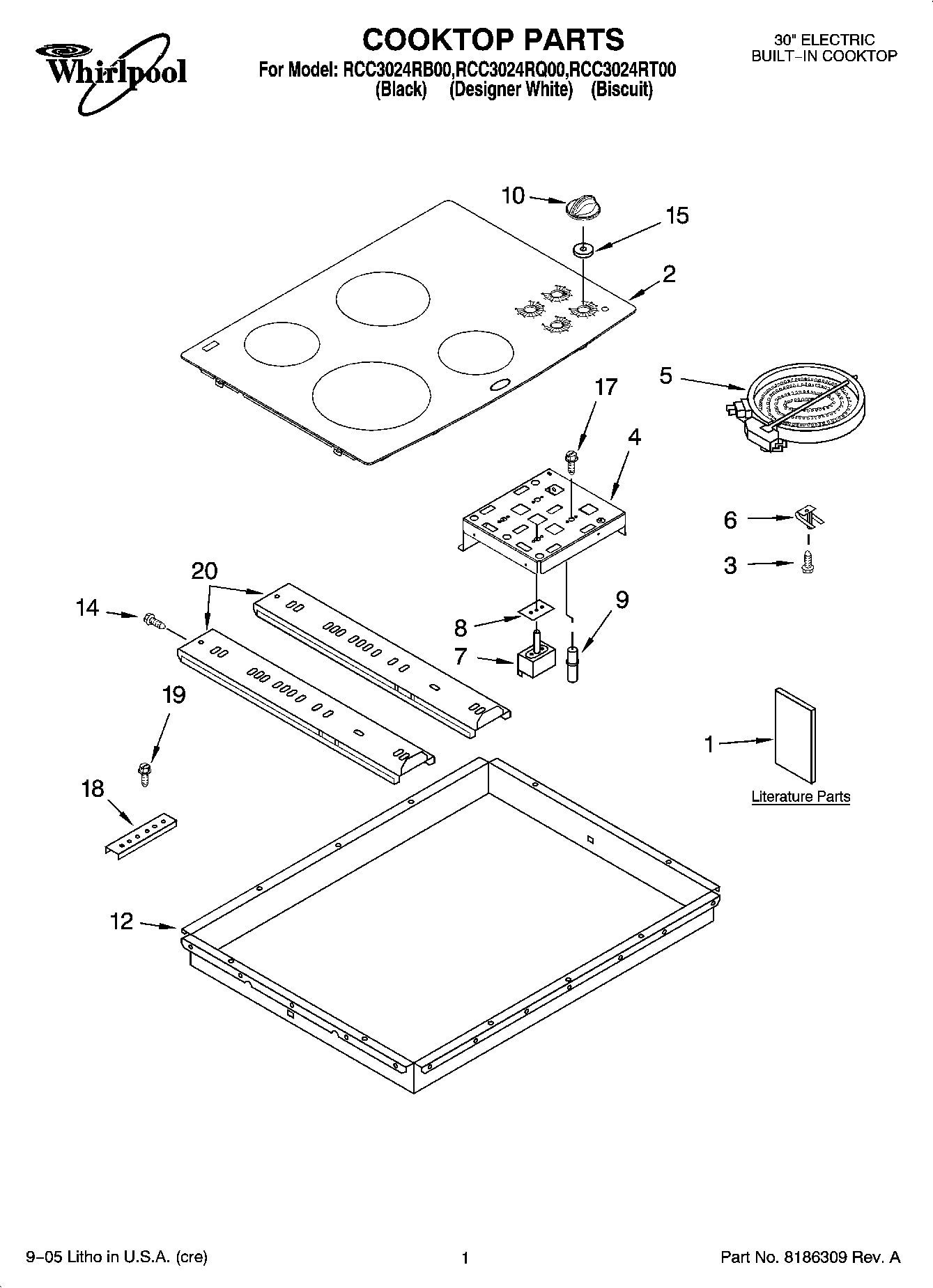

RCC3024RQ00 01 – COOKTOP PARTS, OPTIONAL PARTS
Written by
in
RCC3024RQ00 01 – COOKTOP PARTS, OPTIONAL PARTS
Products
Position
Product
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
8285996 Whirlpool Wire Harness
WPL ARI121223A
4455364 Whirlpool Oven Support Bracket
Harness Conduit
Hardware Asm.
Wire (14 Ga. 150 c Green)
WPL ARI121224A
WP3400015 Whirlpool Screw
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WPL ARI121226A
WPL ARI121225A
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
242831 Whirlpool Oven Wire
Wire, 25` Roll (Black 14 Ga.)
1
Use & Care Guide
1
Wiring Diagram
1
Safe Cooking Tips (French)
1
Safe Cooking Tips
1
INSTALLATION INSTRUCTIONS
2
Cooktop, Glass (Black)
2
Cooktop, Glass (Designer White)
2
Cooktop, Glass (Biscuit)
3
WP486754 Whirlpool Compactor Screw
4
Bracket, Switch Mounting
4
W10491985 Whirlpool Screw
5
W10823711 Whirlpool Surface Element Left Front and Right Rear
5
W10823698 Whirlpool Surface Element Right Rear
5
W10823696 Whirlpool Radiant Surface Element
6
9759094 Whirlpool Spring
7
WP4454541 Whirlpool Infinite Switch
7
WP3191049 Infinite Switch Left Rear Right Front
7
WP3191050 Whirlpool Infinite Switch
8
3183956 Whirlpool Oven Seal Switch
9
Light, Indicator
10
8286043WH Whirlpool Knob
10
8286043BT Whirlpool Knob
10
WP8286043BL Whirlpool Knob
12
Box, Burner
14
WP3196557 Whirlpool Screw
15
8285469 Whirlpool Oven Seal Switch
17
WP486579 Whirlpool Air Conditioner Screw
18
8186533 Whirlpool Hardware
19
WP3400093 Whirlpool Screw
20
Rail, Element (2) (Side (3))
←
