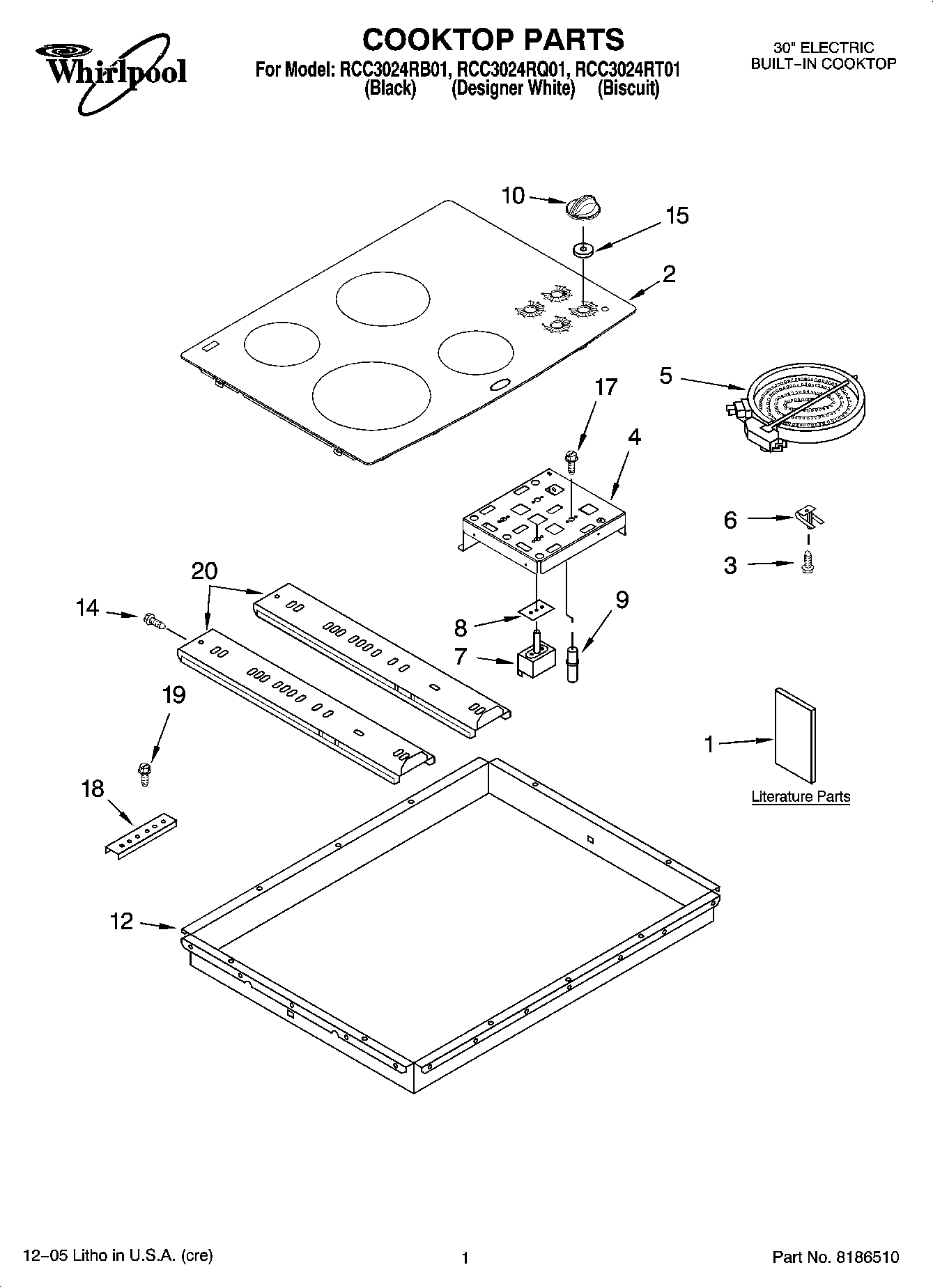

RCC3024RQ01 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	8285996 Whirlpool Wire Harness
	4455364 Whirlpool Oven Support Bracket
	Hardware Asm.
	Wire (14 Ga. 150 c Brown)
	Harness Conduit
	W10491984 Whirlpool Switch Seal
	WPL ARI121231A
	WP3400015 Whirlpool Screw
	WPL ARI121230A
	WPL ARI121229A
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL ARI121228A
	WPL ARI121227A
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1	Use & Care Guide
1	INSTALLATION INSTRUCTIONS
1	Wiring Diagram
1	Safe Cooking Tips (French)
1	Safe Cooking Tips
2	Cooktop, Glass (Biscuit)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
4	W10491985 Whirlpool Screw
5	W10823696 Whirlpool Radiant Surface Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
5	W10823698 Whirlpool Surface Element Right Rear
6	9759094 Whirlpool Spring
7	WP4454541 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
7	WP3191050 Whirlpool Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
9	3193012 Whirlpool Oven Indicator Light
10	WP8286043BL Whirlpool Knob
10	8286043BT Whirlpool Knob
10	8286043WH Whirlpool Knob
12	Box, Burner
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	8186533 Whirlpool Hardware
19	WP3400093 Whirlpool Screw
20	Rail, Element (2)
