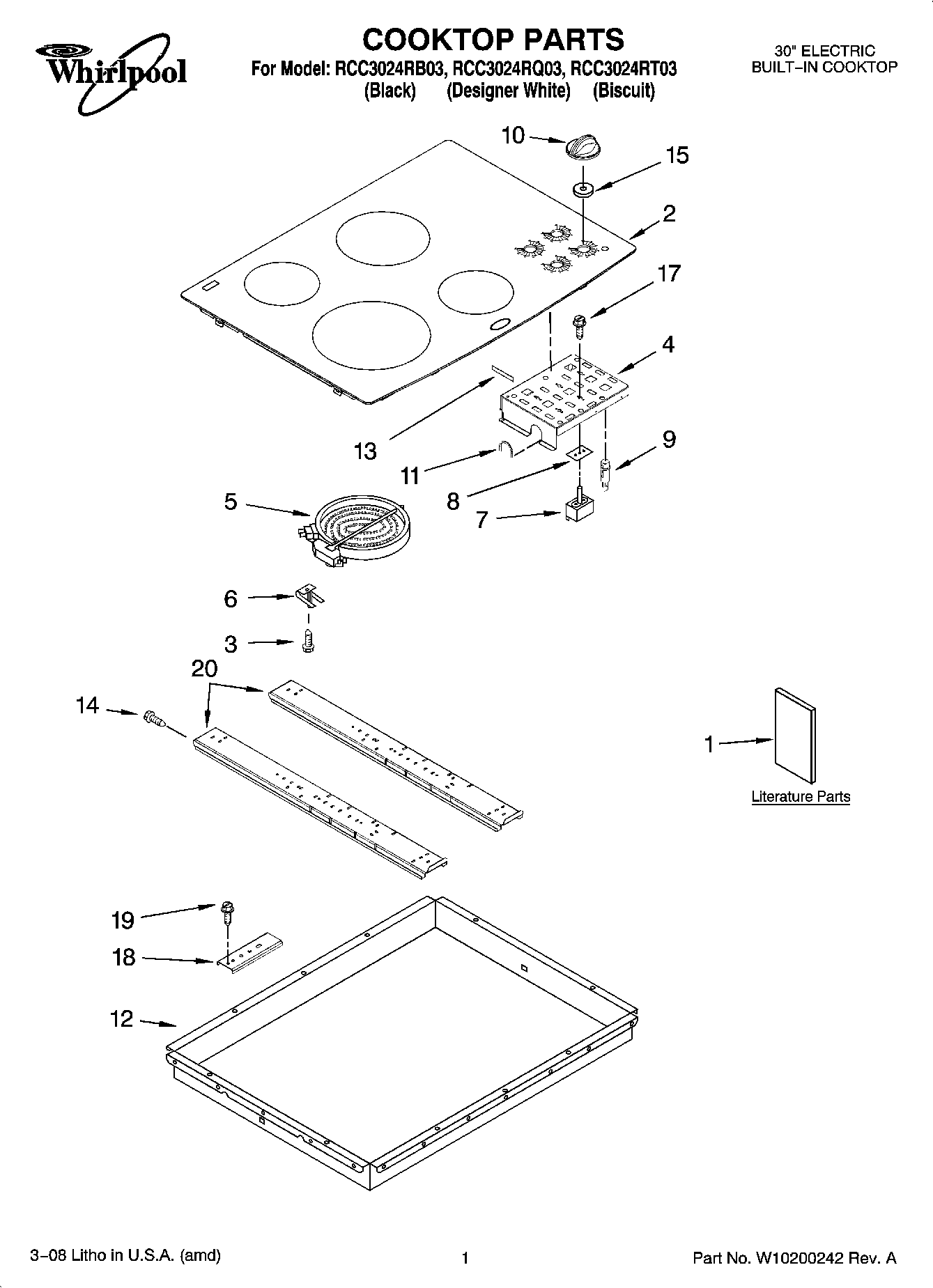

RCC3024RQ03 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Brown)
	1
	WPL ARI121238A
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 200 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	WPL ARI121239A
	WP8286642 Whirlpool Tape
	Wire, 25“ Roll (White 14 GA.)
	WP3400015 Whirlpool Screw
	WPL ARI121240A
	8285996 Whirlpool Wire Harness
	Harness Conduit
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	18 Ga. 80~c Rating (Red)
1	INSTALLATION INSTRUCTIONS
1	Use & Care Guide
1	Installation Instructions (Undercounter Oven)
1	Wiring Diagram
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
2	Cooktop, Glass (Designer White)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Biscuit)
3	WP486754 Whirlpool Compactor Screw
4	W10491985 Whirlpool Screw
4	Bracket, Switch Mounting
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
5	W10823698 Whirlpool Surface Element Right Rear
5	W10823696 Whirlpool Radiant Surface Element
6	9759094 Whirlpool Spring
7	WP3191050 Whirlpool Infinite Switch
7	WP4454541 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
8	3183956 Whirlpool Oven Seal Switch
9	3193012 Whirlpool Oven Indicator Light
10	8286043WH Whirlpool Knob
10	8286043BT Whirlpool Knob
10	WP8286043BL Whirlpool Knob
11	GROMMET, FLEXIBLE
12	Box, Burner
13	W10491984 Whirlpool Switch Seal
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	8186533 Whirlpool Hardware
19	WP3400093 Whirlpool Screw
20	Rail, Element (3)
