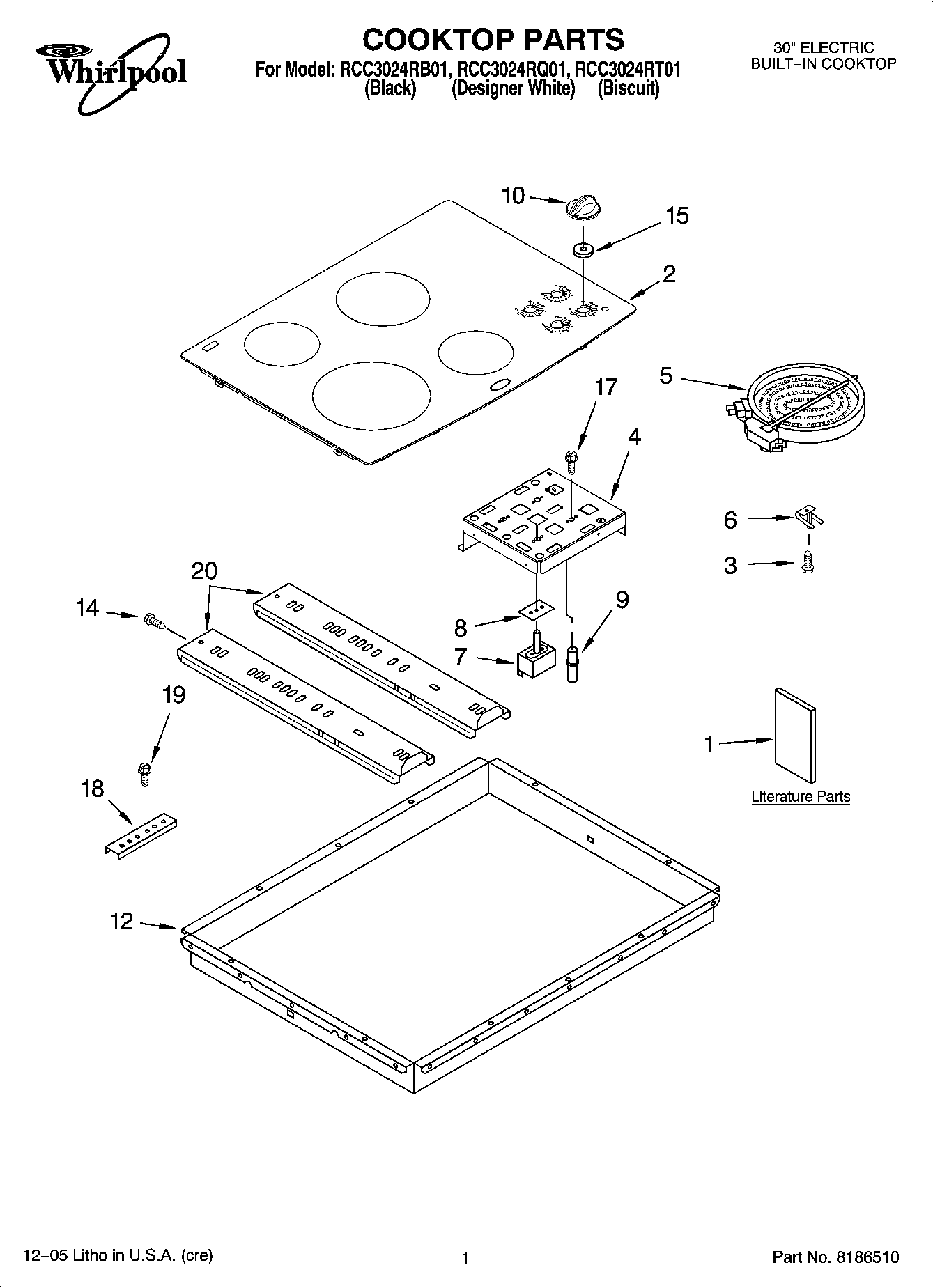

RCC3024RT01 01 – COOKTOP PARTS, OPTIONAL PARTS
Written by
in
RCC3024RT01 01 – COOKTOP PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI121250A
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI121251A
Hardware Asm.
4455364 Whirlpool Oven Support Bracket
8285996 Whirlpool Wire Harness
Harness Conduit
WPL ARI121247A
WPL ARI121248A
WPL ARI121249A
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
W10491984 Whirlpool Switch Seal
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WP3400015 Whirlpool Screw
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
1
Use & Care Guide
1
Wiring Diagram
1
INSTALLATION INSTRUCTIONS
1
Safe Cooking Tips (French)
1
Safe Cooking Tips
2
Cooktop, Glass (Designer White)
2
Cooktop, Glass (Black)
2
Cooktop, Glass (Biscuit)
3
WP486754 Whirlpool Compactor Screw
4
Bracket, Switch Mounting
4
W10491985 Whirlpool Screw
5
W10823696 Whirlpool Radiant Surface Element
5
W10823698 Whirlpool Surface Element Right Rear
5
W10823711 Whirlpool Surface Element Left Front and Right Rear
6
9759094 Whirlpool Spring
7
WP3191050 Whirlpool Infinite Switch
7
WP4454541 Whirlpool Infinite Switch
7
WP3191049 Infinite Switch Left Rear Right Front
8
3183956 Whirlpool Oven Seal Switch
9
3193012 Whirlpool Oven Indicator Light
10
8286043BT Whirlpool Knob
10
WP8286043BL Whirlpool Knob
10
8286043WH Whirlpool Knob
12
Box, Burner
14
WP3196557 Whirlpool Screw
15
8285469 Whirlpool Oven Seal Switch
17
WP486579 Whirlpool Air Conditioner Screw
18
8186533 Whirlpool Hardware
19
WP3400093 Whirlpool Screw
20
Rail, Element (2)
←
