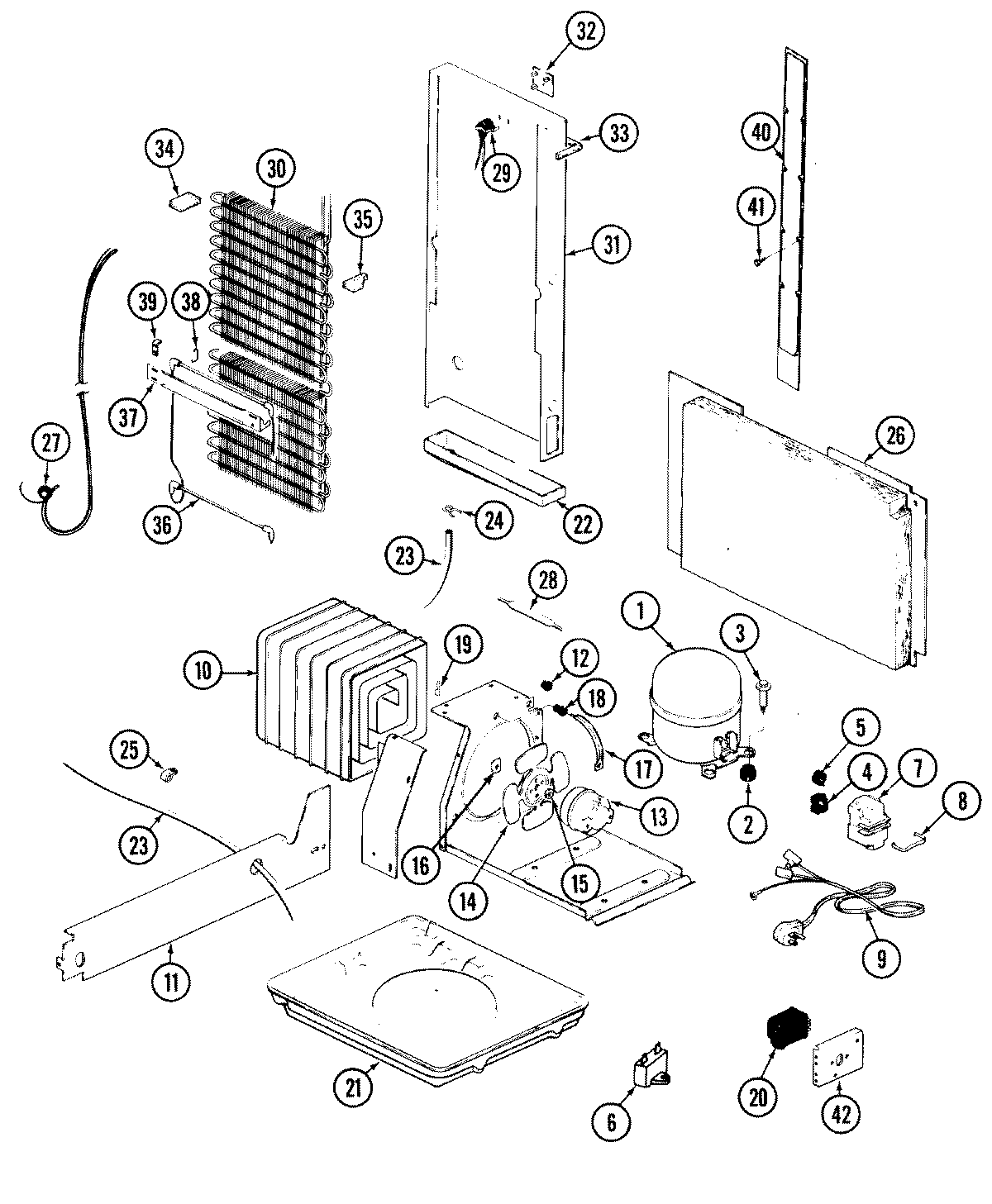

RCE224TDM 08 – UNIT COMPARTMENT & SYSTEM

Products

Position	Product
NI	MAY 108429-3
1	MAY 12000058
2	MAY 17245-4
3	MAY 69062-1
3	MAY 65275-9
4	MAY 66588-5
5	MAY 65887-1
5	MAY 69105-8
6	WPW10662129 Whirlpool Refrigerator Run Capacitor
7	MAY 66589-2
8	MAY 65886-1
9	MAY 52890-2
10	MAY 60408-2
10	MAY 400062-1
10	MAY 64998-1
11	WP488729 Whirlpool Refrigerator Door Screw
11	MAY 70362-1
12	MAY 53351-1
13	833697 Whirlpool Condenser Fan Motor
13	MAY 65275-33
14	WP12587601 Whirlpool Refrigerator Condenser Blade
15	MAY 19913-2
16	MAY 55042-1
17	MAY 69181-1
18	MAY 56933-1
19	MAY 57051-1
20	WP68233-3 Whirlpool Refrigerator Defrost Timer
20	MAY 405007-1
21	MAY 68236-1
22	MAY 53523-1
23	MAY 26911-18
24	WP596669 Whirlpool Hose Clamp
25	MAY 53516-5
26	MAY 66339-3
27	MAY 65013-16
27	MAY 26088-22
28	MAY 13900
29	MAY 52085-29
30	MAY 52551-21
31	MAY 68834-2
32	MAY 55878-1
33	MAY 66325-18
34	MAY 65063-1
35	MAY 65064-1
36	MAY 69848-1
37	MAY 29915-13
38	MAY 52067-1
39	MAY 70266-1
39	MAY 52561-1
40	MAY 66381-1
42	MAY 29282-2
42	WP489478 Whirlpool Refrigerator Screw
