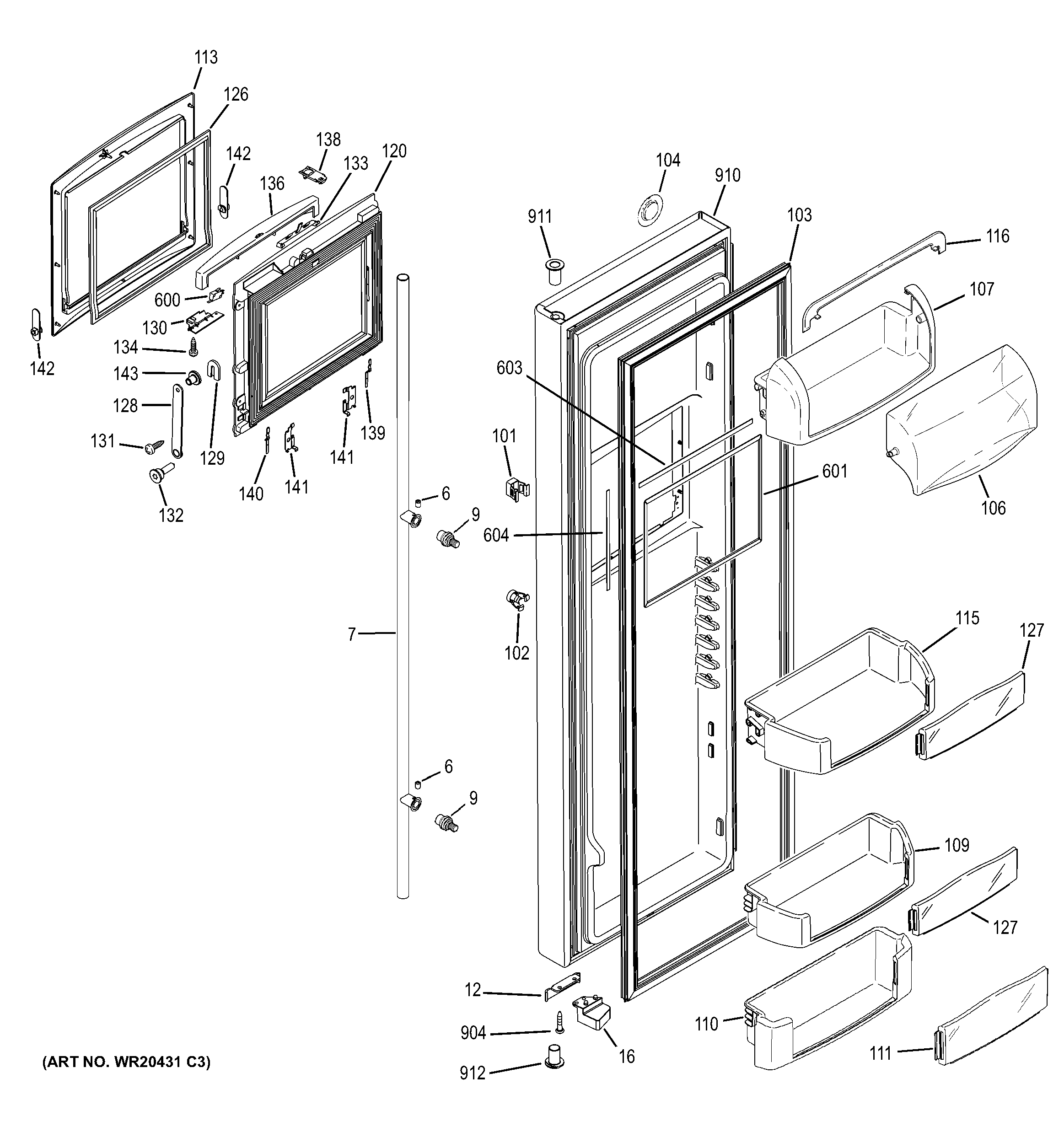

RCE24KHBBFSS FRESH FOOD DOOR

Products

Position	Product
6	WR01X10496 GE 3-32 x 1/4 Set Screw
7	WR12X11017 GE Refrigerator Handle Assembly
9	WR02X12028 GE Refrigerator Stainless Steel Handle Screw Fastener
12	WR02X13425 GE Refrigerator Door Stop
16	WR02X10779 GE Refrigerator Door Closure Cam
101	WR02X10040 GE Refrigerator Rectangular Fastener
102	WR02X12272 GE Tubular Fastener
103	GEN WR24X10257
104	BADGE GE
106	WR22X10042 GE Refrigerator Clear Dairy Door
107	WR22X10041 GE Refrigerator Dairy Compartment
109	WR71X10979 GE Refrigerator Module Shelf Fresh Food
110	WR71X10297 GE Refrigerator Shelf Module
111	WR71X10788 GE Refrigerator Fixed Insert Module
113	GEN WR38X10434
115	WR71X10973 GE Refrigerator Door Shelf Bin
116	WR22X10043 GE Refrigerator Trim Dairy Compartment
120	GEN WR17X12534
126	GEN WR24X10086
127	WR71X10764 GE Door Shelf Insert Module
128	WR13X10005 GE Refrigerator Hinge Arm
129	WR02X10035 GE Hinge Cap Arm
130	WR02X10032 GE Refrigerator Bracket Side CMK
131	SCR 10-24 TX 11/16
132	WR02X10037 GE Refrigerator Stop Hinge Arm
133	WR02X10033 GE Refrigerator Door Trigr CMK
134	WR01X10616 GE Refrigerator Screw 6-10 PL FLP 1/2 S
136	GEN WR12X10438
138	WR02X10840 GE Refrigerator Door Latch
139	GEN WR02X10038
140	GEN WR02X10039
141	GEN WR01X10017
141	GEN WR01X10018
142	GEN WR02X10045
143	WR02X10041 GE Arm Hinge Stud
600	WR23X10027 GE Refrigerator Micro Switch
601	WR02X11459 GE Inner Door Trim Assembly
603	WR02X11483 GE Foam Tape
604	WR02X11484 GE Foam Tape Short
904	WR01X10611 GE Screw
910	GEN WR78X12626
911	WR01X10956 GE Door Thimble
912	WR01X10232 GE Refrigerator Door Thimble
