RCE24VGBBFSS ICE MAKER & DISPENSER

RCE24VGBBFSS ICE MAKER & DISPENSER

Written by

in

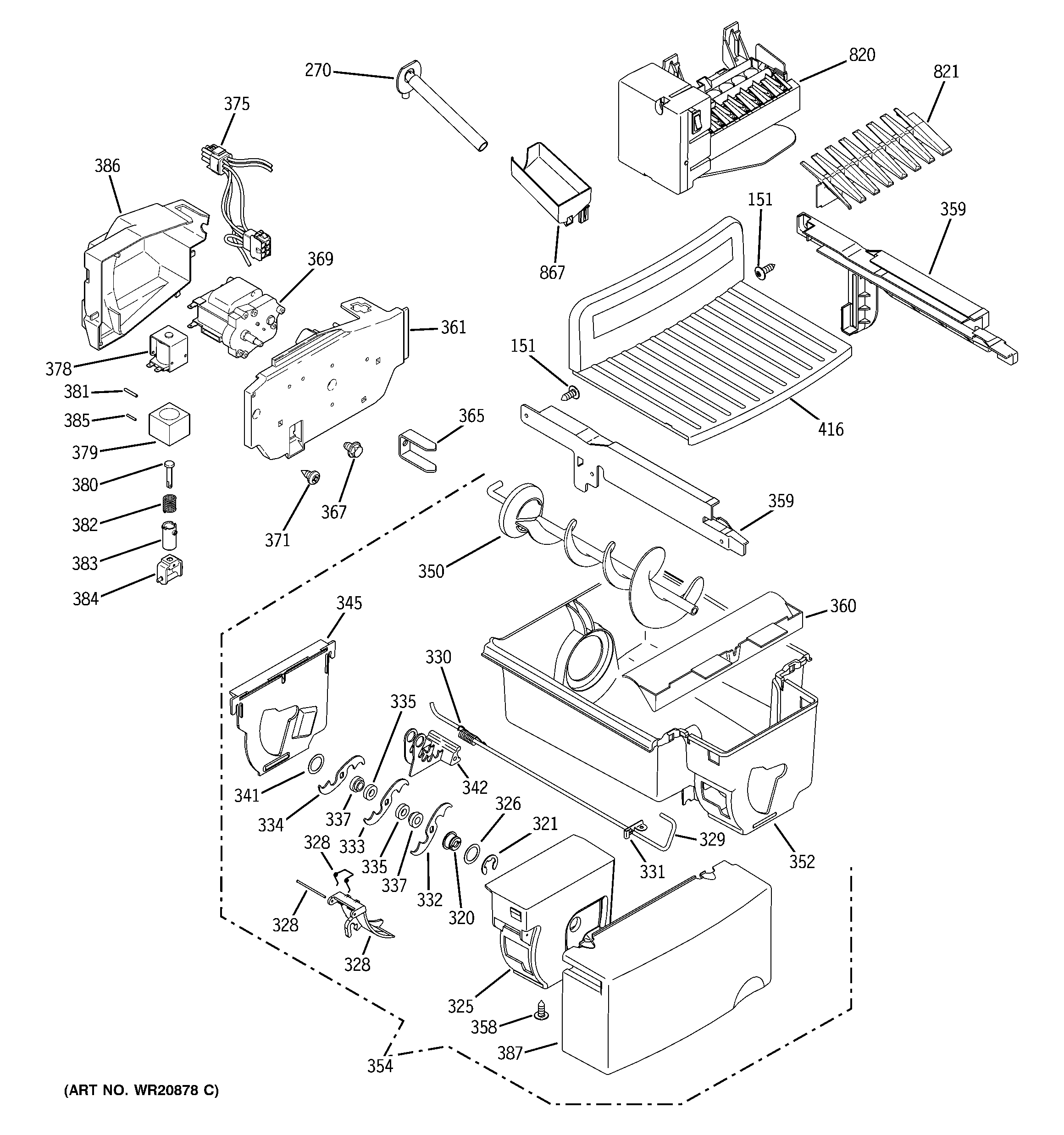

RCE24VGBBFSS ICE MAKER & DISPENSER

Products

PositionProduct
151WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
270WR17X11168 GROMMET AND TUBE ASM
320WR01X10315 GE Refrigerator Auger Nut
321WR1X1367D GE Refrigerator Return Package 12
325WR17X11505 GE Refrigerator Housing Crusher
326GEN WR01X1366
328GEN WR02X4561
328WR17X10703 GE Refrigerator Deflector
328WR2X4143 GE Refrigerator Pivot
329WR17X10931 GE Refrigerator Wire Actuator Display
330WR02X11768 GE Refrigerator Internal Spring Deflector
331WR02X10580 GE Refrigerator Retainer Spring
332WR17X11239 GE Refrigerator Blades Moving Dispenser
333WR17X11240 GE Dispensing Moving Blades
334WR17X11241 GE Refrigerator Blades Moving Dispenser
335GEN WR02X4139
337WR2X4138 GE Refrigerator Spacer
341WR29X10045 GE Refrigerator Washer Crusher Blade
342WR02X10691 GE Refrigerator STATIONARY Blades Assembly
345WR17X11497 GE Refrigerator Ice Dispenser Crusher Cover
350BUCKET AUGER
352WR30X10055 GE Refrigerator Bucket Ice Dispenser
354WR29X42876 GE Ice Bucket Assembly
358WR01X10607 GE Scraper 8-18 Ab Phr 1/2 S
359WR72X10415 GE Refrigerator Glide Bucket Right Hand Dispenser
359WR72X10414 GE Refrigerator Left Hand Dispenser Glide Bucket
360WR17X11449 GE Refrigerator Diverter Overflow
361WR17X12323 GE Refrigerator Back Motor Cover
365DRIVE AUGER DISP
367WR01X10618 GE Refrigerator Screw 8-18 TPT 1/4
369GEN WR60X10295
371WR01X10619 GE Refrigerator Screw
375GEN WR23X10732
378WR62X10096 GE Crusher Solenoid Assembly
381WR62X23154 GE Refrigerator Ice Dispenser Solenoid Kit
382WR62X26536 GE Refrigerator Armature Kit
386WR02X12491 GE Refrigerator Auger Motor Cover
387COVER BUCKET DISP
416GEN WR71X11037
820WR30X28684 GE Ice Maker
821WR29X10085 GE Ice Stripper
867WR29X10109 GE Refrigerator Water Fill Cup
