RCE24VGBBFWW FREEZER DOOR

RCE24VGBBFWW FREEZER DOOR

Written by

in

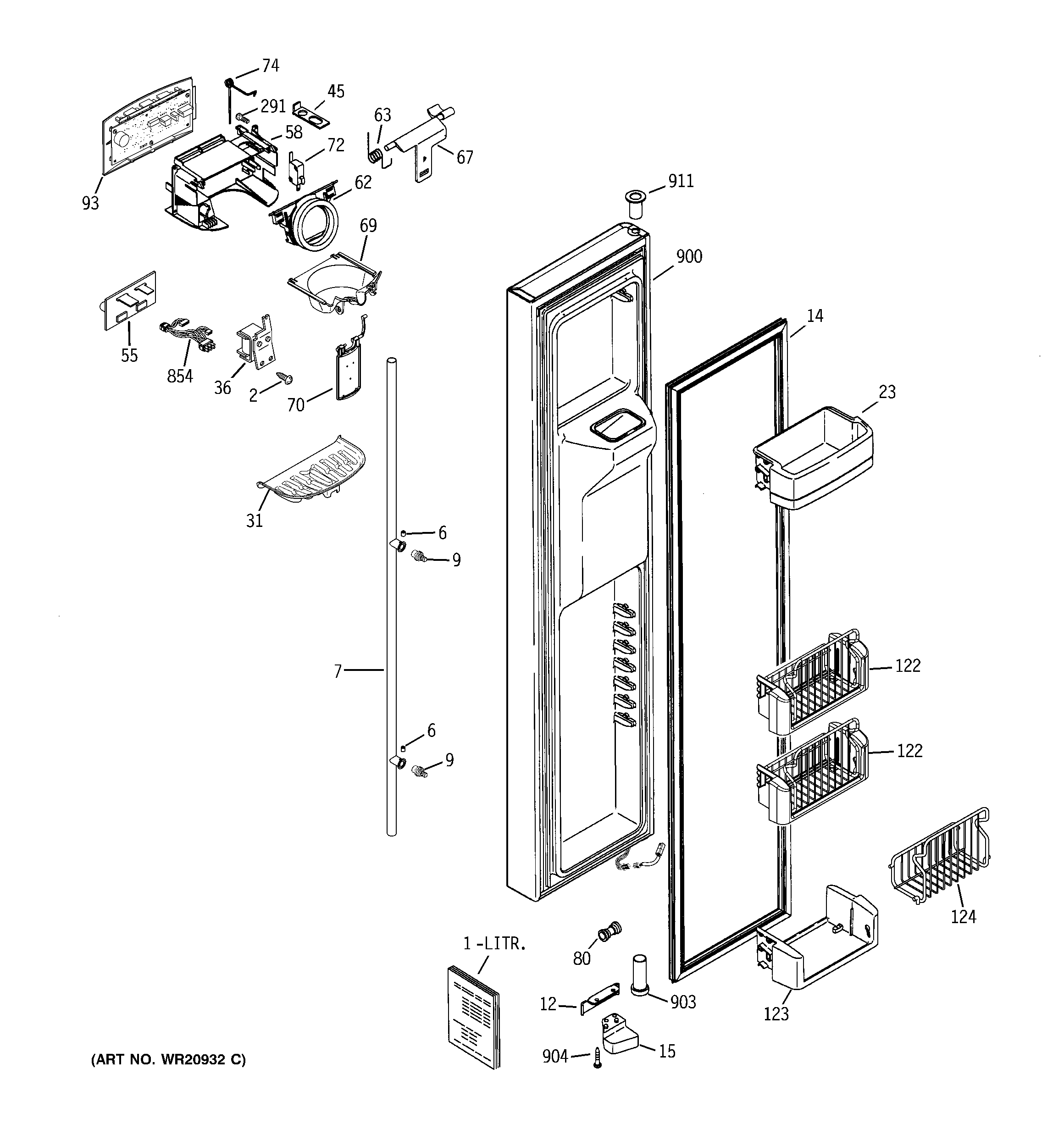

RCE24VGBBFWW FREEZER DOOR

Products

Position	Product
1	GEN 31-46252
1	GEN 49-60659
2	WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
6	WR01X10496 GE 3-32 x 1/4 Set Screw
7	WR12X11017 GE Refrigerator Handle Assembly
9	WR02X12028 GE Refrigerator Stainless Steel Handle Screw Fastener
12	WR02X13424 GE Refrigerator Door Stop
12	WR02X13425 GE Refrigerator Door Stop
14	WR24X20455 GE Refrigerator Freezer Door Gasket
14	WR24X10156 GE Refrigerator Door Gasket White
15	WR02X10638 GE Refrigerator Cam Closure
15	WR02X10780 GE Refrigerator Cam Closure
23	GEN WR71X10355
31	WR17X12884 GE Refrigerator Grille Recess
31	WR17X12873 GE Refrigerator Grille Recess
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
55	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58	WR17X12489 GE Refrigerator Dispenser Housing Shield
58	GEN WR17X12487
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X12983 GE Refrigerator Ice Dispenser Funnel
70	GEN WR17X13055
70	PADDLE ASM
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	WR02X12256 GE Refrigerator Torsion Spring
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93	GEN WR55X10950
93	WR55X10946 GE Refrigerator Dispenser Control Assembly
122	GEN WR71X11039
123	GEN WR71X10358
124	WR21X10111 GE Refrigerator Basket Wire TILTOUT
291	WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
854	WR23X10665 GE Dispenser Recess Harness
900	GEN WR78X12866
900	GEN WR78X12864
903	WR01X10208 GE Refrigerator Door Thimble
903	WR01X10234 GE Freezer Bottom Thimble Door (Black)
904	WR01X10611 GE Screw
911	WR01X10956 GE Door Thimble
911	WR01X10955 GE Refrigerator Door Thimble
