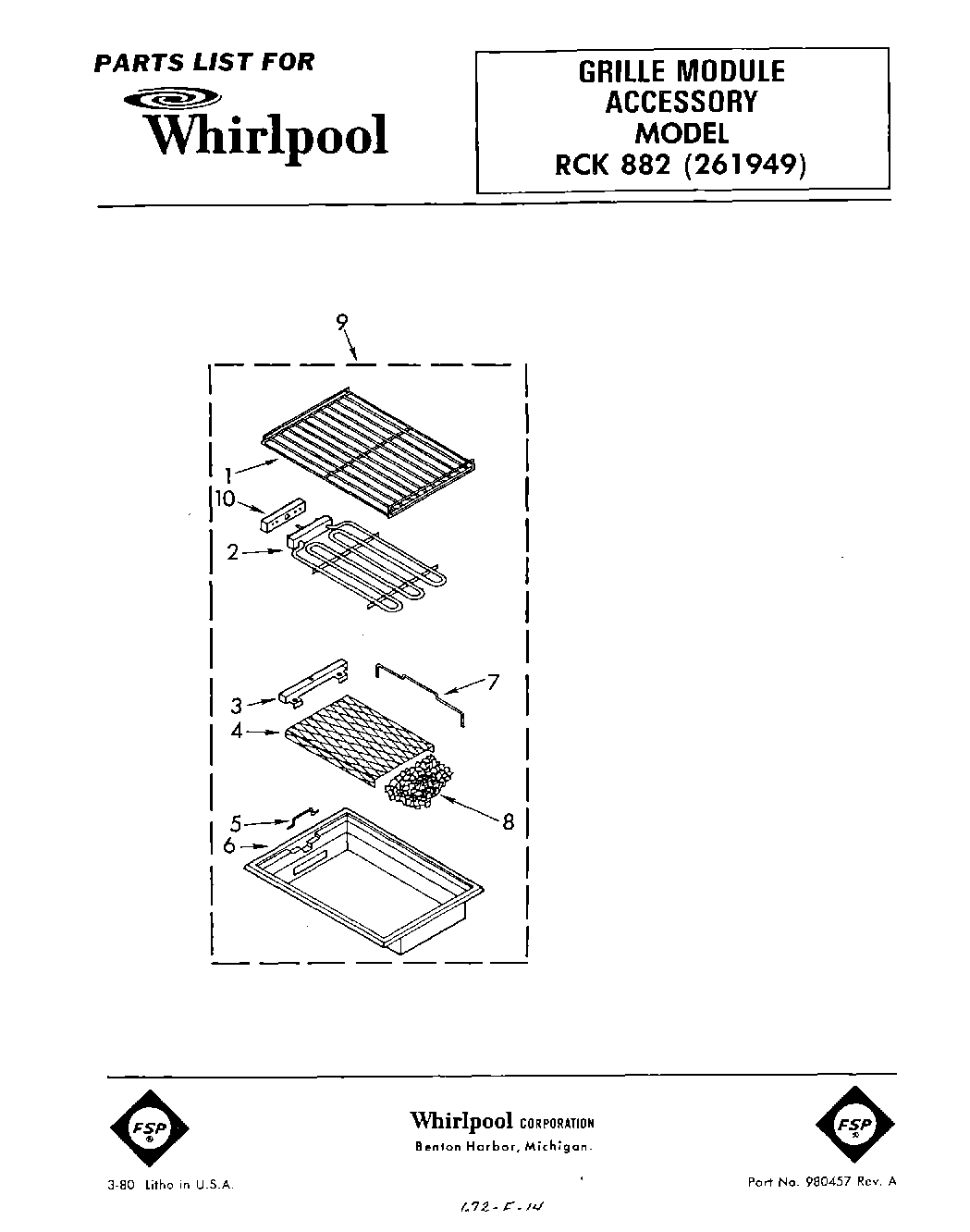

| 1 | Grate, Grille |
| 2 | Element, Grille (Includes Illus. 10) |
| 3 | Cam, Door Latch (Pushnut, 3/16``) |
| 3 | End Cap, Basket |
| 4 | Basket, Rack |
| 5 | Lifter, Griddle |
| 6 | Pan, Grille |
| 7 | Handle, Rock Basket |
| 8 | Rocks, Lava (1 Lb.) |
| 9 | Kit, Grille Module (Complete) |
| 10 | Receptacle, Male |
| 10 | Pushnut |
