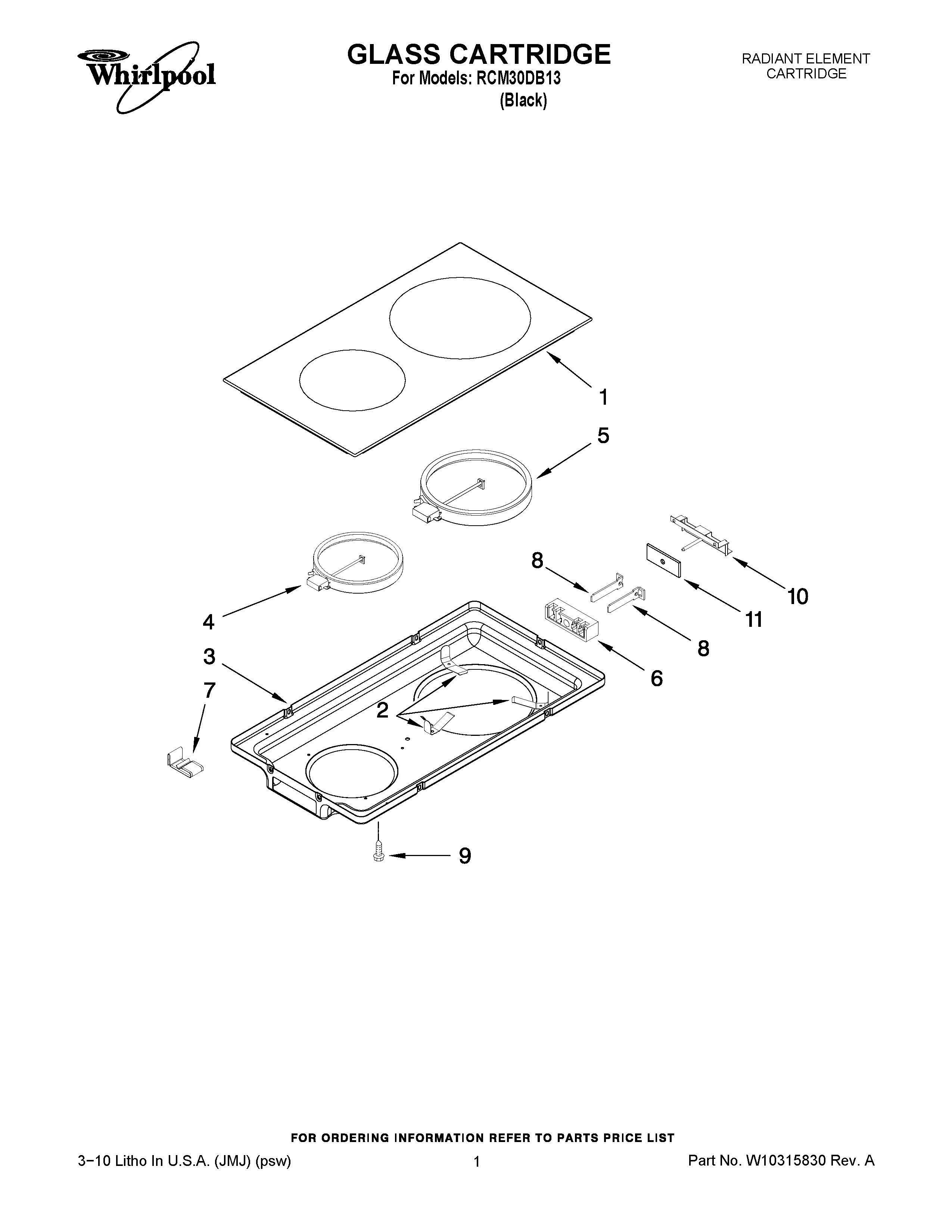

RCM30DB13 01 – GLASS CARTRIDGE

Products

PositionProduct
1GLASS/FRAME ASSY.
2SUPPORT, ELEMENT
3PAN, CARTRIDGE
4ELEMENT (6“)
5ELEMENT (8“)
6BLOCK, TERMINAL
7CLIP
8SPADE, CONTACT
9SCREW
10BRKT, RETAINING
11INSULATOR, CONTACT SPADE
