RCS2002GS0 01 – SECTION

RCS2002GS0 01 – SECTION

Written by

in

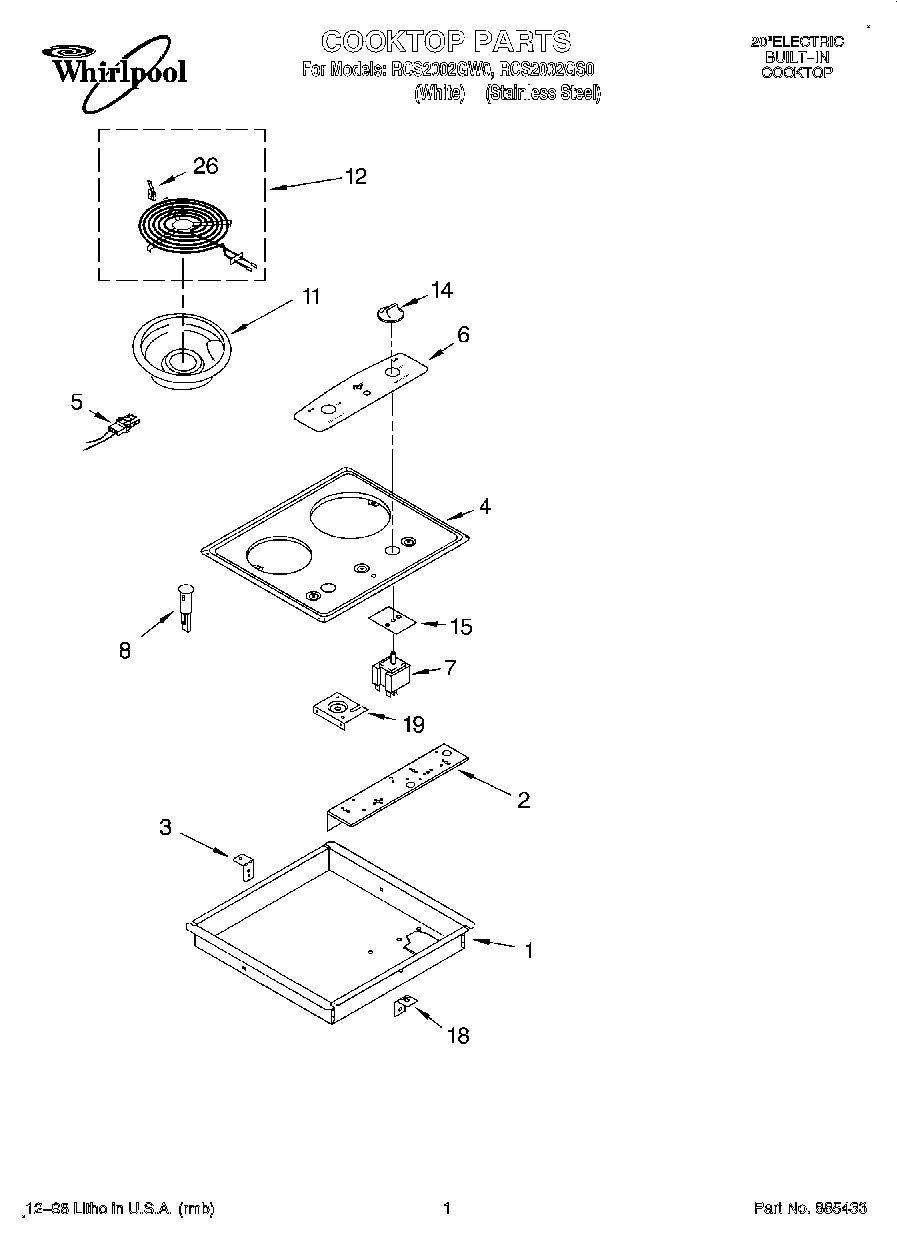

RCS2002GS0 01 – SECTION

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
3184020 Whirlpool Oven Wire
Literature Parts (Wire Diagram)
Use & Care Guide
Grommet
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Cord, Power
Harness, Wire (Light)
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
Harness, Wiring (Main)
16515 Whirlpool Clip
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Blue)
WPL LIT3191538
1Burner Box
2Screw
2Bracket, Switch Mounting
33192454 Whirlpool Oven Mounting Bracket
3WP3196557 Whirlpool Screw
4Cooktop (Stainless Steel)
4Cooktop (White)
5814399 Whirlpool Receptacle Kit
6Panel, Control
7Switch Infinite (Use W/8“ Element (Yellow Shaft))
7Switch Infinite (Screw)
7WP3191471 Whirlpool Infinite Switch
8Light, Indicator
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12Element, Surface (8“)
12WP3191460 Whirlpool Surface Element
14WP3196231 Whirlpool Knob
153183956 Whirlpool Oven Seal Switch
18Bracket, Installation
19Cover, Conduit
26WP3195917 Whirlpool Clip Assembly
