RCS2002GS1 01 – SECTION

Products

Position	Product
	Wire, 25“ Roll (White 14 GA.)
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Use & Care Guide
	Installation Instructions
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
	Harness, Wire (Light)
	Harness, Wiring (Main)
	W10491985 Whirlpool Screw
	Cord, Power
	3184020 Whirlpool Oven Wire
	WP12990527 Whirlpool Microwave Screw
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Literature Parts (Wire Diagram)
	Grommet

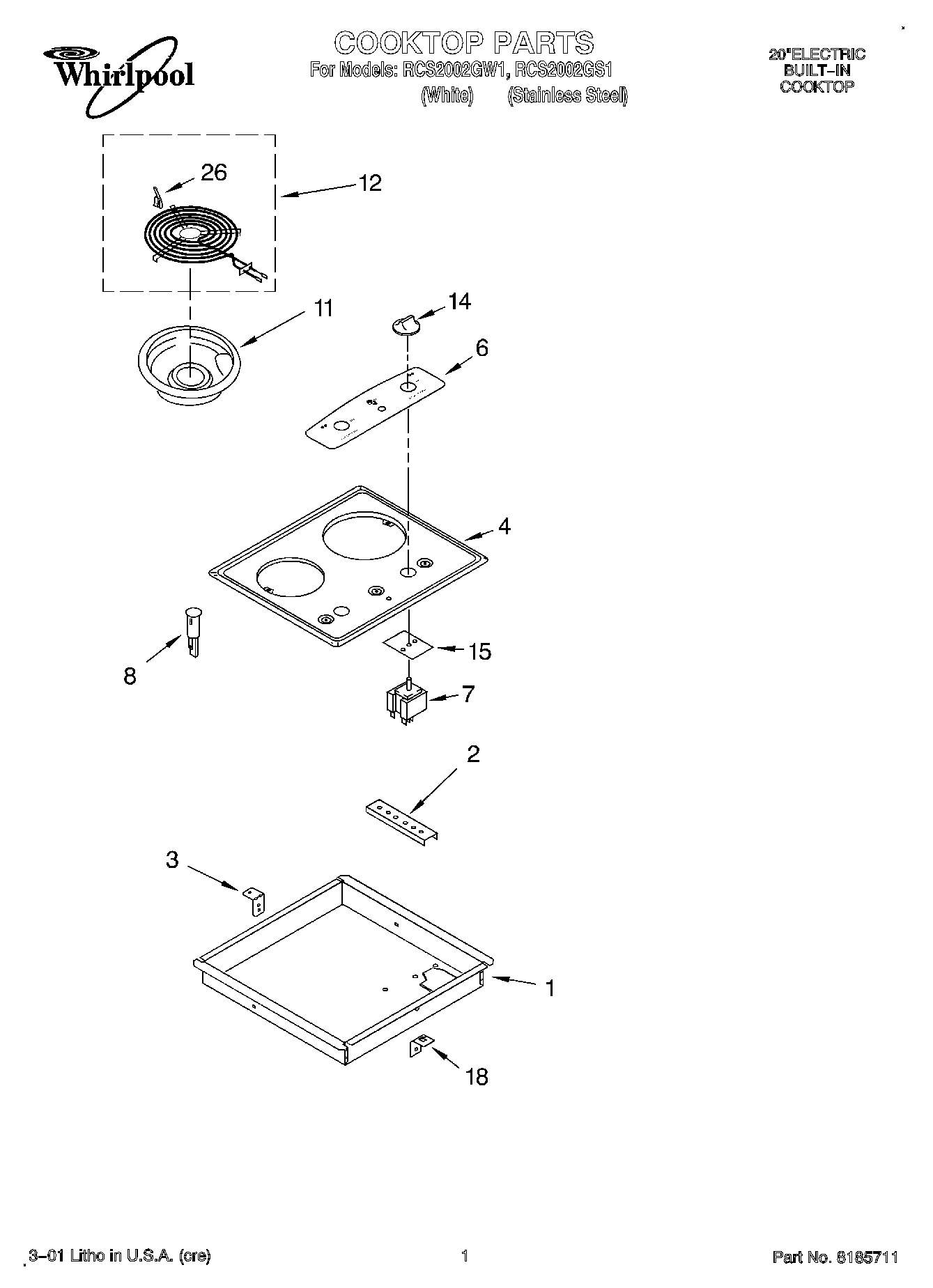

1	Burner Box
2	Nut, Tinnerman (2)
2	Screw
2	8186533 Whirlpool Hardware
3	3192454 Whirlpool Oven Mounting Bracket
3	WP3196557 Whirlpool Screw
4	Cooktop (Stainless Steel)
4	Cooktop (White)
6	Panel, Control
7	3400855 Whirlpool Oven Screw
7	Switch Infinite (Use W/8“ Element (Yellow Shaft))
7	WP3191472 Whirlpool Infinite Switch
8	Light, Indicator
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	WP3191460 Whirlpool Surface Element
12	Element, Surface (8“)
14	WP3196231 Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
18	Screw, 10-24 x 2.5
18	Bracket, Installation
26	WP3195917 Whirlpool Clip Assembly
