RCS2002LS0 01 – SECTION

Products

Position	Product
	Harness, Wire (Light)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	3184020 Whirlpool Oven Wire
	4455805 Whirlpool Oven Grommet
	Installation Instructions
	Use & Care Guide
	Harness, Wiring (Main)
	Literature Parts (Wire Diagram)
	Cord, Power
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WP3400015 Whirlpool Screw
	WP12990527 Whirlpool Microwave Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	W10491985 Whirlpool Screw
	16515 Whirlpool Clip
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)

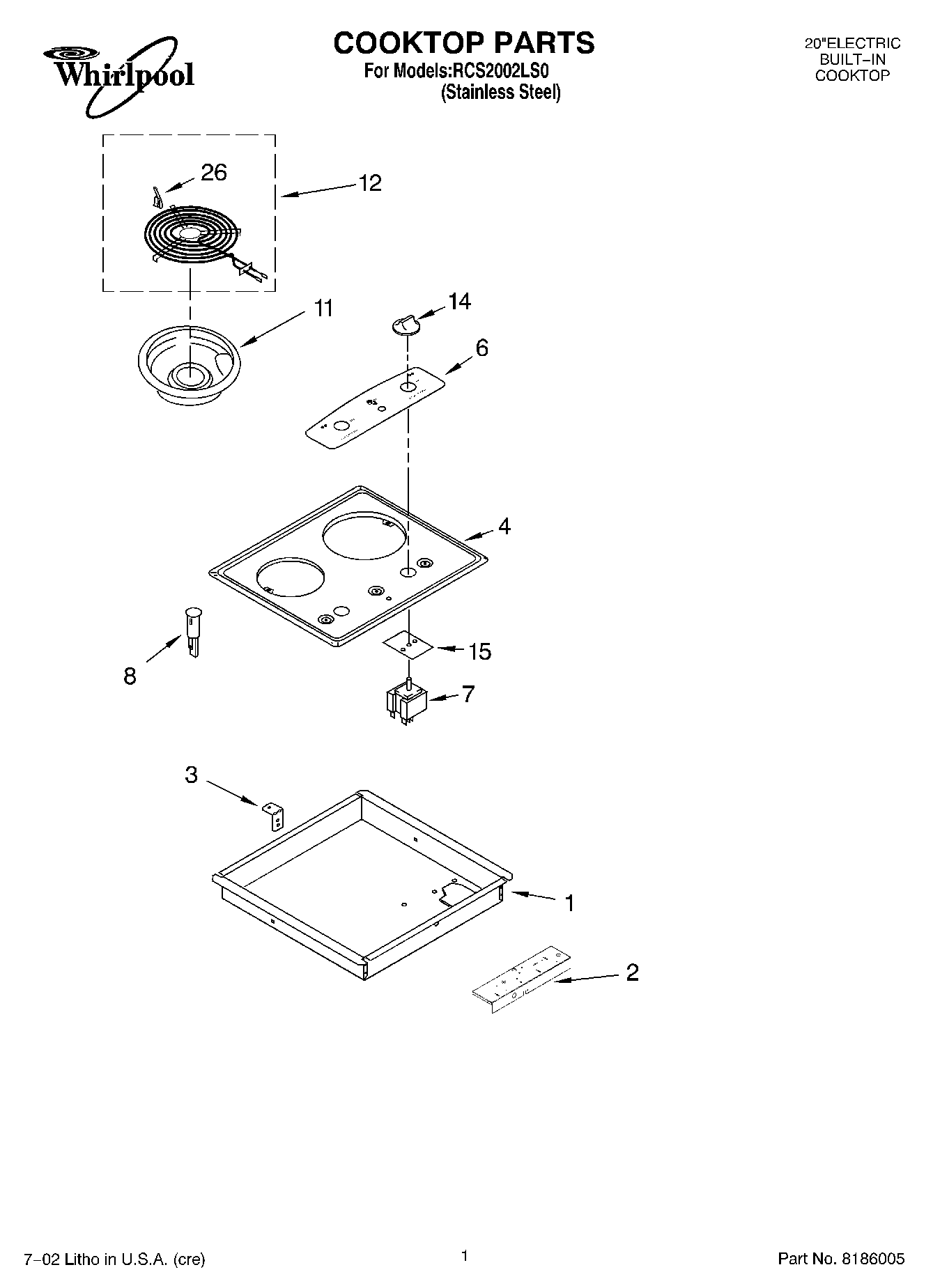

1	Burner Box
2	WP3177991 Whirlpool Screw
2	Vent, Middle Trim
3	3192454 Whirlpool Oven Mounting Bracket
3	WP3196557 Whirlpool Screw
4	Cooktop (Stainless Steel)
6	Panel, Control
7	3400855 Whirlpool Oven Screw
7	WP3191472 Whirlpool Infinite Switch
7	Switch Infinite (Use W/8“ Element (Yellow Shaft))
8	Light, Indicator
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	WP3191460 Whirlpool Surface Element
12	Element, Surface (8“)
14	WP8522566 Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
26	WP3195917 Whirlpool Clip Assembly
