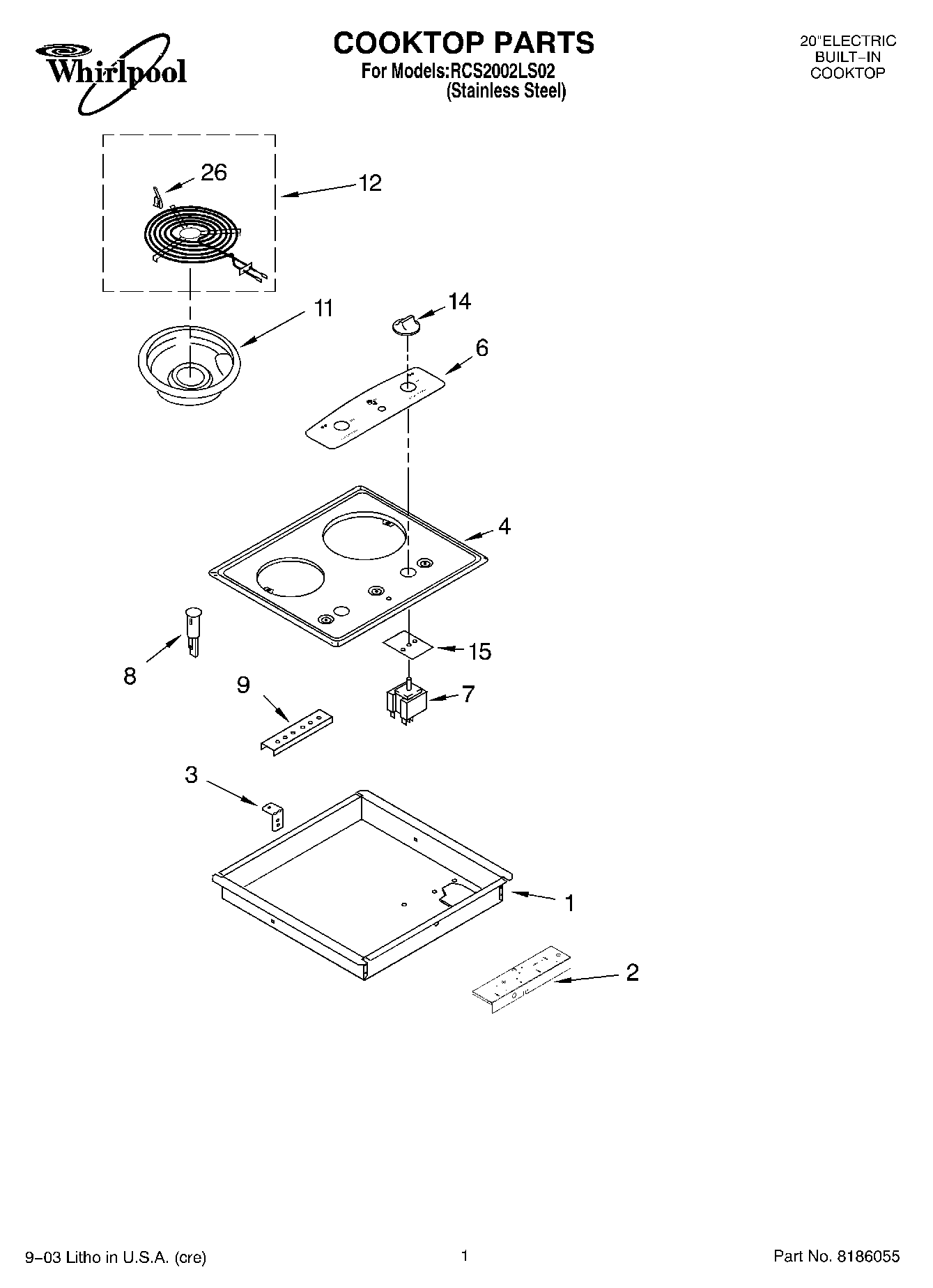

RCS2002LS02 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

RCS2002LS02 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Written by

in

RCS2002LS02 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WP12990527 Whirlpool Microwave Screw
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
3184020 Whirlpool Oven Wire
WPL ARI121264A
WPL 8285503
WPL 8285502
4455805 Whirlpool Oven Grommet
Harness, Wire (Light)
Harness, Wiring (Main)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
W10491985 Whirlpool Screw
WPL ARI121265A
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
16515 Whirlpool Clip
242831 Whirlpool Oven Wire
1Burner Box
2Bracket, Switch Mounting
2WP3177991 Whirlpool Screw
33192454 Whirlpool Oven Mounting Bracket
3WP3196557 Whirlpool Screw
4Cooktop (Stainless Steel)
6Panel, Control
7WP3191472 Whirlpool Infinite Switch
7Switch Infinite (Use W/8“ Element (Yellow Shaft))
73400855 Whirlpool Oven Screw
8Light, Indicator
98186533 Whirlpool Hardware
9WP3400093 Whirlpool Screw
11DRIP BOWL 8" W/HOLE CHROME
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
12Element, Surface (8“)
12WP3191460 Whirlpool Surface Element
14WP8522566 Whirlpool Knob
153183956 Whirlpool Oven Seal Switch
26Safer Cooking Tips
26Literature Parts (Wire Diagram)
26WP3195917 Whirlpool Clip Assembly
26LITERATURE PARTS
26Literature Parts (Use & Care Guide)
26Literature Parts (Installation, Instructions)
