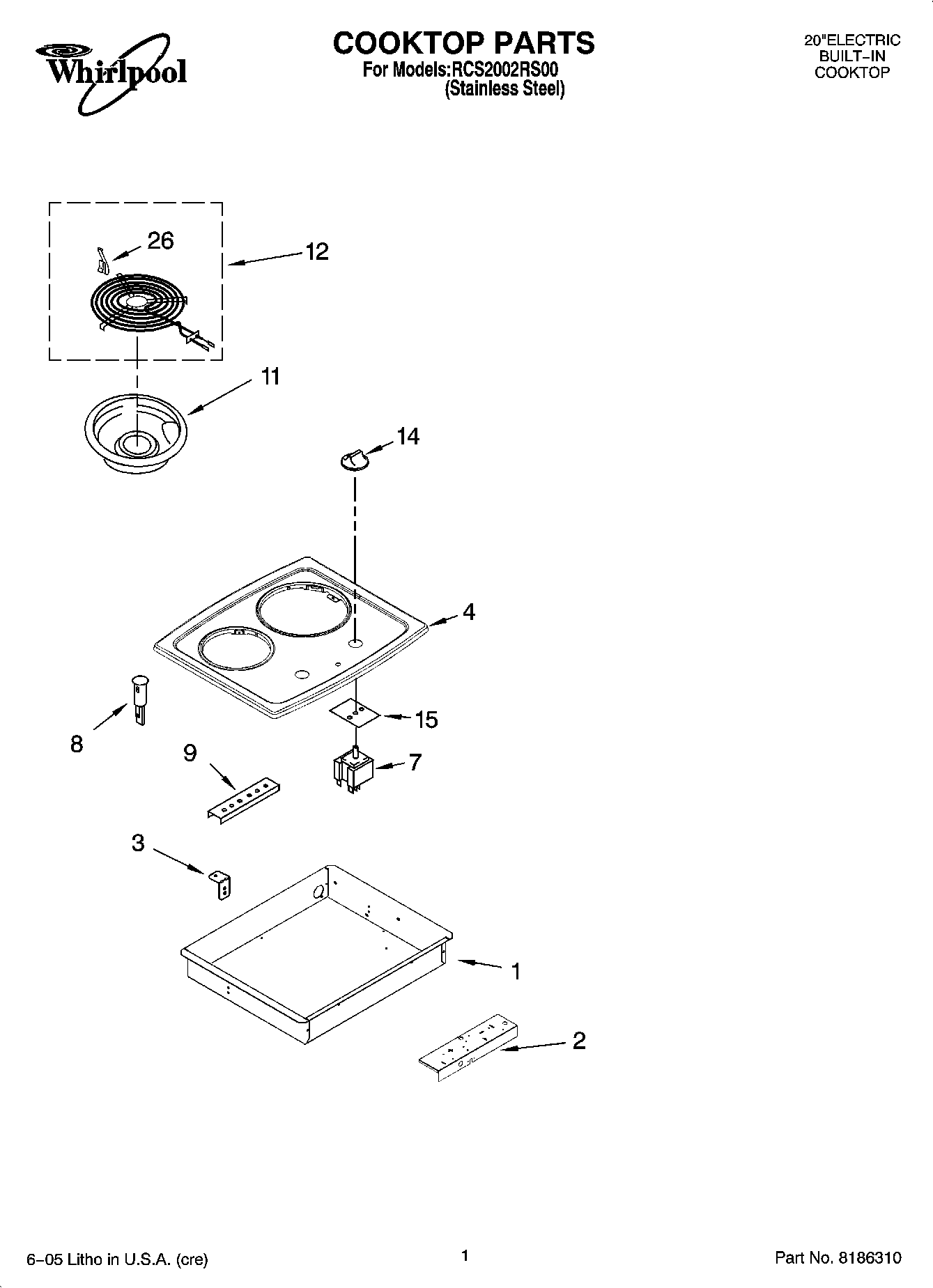

RCS2002RS00 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

Products

Position	Product
	WP3400015 Whirlpool Screw
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Cord, Power
	Bracket, Harness Cover
	4455805 Whirlpool Oven Grommet
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	W10491985 Whirlpool Screw
	WPL ARI121268A
	FOLLOWING PARTS NOT ILLUSTRATED SPLICI
	WP12990527 Whirlpool Microwave Screw
	3184020 Whirlpool Oven Wire
	Harness, Wiring (Main)
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	16515 Whirlpool Clip
1	Burner Box
2	Bracket, Switch Mounting
3	3192454 Whirlpool Oven Mounting Bracket
3	WP3196557 Whirlpool Screw
4	WPW10140169 Whirlpool Cooktop
7	3400855 Whirlpool Oven Screw
7	Switch Infinite (Use W/8“ Element (Yellow Shaft))
7	WP3191472 Whirlpool Infinite Switch
8	Light, Indicator
9	8186533 Whirlpool Hardware
9	WP3400093 Whirlpool Screw
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	Element, Surface (8“)
12	WP3191460 Whirlpool Surface Element
14	WP8286043BL Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
26	Wire Diagram
26	INSTALLATION, INSTRUCTIONS
26	Safe Cooking Tips
26	Use & Care Guide
26	WP3195917 Whirlpool Clip Assembly
26	LITERATURE PARTS
