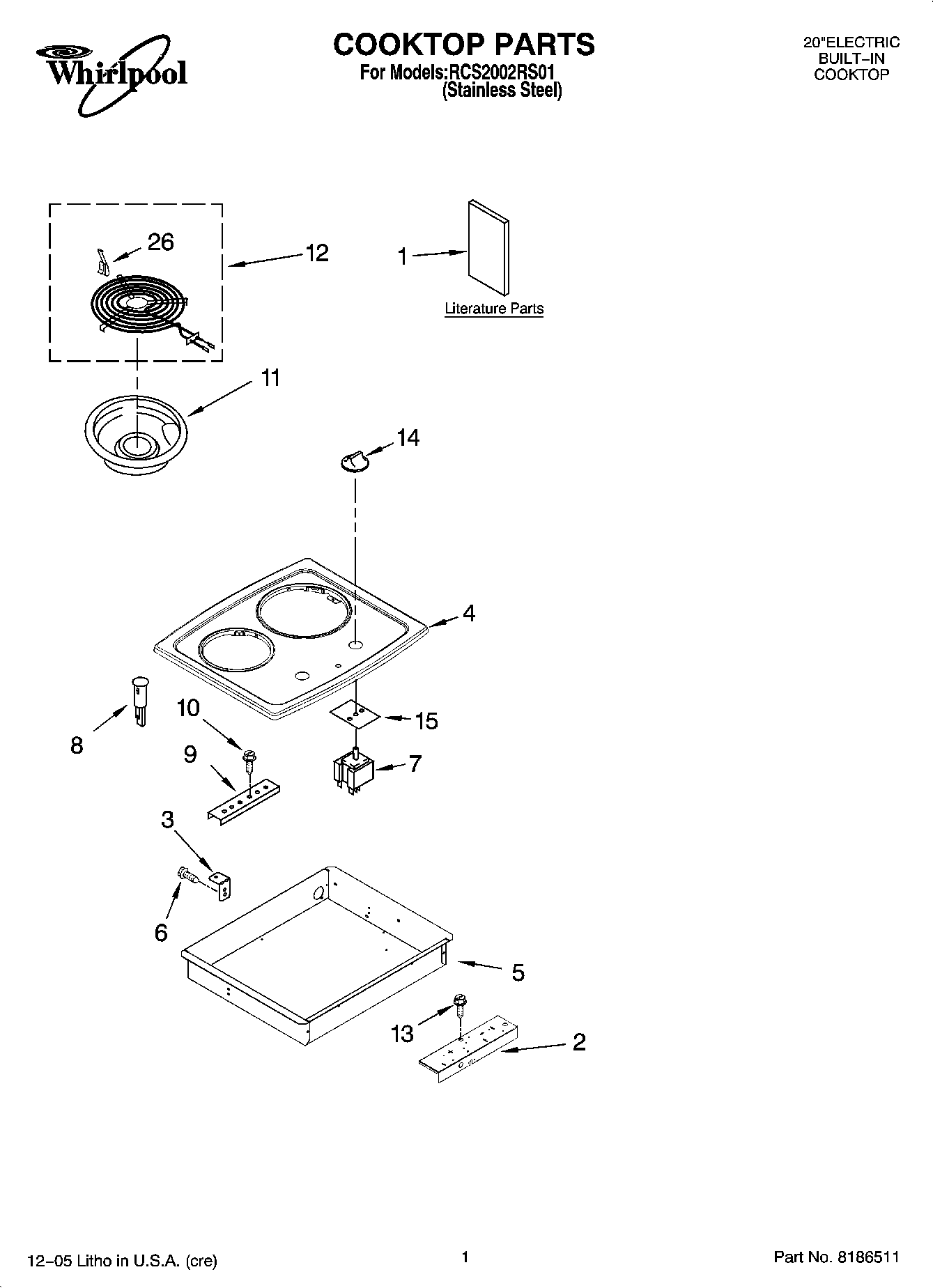

RCS2002RS01 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WP3400015 Whirlpool Screw
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	3184020 Whirlpool Oven Wire
	Bracket, Harness Cover
	4455805 Whirlpool Oven Grommet
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	W10491985 Whirlpool Screw
	WIRING HARNESS PARTS WIRING HARNESS PA
	WP12990527 Whirlpool Microwave Screw
	FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES–25FT. LENGTH
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	16515 Whirlpool Clip
	W11676902 Whirlpool Wire Harness
	Cord, Power
	Wire, 25“ Roll (White 14 GA.)
1	Use & Care Guide
1	Safe Cooking Tips
1	Safe Cooking Tips (French)
1	INSTALLATION, INSTRUCTIONS
2	WP8286443 Whirlpool Mounting Bracket
3	3192454 Whirlpool Oven Mounting Bracket
4	WPW10140169 Whirlpool Cooktop
5	Burner Box
6	WP3196557 Whirlpool Screw
7	Switch Infinite (Use W/8“ Element (Yellow Shaft))
7	WP3191472 Whirlpool Infinite Switch
8	Light, Indicator
9	8186533 Whirlpool Hardware
10	WP3400093 Whirlpool Screw
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	WP3191460 Whirlpool Surface Element
12	Element, Surface (8“)
13	3400855 Whirlpool Oven Screw
14	WP8286043BL Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
26	WP3195917 Whirlpool Clip Assembly
