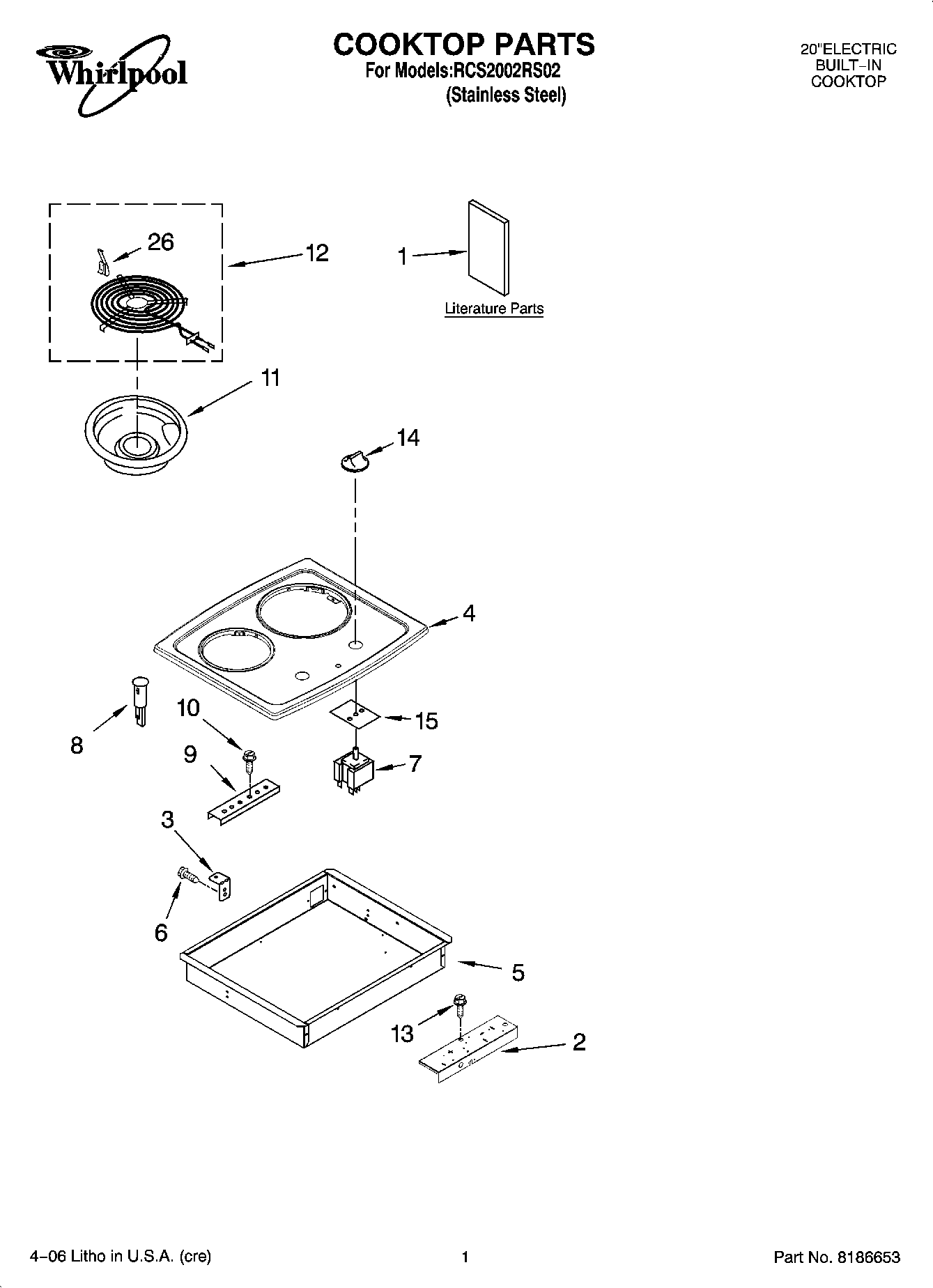

RCS2002RS02 01 – COOKTOP PARTS, OPTIONAL PARTS
Written by
in
RCS2002RS02 01 – COOKTOP PARTS, OPTIONAL PARTS
Products
Position
Product
WIRING HARNESS PARTS
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
W10005720 Whirlpool Power Cord
3184020 Whirlpool Oven Wire
4455805 Whirlpool Oven Grommet
W11676902 Whirlpool Wire Harness
WIRING HARNESS PARTS
Bracket, Harness Cover
Following Parts Not Illustrated
SPLICING WIRES–25FT. LENGTH
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
16515 Whirlpool Clip
W10491985 Whirlpool Screw
WP3177991 Whirlpool Screw
WP12990527 Whirlpool Microwave Screw
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Wire, 25“ Roll (White 14 GA.)
1
Safe Cooking Tips
1
Use & Care Guide
1
Safe Cooking Tips (French)
1
INSTALLATION, INSTRUCTIONS
2
WP8286443 Whirlpool Mounting Bracket
3
3192454 Whirlpool Oven Mounting Bracket
4
WPW10140169 Whirlpool Cooktop
5
W10005700 Whirlpool Burner Box
6
WP3196557 Whirlpool Screw
7
Switch Infinite (Use W/8“ Element (Yellow Shaft))
7
WP3191472 Whirlpool Infinite Switch
8
Light, Indicator
9
8186533 Whirlpool Hardware
10
WP3400093 Whirlpool Screw
11
DRIP BOWL 8" W/HOLE CHROME
11
WPW10196406 Whirlpool 6" Chrome Drip Bowl
12
Element, Surface (8“)
12
WP3191460 Whirlpool Surface Element
13
3400855 Whirlpool Oven Screw
14
WP8286043BL Whirlpool Knob
15
3183956 Whirlpool Oven Seal Switch
26
WP3195917 Whirlpool Clip Assembly
←
