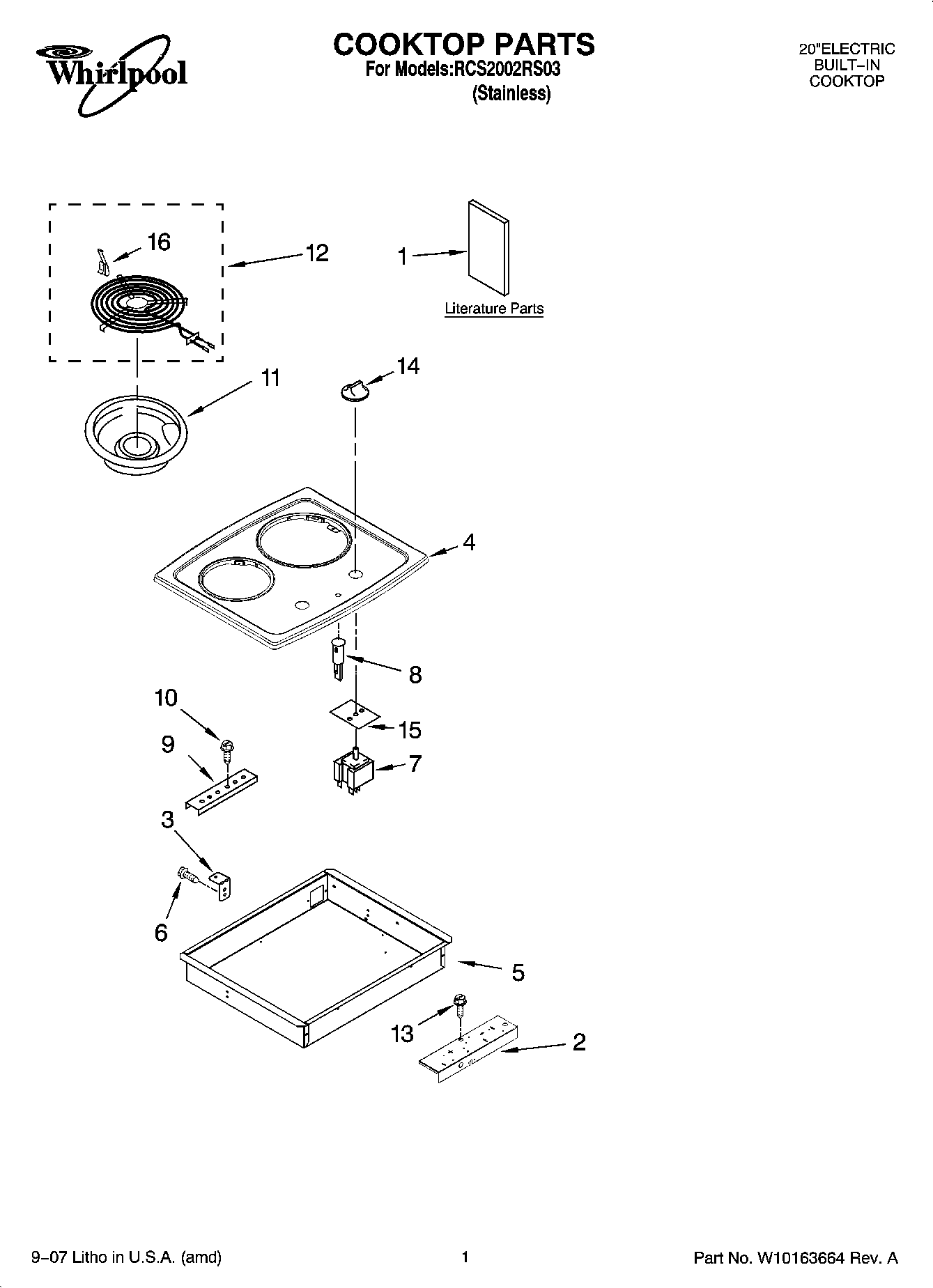

RCS2002RS03 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WP3400015 Whirlpool Screw
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL ARI121277A
	W11676902 Whirlpool Wire Harness
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
	W10491985 Whirlpool Screw
	WP3177991 Whirlpool Screw
	WPL ARI121276A
	WPL ARI121275A
	W10005720 Whirlpool Power Cord
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	Bracket, Harness Cover
	4455805 Whirlpool Oven Grommet
1	Use & Care Guide
1	INSTALLATION, INSTRUCTIONS
1	Safe Cooking Tips (French)
1	Safe Cooking Tips
2	WP8286443 Whirlpool Mounting Bracket
3	3192454 Whirlpool Oven Mounting Bracket
4	WPW10140169 Whirlpool Cooktop
5	W10005700 Whirlpool Burner Box
6	WP3196557 Whirlpool Screw
7	Switch Infinite (Use W/8“ Element (Yellow Shaft))
7	WP3191472 Whirlpool Infinite Switch
8	Light, Indicator
9	8186533 Whirlpool Hardware
10	WP3400093 Whirlpool Screw
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	Element, Surface (8“)
12	WP3191460 Whirlpool Surface Element
13	3400855 Whirlpool Oven Screw
14	WP8286043BL Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
16	WP3195917 Whirlpool Clip Assembly
