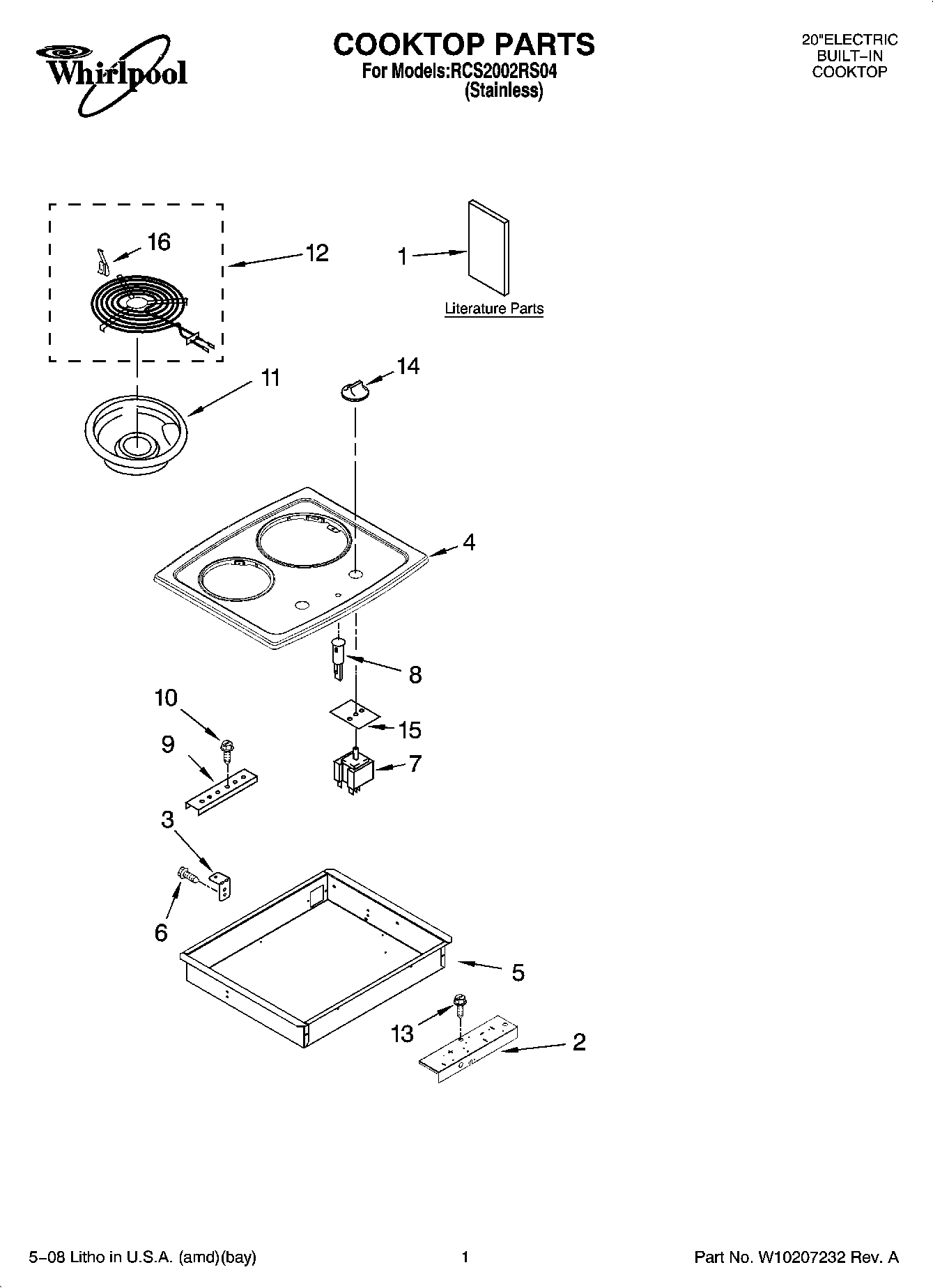

RCS2002RS04 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	Wire, 25` Roll (Red 14 Ga.)
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	Bracket, Harness Cover
	W10005720 Whirlpool Power Cord
	W11676902 Whirlpool Wire Harness
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
	4455805 Whirlpool Oven Grommet
	W10491985 Whirlpool Screw
	WIRING HARNESS PARTS
	SPLICING WIRES–25FT. LENGTH
	WP3351614 Whirlpool Screw
	WP3400015 Whirlpool Screw
	Following Parts Not Illustrated
	Wire, 25` Roll (Black 14 Ga.)
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	Use & Care Guide
1	INSTALLATION, INSTRUCTIONS
2	WP8286443 Whirlpool Mounting Bracket
3	3192454 Whirlpool Oven Mounting Bracket
4	WPW10140169 Whirlpool Cooktop
5	W10005700 Whirlpool Burner Box
6	WP3196557 Whirlpool Screw
7	Switch Infinite (Use W/8“ Element (Yellow Shaft))
7	WP3191472 Whirlpool Infinite Switch
8	Light, Indicator
9	8186533 Whirlpool Hardware
10	WP3400093 Whirlpool Screw
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	WP3191460 Whirlpool Surface Element
12	Element, Surface (8“)
13	3400855 Whirlpool Oven Screw
14	WP8286043BL Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
16	WP3195917 Whirlpool Clip Assembly
