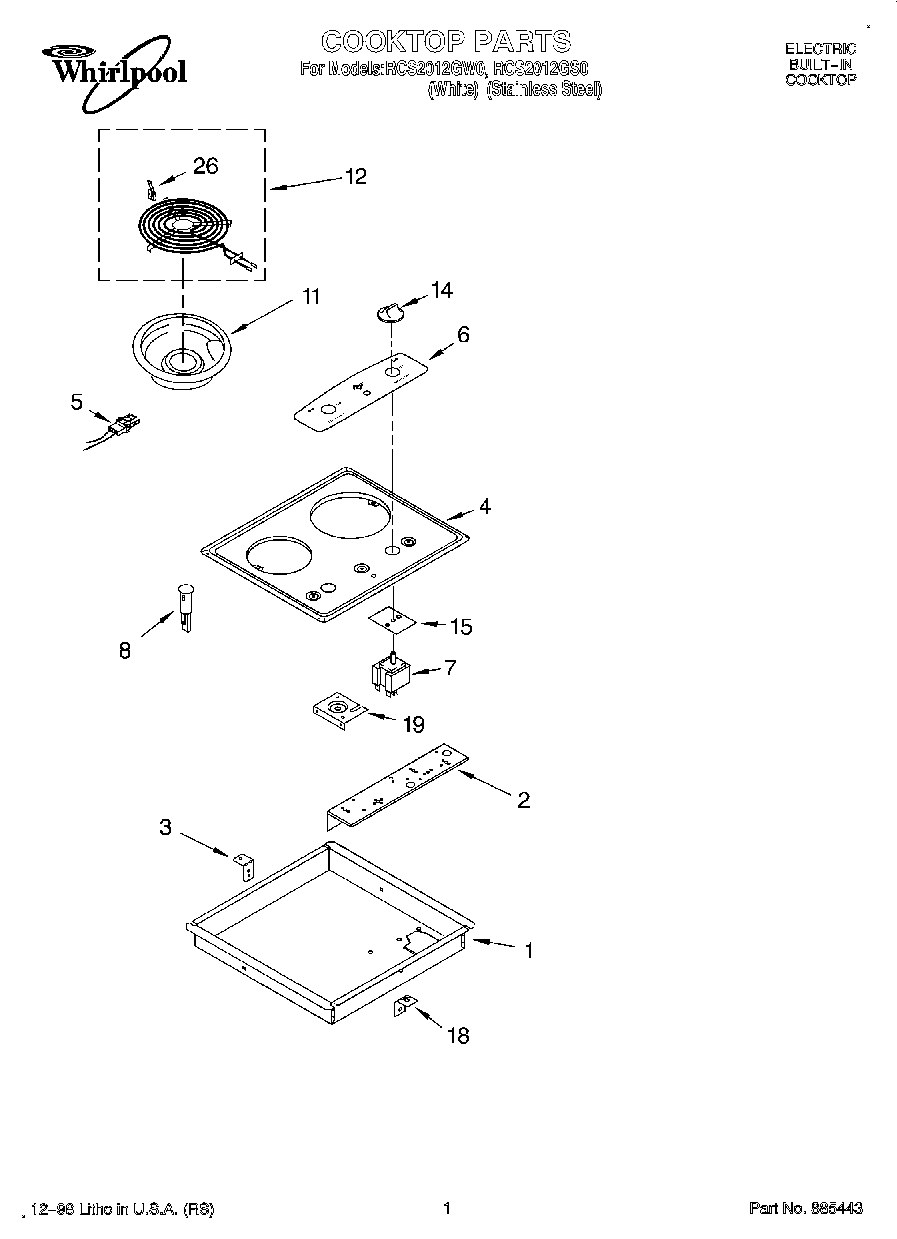

RCS2012GW0 01 – SECTION

Products

Position	Product
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	3184020 Whirlpool Oven Wire
	Harness, Wire (Light)
	Use & Care Guide
	Grommet
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Harness, Wiring (Main)
	Wire Diagram
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	Conduit Assembly
	16515 Whirlpool Clip
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
	WPL LIT3191538
1	Burner Box
2	Screw
2	Bracket, Switch Mounting
3	WP3196557 Whirlpool Screw
3	3192454 Whirlpool Oven Mounting Bracket
4	Cooktop (Stainless Steel)
4	Cooktop (White)
5	814399 Whirlpool Receptacle Kit
6	Panel, Control
7	WP3191471 Whirlpool Infinite Switch
7	WP3191472 Whirlpool Infinite Switch
7	Switch Infinite (Screw)
8	WP4456181 Whirlpool Indicator Light
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	WPW10345407 Whirlpool Surface Element
12	WP9761346 Whirlpool Stove Surface Burner Element
14	WP3196231 Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
18	Bracket, Installation
19	Cover, Conduit
26	WP3195917 Whirlpool Clip Assembly
