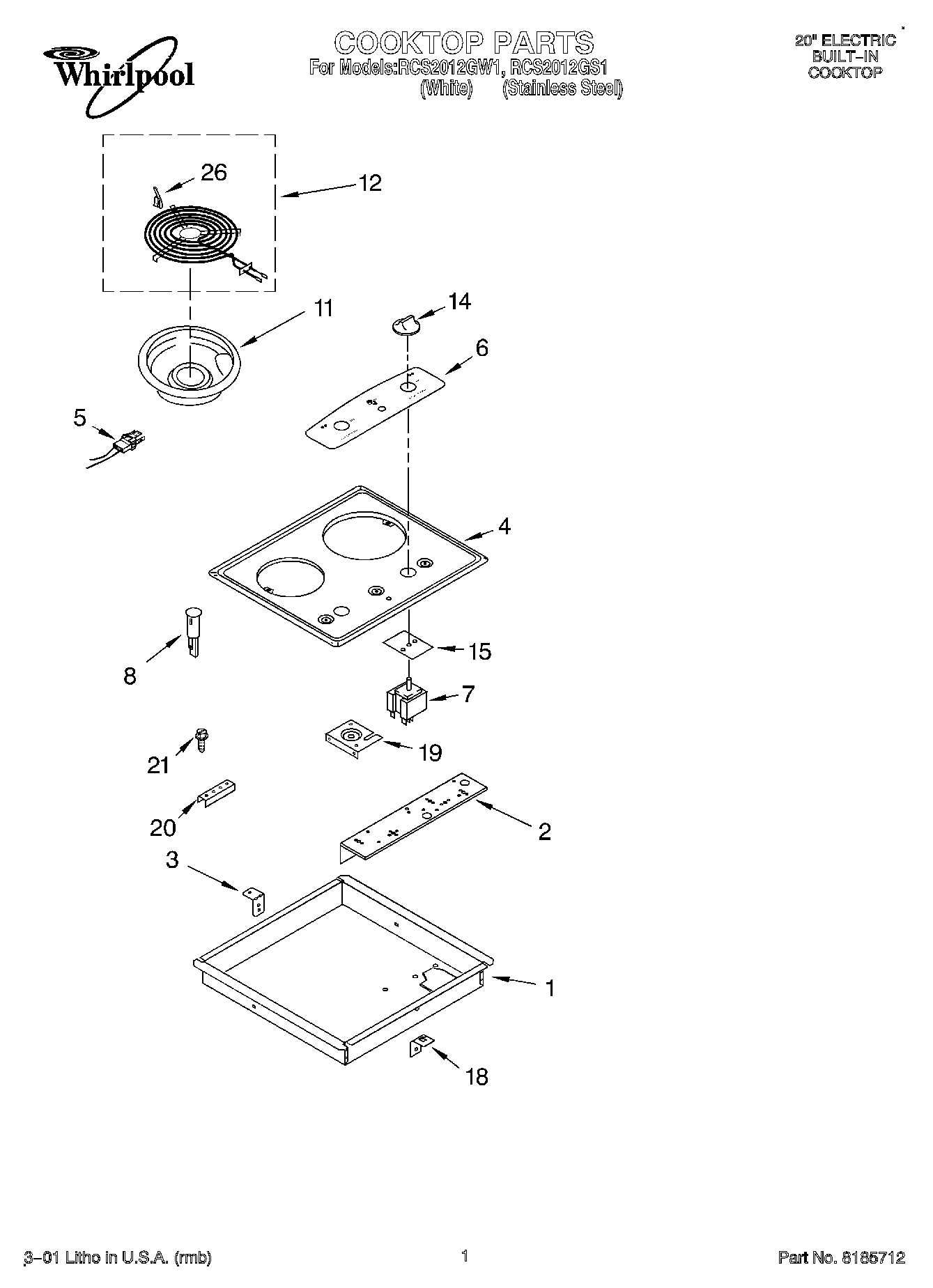

RCS2012GW1 01 – SECTION

Products

Position	Product
	Wire Diagram
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	3184020 Whirlpool Oven Wire
	Harness, Wire (Light)
	Grommet
	Installation Instructions
	Use & Care Guide
	Harness, Wiring (Main)
	Conduit Assembly
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WP3400015 Whirlpool Screw
	16515 Whirlpool Clip
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
1	Burner Box
2	WP3177991 Whirlpool Screw
2	Bracket, Switch Mounting
3	3192454 Whirlpool Oven Mounting Bracket
3	WP3196557 Whirlpool Screw
4	Cooktop (Stainless Steel)
4	Cooktop (White)
5	814399 Whirlpool Receptacle Kit
6	Panel, Control
7	3400855 Whirlpool Oven Screw
7	WP3191472 Whirlpool Infinite Switch
7	WP3191471 Whirlpool Infinite Switch
8	WP4456181 Whirlpool Indicator Light
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	WPW10345407 Whirlpool Surface Element
12	WP9761346 Whirlpool Stove Surface Burner Element
14	WP3196231 Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
18	Bracket, Installation
19	Cover, Conduit
20	8186533 Whirlpool Hardware
21	Screw
26	WP3195917 Whirlpool Clip Assembly
