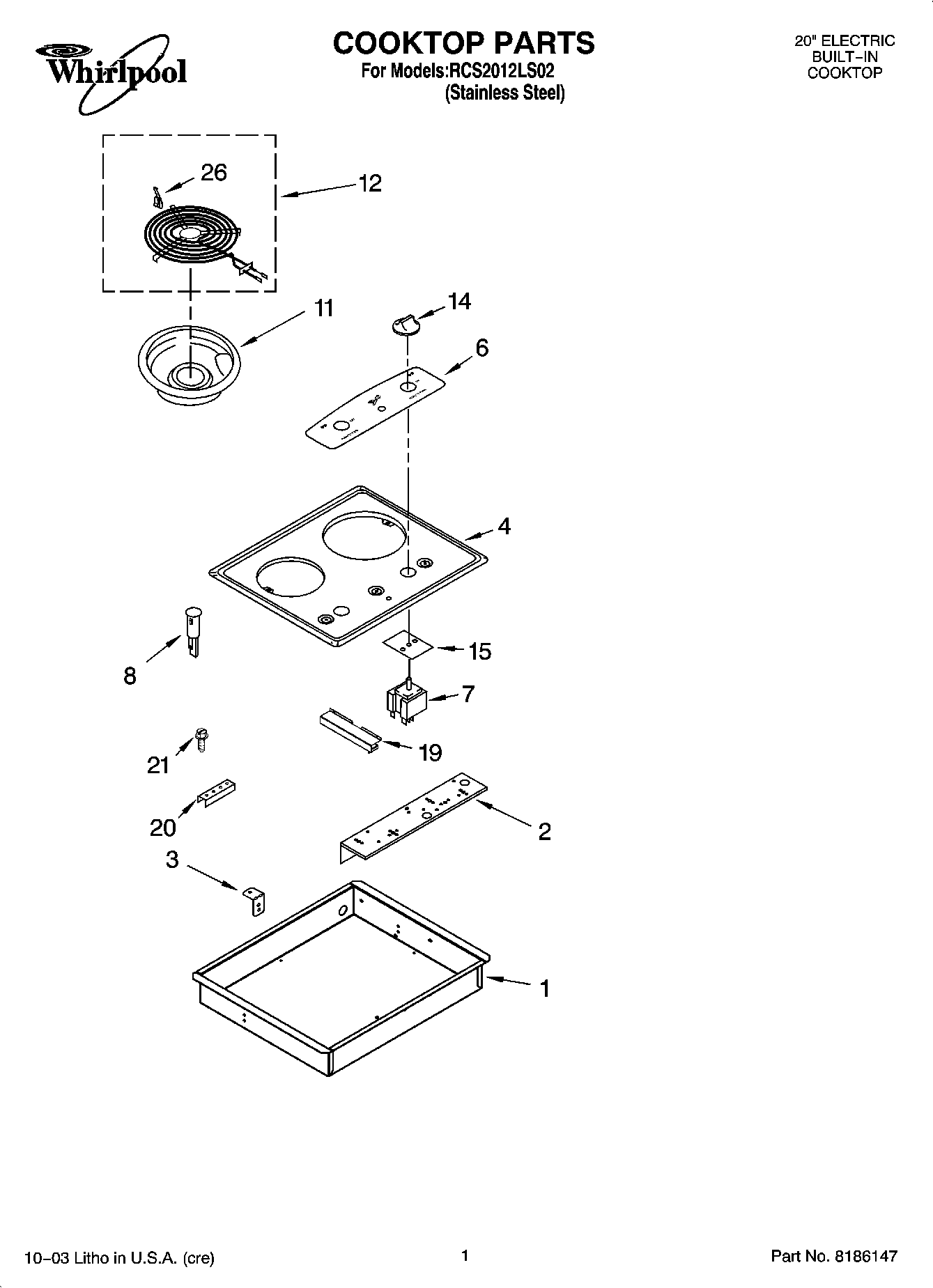

RCS2012LS02 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

RCS2012LS02 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Written by

in

RCS2012LS02 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
Harness, Wire (Light)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
3184020 Whirlpool Oven Wire
WPL ARI121285A
Conduit Assembly
4455805 Whirlpool Oven Grommet
WPL ARI121284A
Harness, Wiring (Main)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP3400015 Whirlpool Screw
242831 Whirlpool Oven Wire
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
16515 Whirlpool Clip
1Burner Box
2Bracket, Switch Mounting
2WP3177991 Whirlpool Screw
3WP3196557 Whirlpool Screw
33192454 Whirlpool Oven Mounting Bracket
4Cooktop (Stainless Steel)
6Panel, Control
7WP3191472 Whirlpool Infinite Switch
73400855 Whirlpool Oven Screw
7WP3191471 Whirlpool Infinite Switch
8WP4456181 Whirlpool Indicator Light
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12WPW10345407 Whirlpool Surface Element
12WP9761346 Whirlpool Stove Surface Burner Element
14WP8522566 Whirlpool Knob
153183956 Whirlpool Oven Seal Switch
19W10491985 Whirlpool Screw
19Cover, Conduit
208186533 Whirlpool Hardware
21WP3400093 Whirlpool Screw
26Wire Diagram
26Literature Parts (Installation, Instructions)
26Literature Parts (Use & Care Guide)
26WP3195917 Whirlpool Clip Assembly
26LITERATURE PARTS
