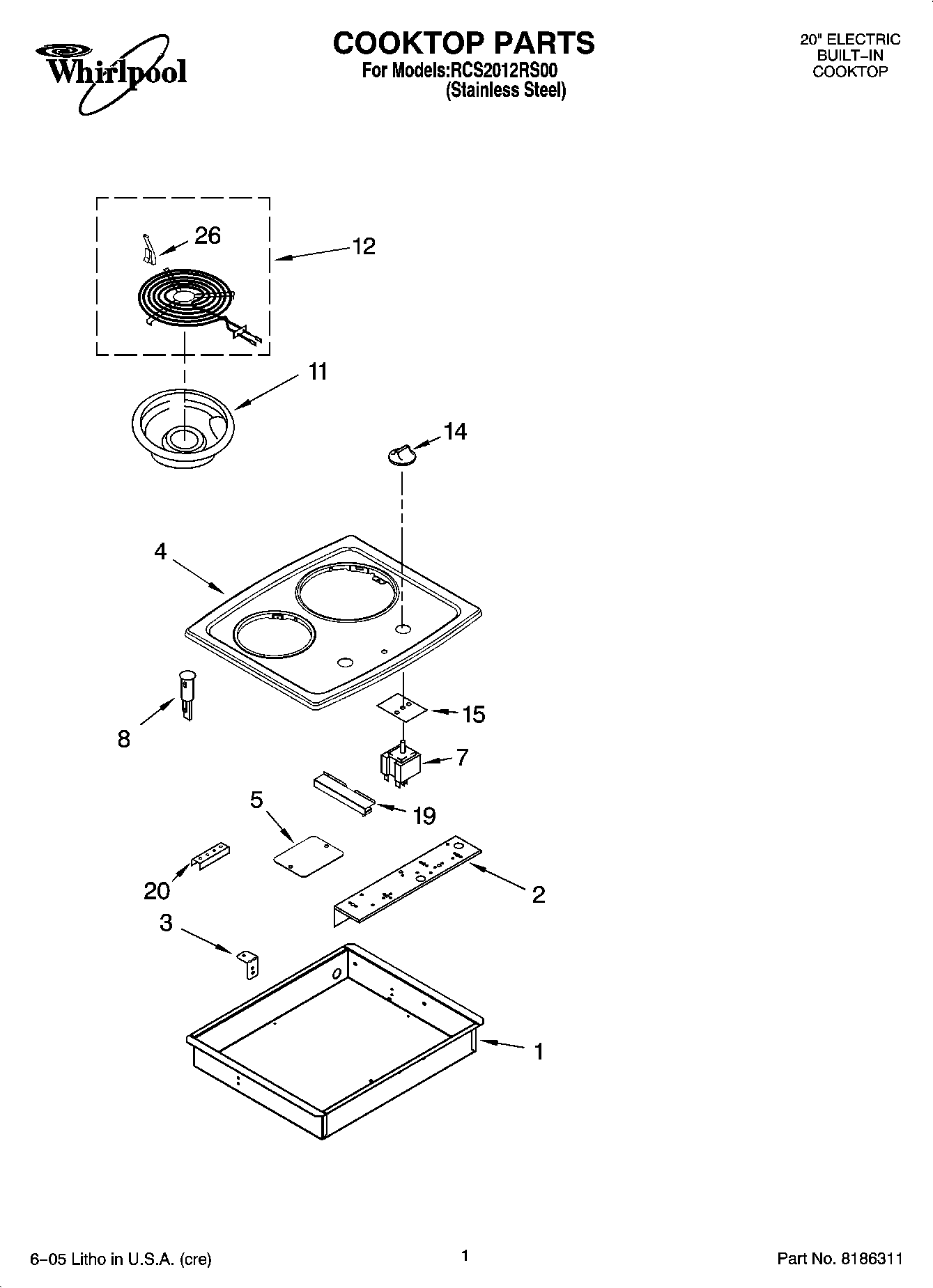

RCS2012RS00 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	3184020 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
	4455805 Whirlpool Oven Grommet
	242831 Whirlpool Oven Wire
	WIRING HARNESS P
	Harness, Wiring (Main)
	FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES–25FT. LENGTH
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	Conduit Assembly
1	Burner Box
2	WP3177991 Whirlpool Screw
3	WP3196557 Whirlpool Screw
3	3192454 Whirlpool Oven Mounting Bracket
4	WPW10140169 Whirlpool Cooktop
5	Bracket, Harness Cover
5	Screw
7	WP3191472 Whirlpool Infinite Switch
7	3400855 Whirlpool Oven Screw
7	WP3191471 Whirlpool Infinite Switch
8	WP4456181 Whirlpool Indicator Light
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	WPW10345407 Whirlpool Surface Element
12	WP9761346 Whirlpool Stove Surface Burner Element
14	WP8286043BL Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
19	Cover, Conduit
19	W10491985 Whirlpool Screw
20	Bracket, Switch Mounting
26	Installation, Instructions
26	WP3195917 Whirlpool Clip Assembly
26	Wire Diagram
26	Use & Care Guide
26	LITERATURE PARTS
