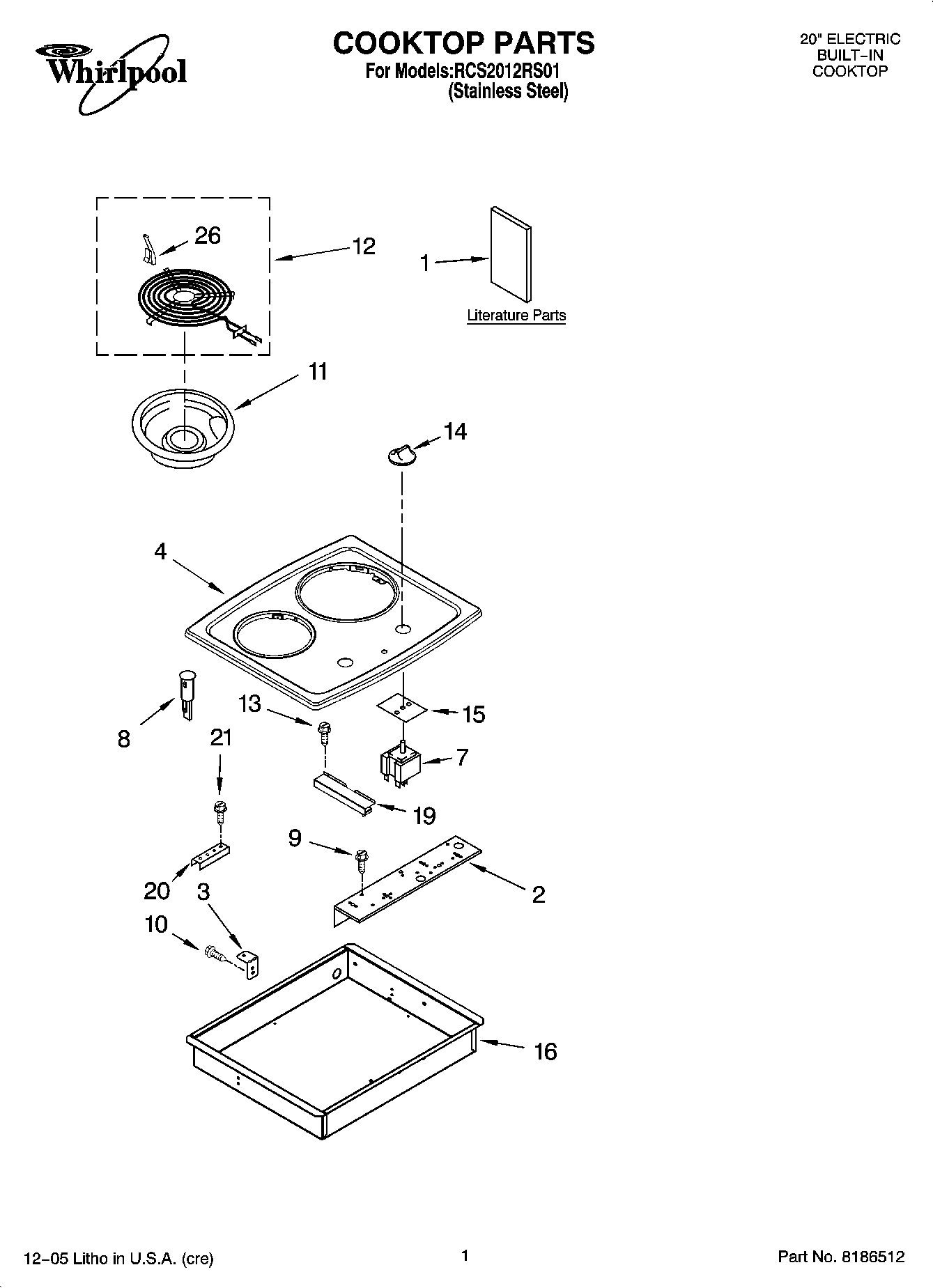

RCS2012RS01 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WP3400015 Whirlpool Screw
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	242831 Whirlpool Oven Wire
	3184020 Whirlpool Oven Wire
	Wire, 25“ Roll (White 14 GA.)
	WIRING HARNESS PARTS WIRING HARNESS PARTS
	FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES–25FT. LENGTH
	Conduit Assembly
	W11676902 Whirlpool Wire Harness
	4455805 Whirlpool Oven Grommet
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	1
1	INSTALLATION, INSTRUCTIONS
1	Safe Cooking Tips (French)
1	Use & Care Guide
2	WP8286443 Whirlpool Mounting Bracket
3	3192454 Whirlpool Oven Mounting Bracket
4	WPW10140169 Whirlpool Cooktop
7	WP3191471 Whirlpool Infinite Switch
7	WP3191472 Whirlpool Infinite Switch
8	WP4456181 Whirlpool Indicator Light
9	WP3177991 Whirlpool Screw
10	WP3196557 Whirlpool Screw
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	WP9761346 Whirlpool Stove Surface Burner Element
12	WPW10345407 Whirlpool Surface Element
13	W10491985 Whirlpool Screw
14	WP8286043BL Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
16	Burner Box
19	Cover, Conduit
20	8186533 Whirlpool Hardware
21	WP3400093 Whirlpool Screw
26	WP3195917 Whirlpool Clip Assembly
