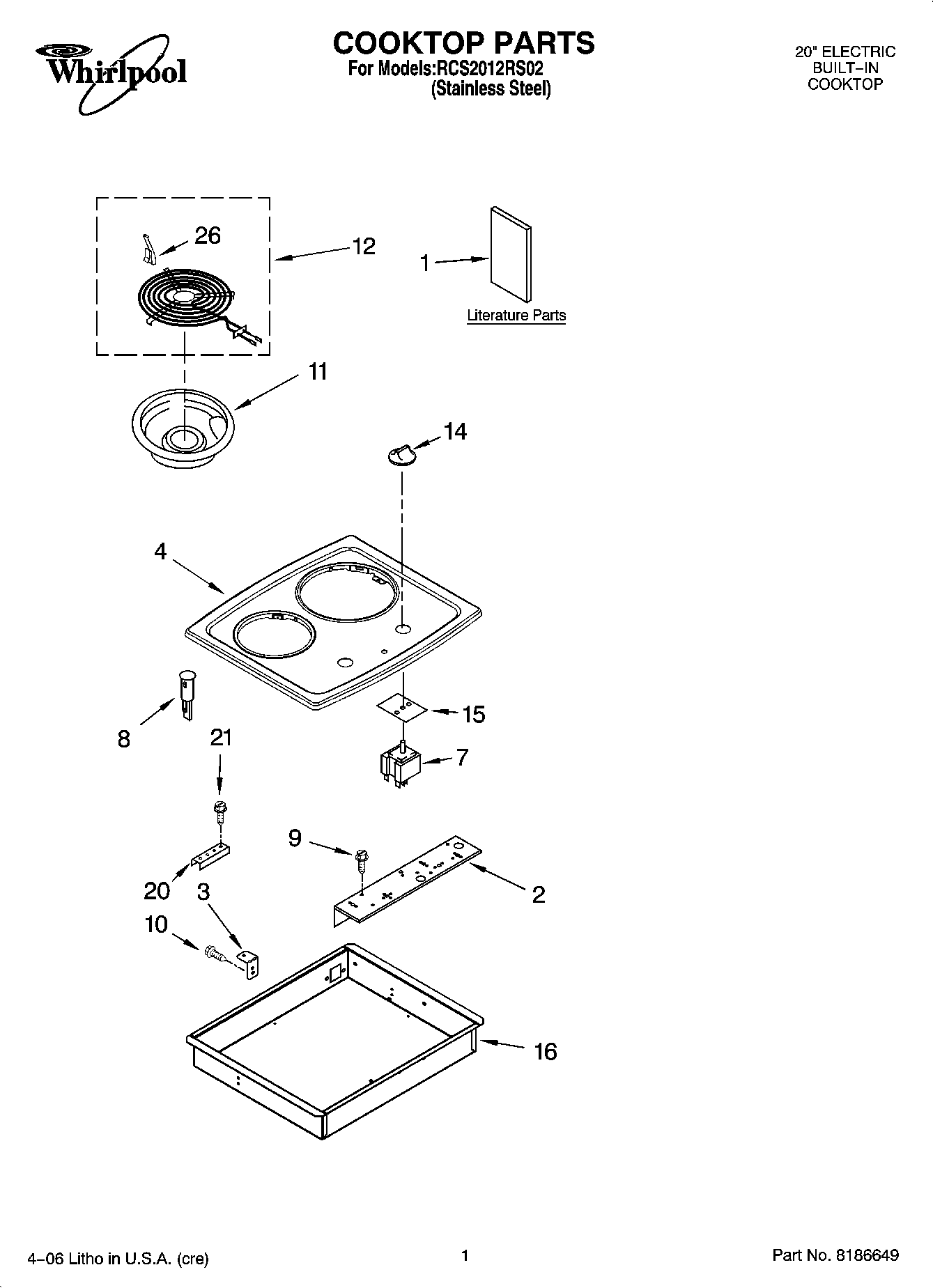

RCS2012RS02 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

RCS2012RS02 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RCS2012RS02 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Following Parts Not Illustrated
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
242831 Whirlpool Oven Wire
WIRING HARNESS PARTS
4455805 Whirlpool Oven Grommet
COVER CONDUIT ASSEMBLY
W11676902 Whirlpool Wire Harness
WP3400015 Whirlpool Screw
WIRING HARNESS PARTS
Bracket, Harness Cover
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
SPLICING WIRES–25FT. LENGTH
1Safe Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1Use & Care Guide
1INSTALLATION, INSTRUCTIONS
2WP8286443 Whirlpool Mounting Bracket
33192454 Whirlpool Oven Mounting Bracket
4WPW10140169 Whirlpool Cooktop
7WP3191472 Whirlpool Infinite Switch
7WP3191471 Whirlpool Infinite Switch
8WP4456181 Whirlpool Indicator Light
9WP3177991 Whirlpool Screw
10WP3196557 Whirlpool Screw
11DRIP BOWL 8" W/HOLE CHROME
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
12WP9761346 Whirlpool Stove Surface Burner Element
12WPW10345407 Whirlpool Surface Element
14WP8286043BL Whirlpool Knob
153183956 Whirlpool Oven Seal Switch
16W10005700 Whirlpool Burner Box
208186533 Whirlpool Hardware
21WP3400093 Whirlpool Screw
26WP3195917 Whirlpool Clip Assembly
