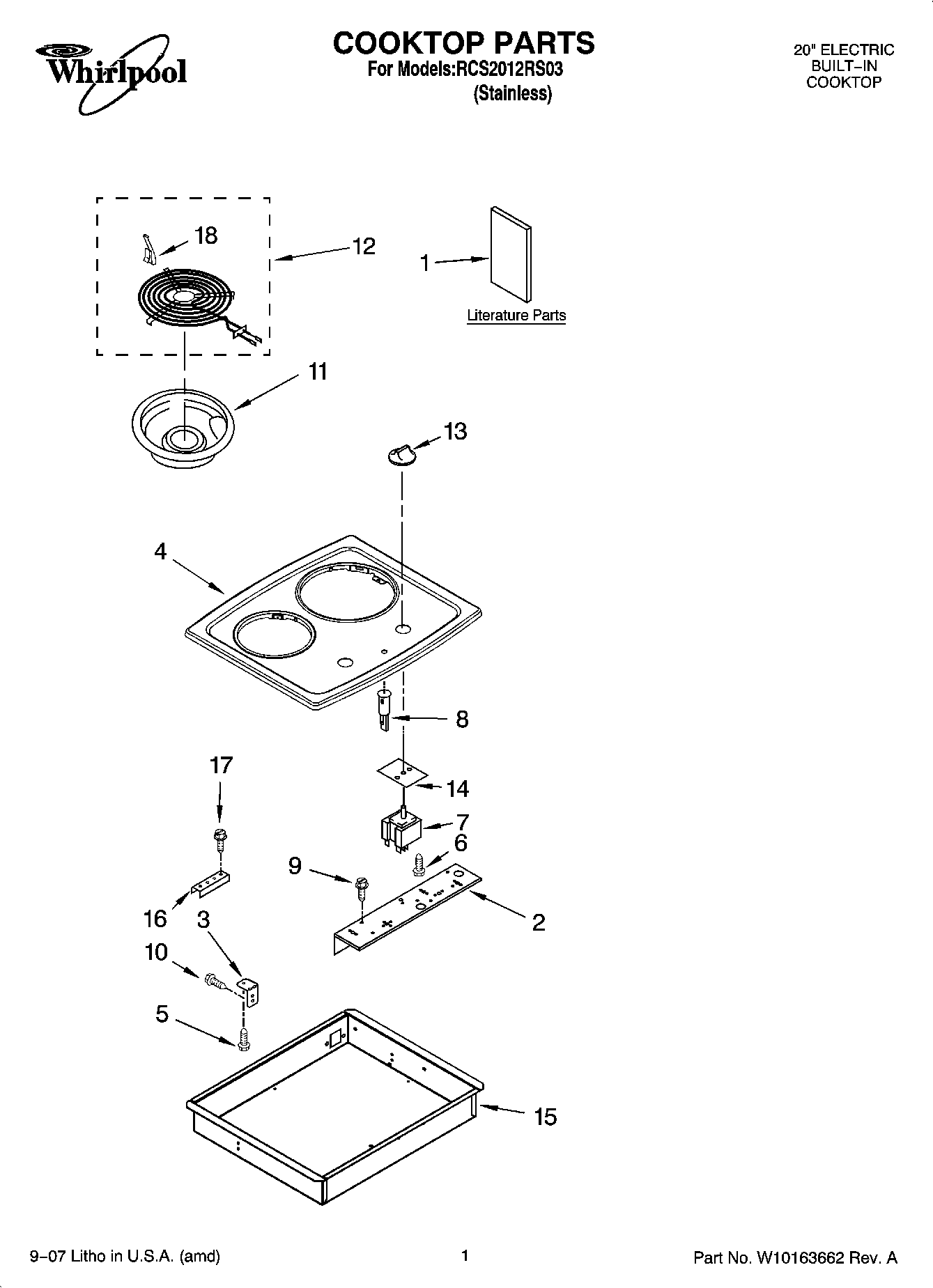

RCS2012RS03 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

RCS2012RS03 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RCS2012RS03 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WP3400015 Whirlpool Screw
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
242831 Whirlpool Oven Wire
WIRING HARNESS PARTS
SPLICING WIRES–25FT. LENGTH
Following Parts Not Illustrated
COVER CONDUIT ASSEMBLY
Bracket, Harness Cover
W11676902 Whirlpool Wire Harness
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
4455805 Whirlpool Oven Grommet
1INSTALLATION, INSTRUCTIONS
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Use & Care Guide
2WP8286443 Whirlpool Mounting Bracket
33192454 Whirlpool Oven Mounting Bracket
4WPW10140169 Whirlpool Cooktop
5W10491985 Whirlpool Screw
63400855 Whirlpool Oven Screw
7WP3191472 Whirlpool Infinite Switch
7WP3191471 Whirlpool Infinite Switch
8WP4456181 Whirlpool Indicator Light
9WP3177991 Whirlpool Screw
10WP3196557 Whirlpool Screw
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12WP9761346 Whirlpool Stove Surface Burner Element
12WPW10345407 Whirlpool Surface Element
13WP8286043BL Whirlpool Knob
143183956 Whirlpool Oven Seal Switch
15W10005700 Whirlpool Burner Box
168186533 Whirlpool Hardware
17WP3400093 Whirlpool Screw
18WP3195917 Whirlpool Clip Assembly
