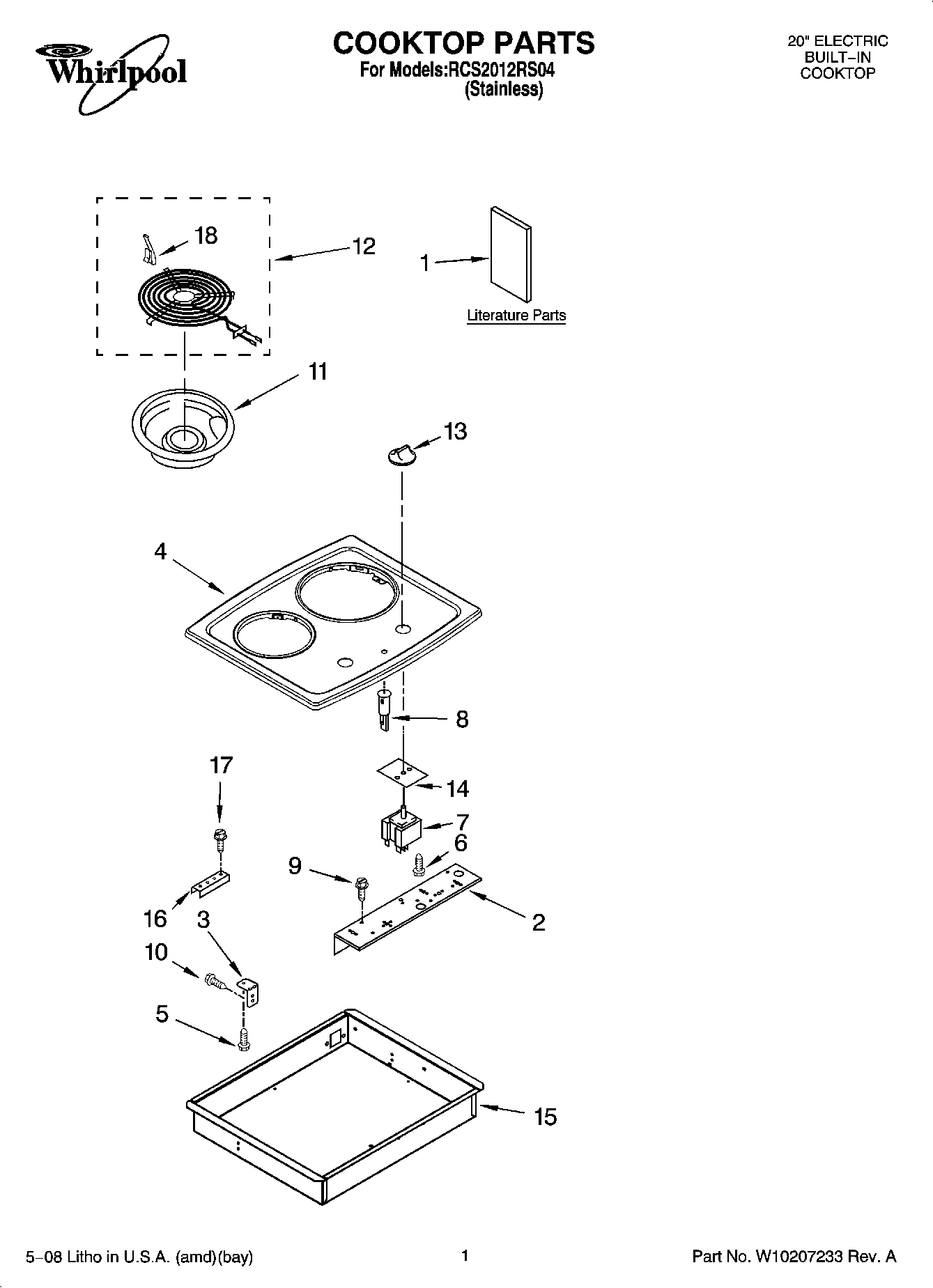

RCS2012RS04 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	Wire, 25` Roll (Red 14 Ga.)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	WIRING HARNESS PARTS
	4455805 Whirlpool Oven Grommet
	W11676902 Whirlpool Wire Harness
	SPLICING WIRES–25FT. LENGTH
	Following Parts Not Illustrated
	COVER CONDUIT ASSEMBLY
	WP3400015 Whirlpool Screw
	Bracket, Harness Cover
	Wire, 25` Roll (Black 14 Ga.)
1	SAFER COOKING TIPS (ENGLISH
1	Use & Care Guide
1	Safer Cooking Tips (French)
1	INSTALLATION, INSTRUCTIONS
2	WP8286443 Whirlpool Mounting Bracket
3	3192454 Whirlpool Oven Mounting Bracket
4	WPW10140169 Whirlpool Cooktop
5	W10491985 Whirlpool Screw
6	3400855 Whirlpool Oven Screw
7	WP3191472 Whirlpool Infinite Switch
7	WP3191471 Whirlpool Infinite Switch
8	WP4456181 Whirlpool Indicator Light
9	WP3177991 Whirlpool Screw
10	WP3196557 Whirlpool Screw
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	WPW10345407 Whirlpool Surface Element
12	WP9761346 Whirlpool Stove Surface Burner Element
13	WP8286043BL Whirlpool Knob
14	3183956 Whirlpool Oven Seal Switch
15	W10005700 Whirlpool Burner Box
16	8186533 Whirlpool Hardware
17	WP3400093 Whirlpool Screw
18	WP3195917 Whirlpool Clip Assembly
