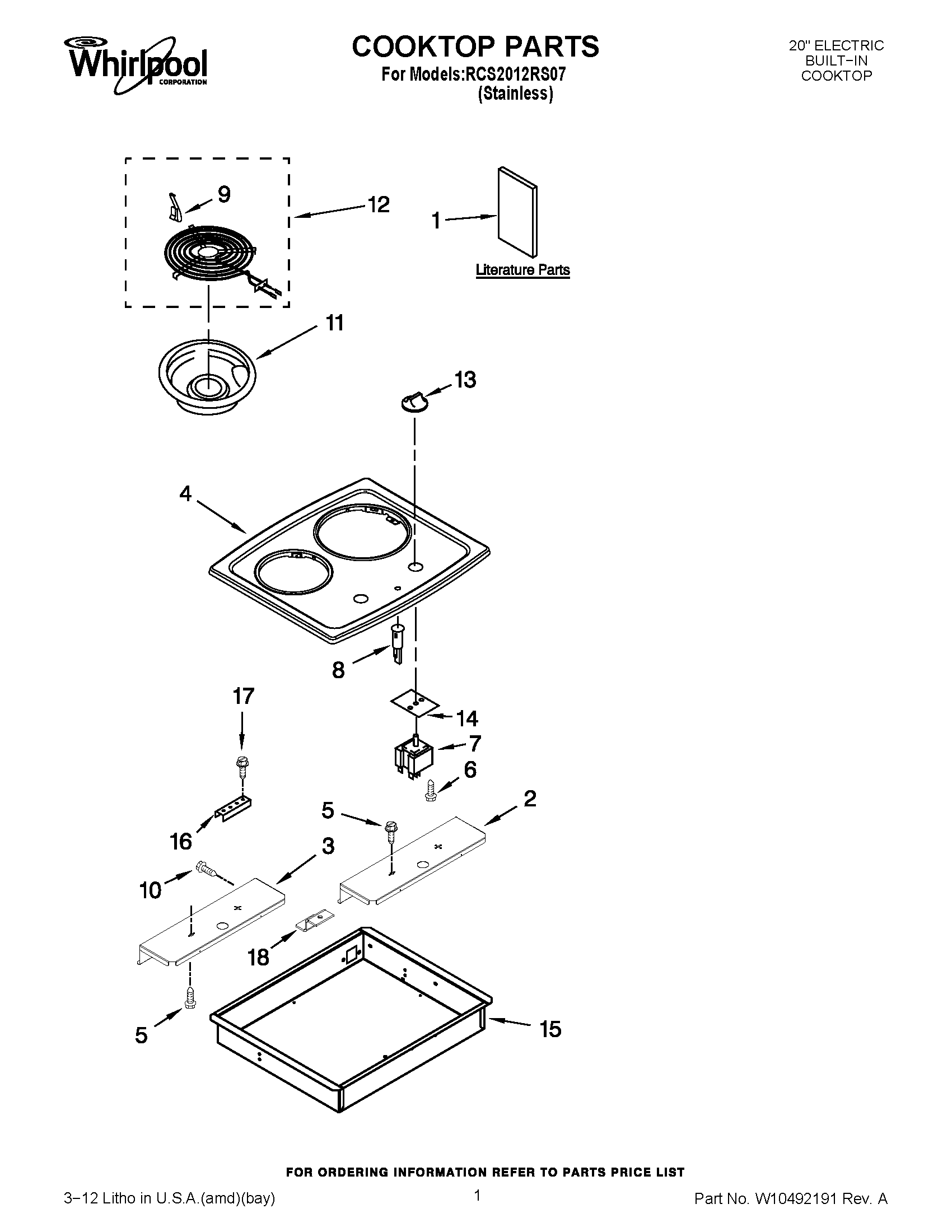

RCS2012RS07 01 – COOKTOP PARTS

Products

Position	Product
1	Safer Cooking Tips (French)
1	Use & Care Guide
1	INSTALLATION, INSTRUCTIONS
1	SAFER COOKING TIPS (ENGLISH
2	BRACKET, SWITCH MOUNTING
3	BRACKET, MOUNTING
4	WPW10140169 Whirlpool Cooktop
5	W10491985 Whirlpool Screw
6	WPL 7101P30960
7	WPW10392437 Whirlpool Infinite Switch
7	WPW10392436 Whirlpool Infinite Switch
8	WP4456181 Whirlpool Indicator Light
9	WP3195917 Whirlpool Clip Assembly
10	WP3196557 Whirlpool Screw
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	WPW10345407 Whirlpool Surface Element
12	WP9761346 Whirlpool Stove Surface Burner Element
13	WP8286043BL Whirlpool Knob
14	3183956 Whirlpool Oven Seal Switch
15	BOX, BURNER
16	8186533 Whirlpool Hardware
17	WP3400093 Whirlpool Screw
18	BRACKET, RIGHT
