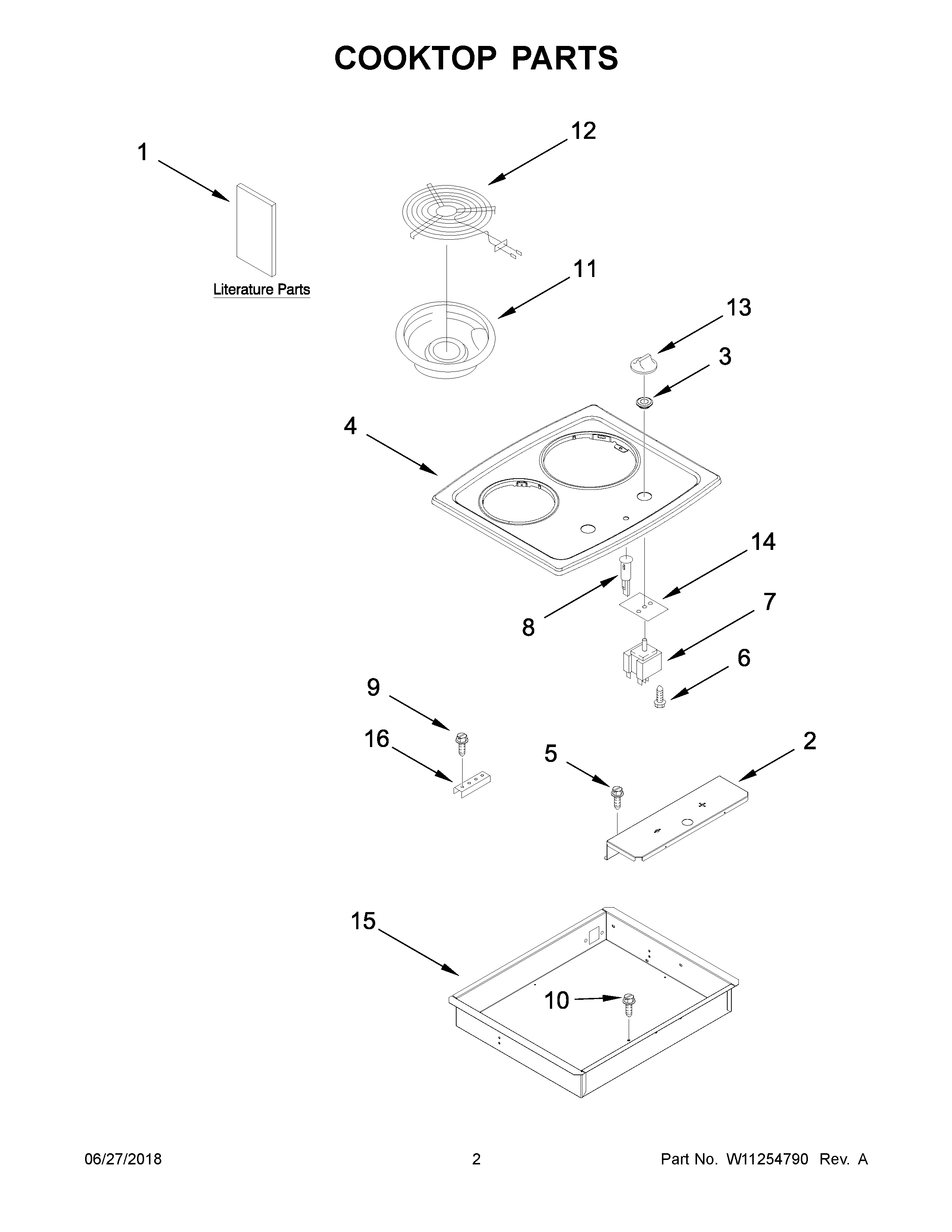

RCS2012RS08 02 – COOKTOP PARTS

RCS2012RS08 02 – COOKTOP PARTS

Written by

in

RCS2012RS08 02 – COOKTOP PARTS

Products

PositionProduct
NICONDUIT
NI4455805 Whirlpool Oven Grommet
NICABINET (NOT A SERVICEABLE PART)
NIWP3400015 Whirlpool Screw
NISCREW
NIW11676902 Whirlpool Wire Harness
NI16515 Whirlpool Clip
1INSTALLATION, INSTRUCTIONS
1BGUIDE, USE AND CARE
1AInstallation Instructions (Undercounter Oven)
2BRACKET, SWITCH MOUNTING
3WP8286452 Whirlpool Grommet
4WPW10140169 Whirlpool Cooktop
5W10491985 Whirlpool Screw
6WPL 7101P30960
7AWPW10392437 Whirlpool Infinite Switch
7WPW10392436 Whirlpool Infinite Switch
8WP4456181 Whirlpool Indicator Light
9WP3400093 Whirlpool Screw
10WP3196557 Whirlpool Screw
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11ADRIP BOWL 8" W/HOLE CHROME
12AELMNT-SURF
12W11396792 Whirlpool Surface Coil Element
13WP8286043BL Whirlpool Knob
143183956 Whirlpool Oven Seal Switch
15BOX, BURNER
168186533 Whirlpool Hardware
