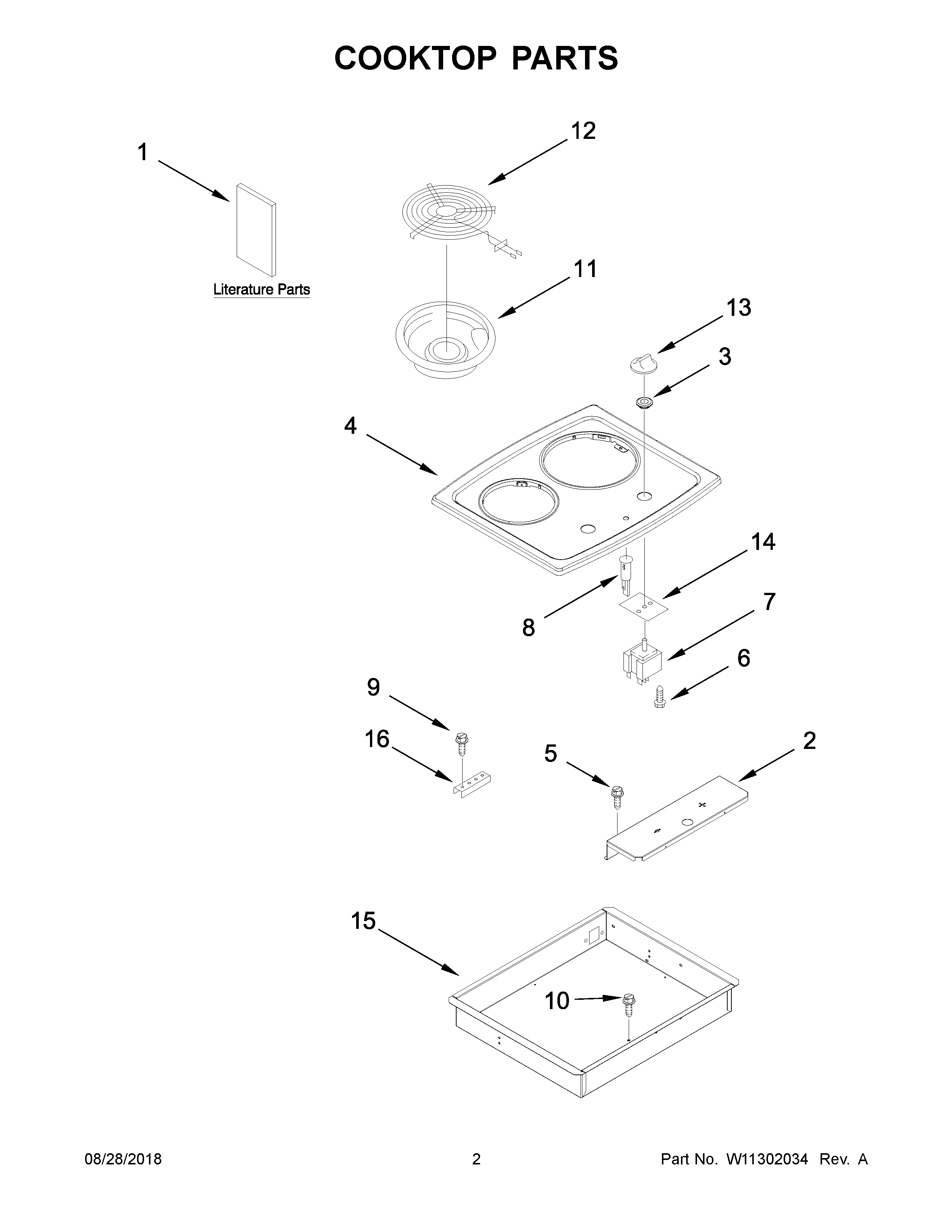

RCS2012RS09 02 – COOKTOP PARTS

Products

Position	Product
NI	W11676902 Whirlpool Wire Harness
NI	4455805 Whirlpool Oven Grommet
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP3400015 Whirlpool Screw
NI	SCREW
NI	HARNESS, WIRING (INCLUDES CONDUIT)
NI	16515 Whirlpool Clip
1	INSTALLATION, INSTRUCTIONS
1B	GUIDE, USE AND CARE
1A	Installation Instructions (Undercounter Oven)
2	BRACKET, SWITCH MOUNTING
3	WP8286452 Whirlpool Grommet
4	WPW10140169 Whirlpool Cooktop
5	W10491985 Whirlpool Screw
6	WPL 7101P30960
7A	WPW10392437 Whirlpool Infinite Switch
7	WPW10392436 Whirlpool Infinite Switch
8	WP4456181 Whirlpool Indicator Light
9	WP3400093 Whirlpool Screw
10	WP3196557 Whirlpool Screw
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11A	DRIP BOWL 8" W/HOLE CHROME
12A	ELMNT-SURF
12	W11396792 Whirlpool Surface Coil Element
13	WP8286043BL Whirlpool Knob
14	3183956 Whirlpool Oven Seal Switch
15	BOX, BURNER
16	8186533 Whirlpool Hardware
