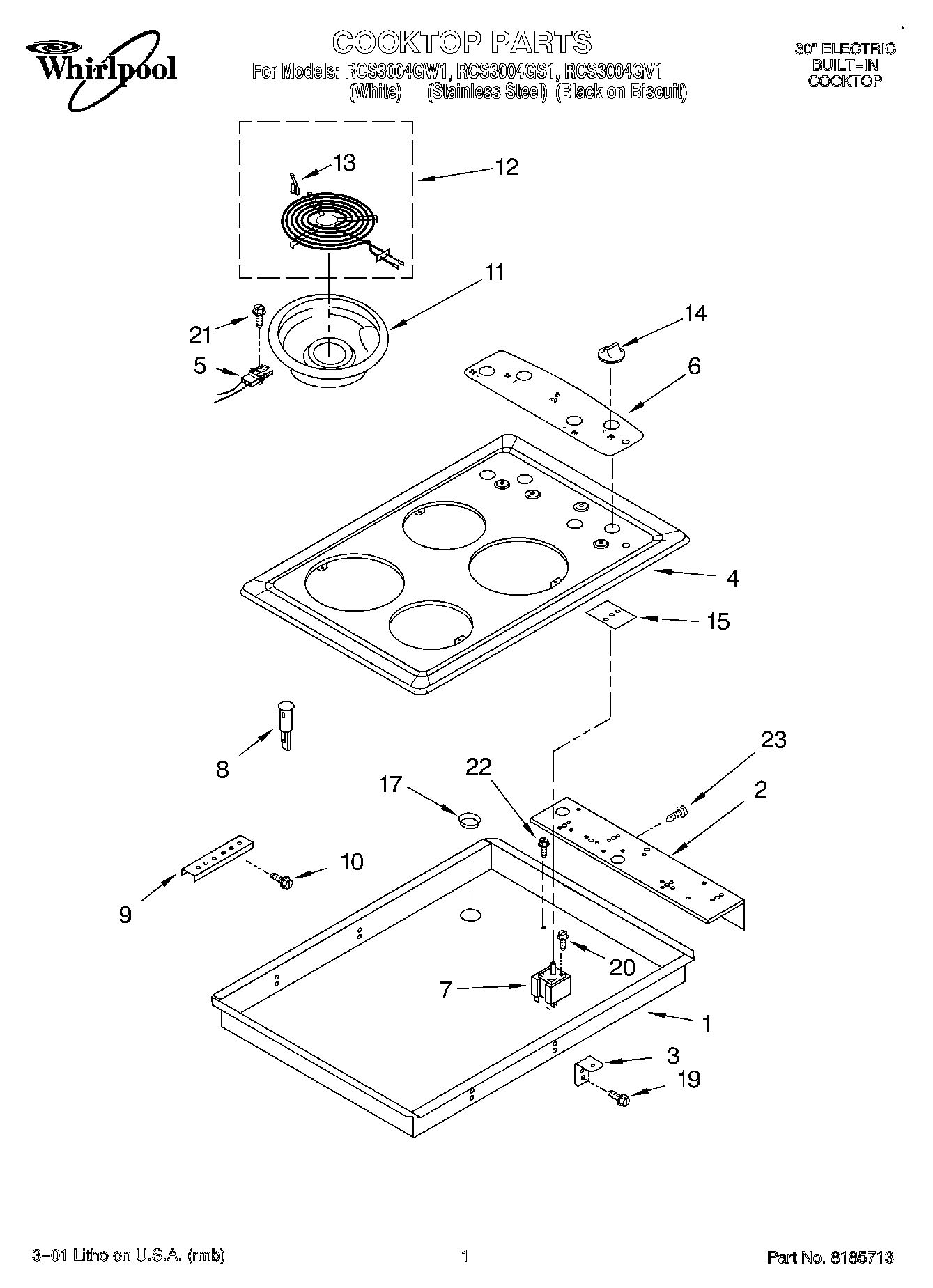

RCS3004GS1 01 – SECTION

Products

Position	Product
	Use & Care Guide
	Harness, Wire (Main)
	Installation Instructions
	Harness, Wire (Light)
	Conduit Assembly
	Wiring Diagram
	W10491985 Whirlpool Screw
	Bracket, Installation
1	Burner Box
2	Bracket, Switch Mounting
3	3192454 Whirlpool Oven Mounting Bracket
4	Cooktop (White)
4	Cooktop (Biscuit)
4	Cooktop (Stainless Steel)
5	814399 Whirlpool Receptacle Kit
6	Panel, Control (Black)
7	WP3191472 Whirlpool Infinite Switch
7	WP3191471 Whirlpool Infinite Switch
8	WP4456181 Whirlpool Indicator Light
9	8186533 Whirlpool Hardware
10	Screw
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	WPW10345407 Whirlpool Surface Element
12	WP9761346 Whirlpool Stove Surface Burner Element
13	WP3195917 Whirlpool Clip Assembly
14	WP3196231 Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
17	Bushing, Fiber
19	WP3196557 Whirlpool Screw
20	3400855 Whirlpool Oven Screw
21	WP12990527 Whirlpool Microwave Screw
22	WP3400015 Whirlpool Screw
23	WP3177991 Whirlpool Screw
