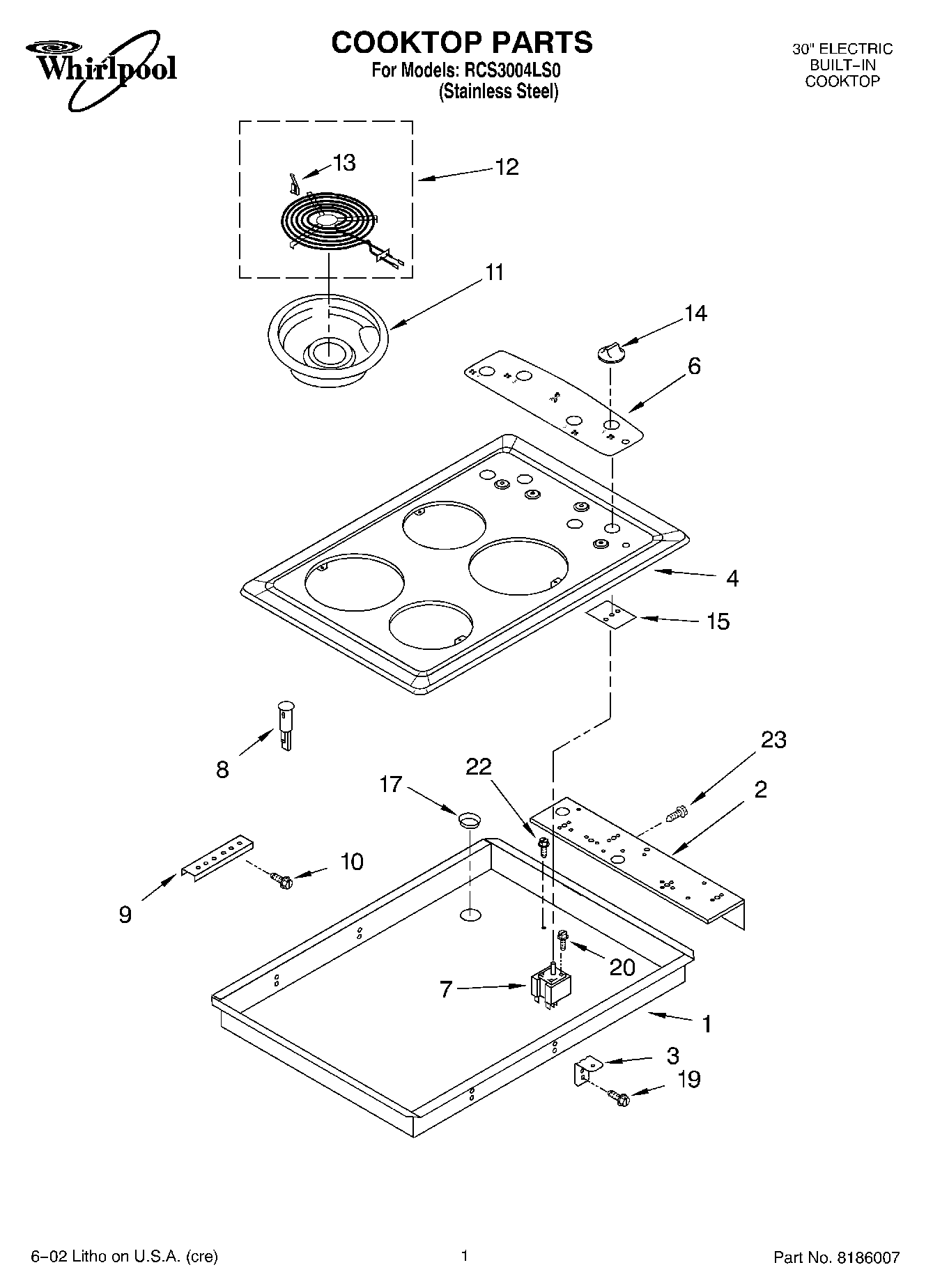

RCS3004LS0 01 – SECTION

Written by

Products

Position	Product
	Use & Care Guide
	Harness, Wire (Light)
	4455805 Whirlpool Oven Grommet
	Installation Instructions
	Wiring Diagram
	Harness, Wire (Main)
	W10491985 Whirlpool Screw
	Conduit Assembly
1	Burner Box
2	Bracket, Switch Mounting
3	3192454 Whirlpool Oven Mounting Bracket
4	Cooktop (Stainless Steel)
6	Panel, Control (Black)
7	WP3191471 Whirlpool Infinite Switch
7	WP3191472 Whirlpool Infinite Switch
8	WP4456181 Whirlpool Indicator Light
9	8186533 Whirlpool Hardware
10	WP3400093 Whirlpool Screw
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	WPW10345407 Whirlpool Surface Element
12	WP9761346 Whirlpool Stove Surface Burner Element
13	WP3195917 Whirlpool Clip Assembly
14	WP8522566 Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
17	Bushing, Fiber
19	WP3196557 Whirlpool Screw
20	3400855 Whirlpool Oven Screw
22	WP3400015 Whirlpool Screw
23	WP3177991 Whirlpool Screw
