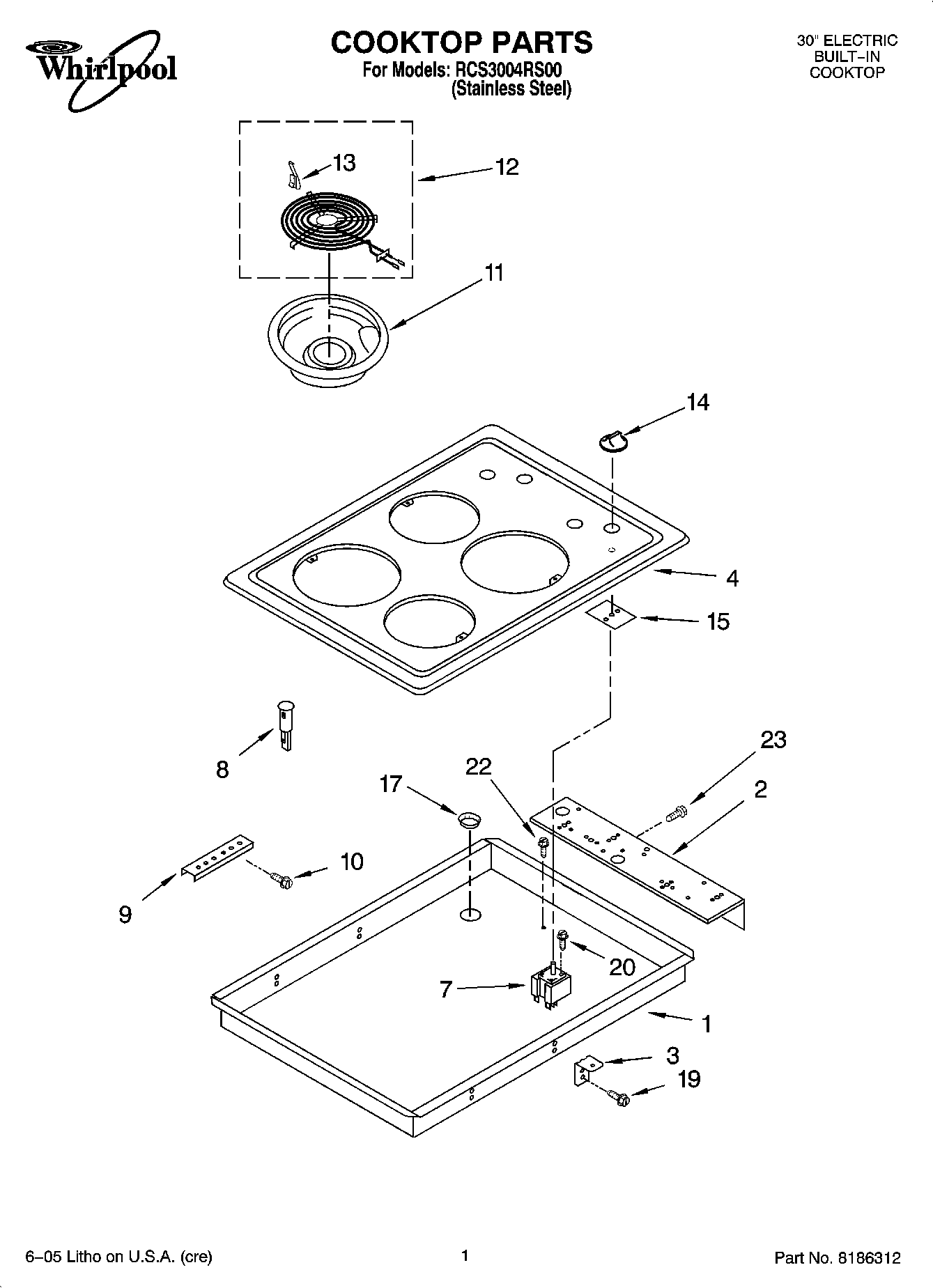

RCS3004RS00 01 – COOKTOP PARTS

Products

Position	Product
1	Burner Box
2	Bracket, Switch Mounting
3	3192454 Whirlpool Oven Mounting Bracket
4	Cooktop (Stainless Steel)
7	WP3191471 Whirlpool Infinite Switch
7	WP3191472 Whirlpool Infinite Switch
8	WP4456181 Whirlpool Indicator Light
9	8186533 Whirlpool Hardware
10	WP3400093 Whirlpool Screw
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	WP9761346 Whirlpool Stove Surface Burner Element
12	WPW10345407 Whirlpool Surface Element
13	WP3195917 Whirlpool Clip Assembly
14	WP8286043BL Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
17	Bushing, Fiber
19	WP3196557 Whirlpool Screw
20	3400855 Whirlpool Oven Screw
22	WP3400015 Whirlpool Screw
23	Use & Care Guide
23	Wiring Diagram
23	W10491985 Whirlpool Screw
23	Harness, Main
23	WIRING HARNESS PARTS
23	FOLLOWING PARTS NOT ILLUSTRATED LITERATURE PARTS
23	WP3177991 Whirlpool Screw
23	INSTALLATION, INSTRUCTIONS
23	Safe Cooking Tips
23	4455805 Whirlpool Oven Grommet
23	Harness, Wire (Light)
23	Conduit Assembly
