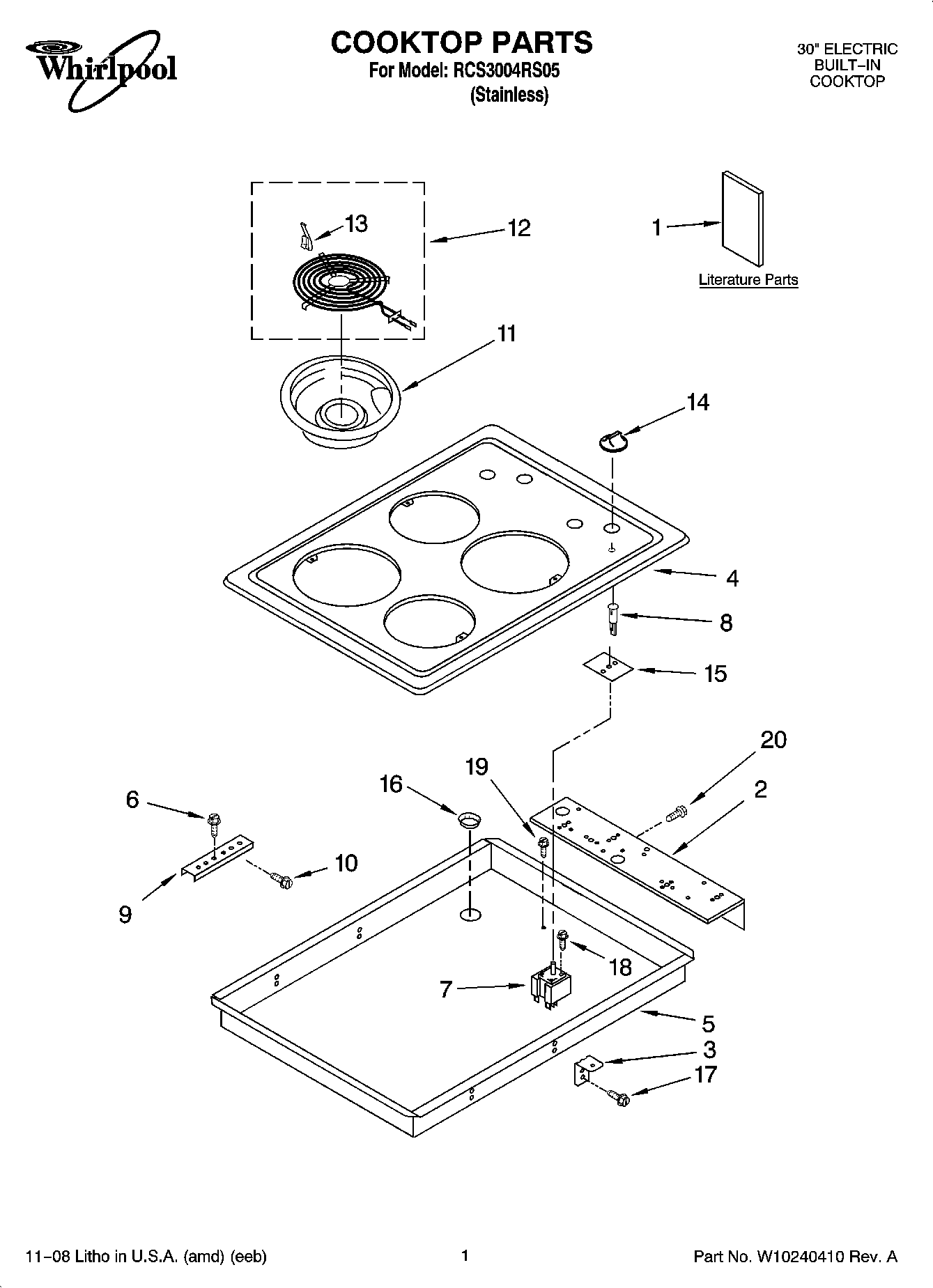

RCS3004RS05 01 – COOKTOP PARTS

RCS3004RS05 01 – COOKTOP PARTS

Written by

in

RCS3004RS05 01 – COOKTOP PARTS

Products

PositionProduct
Conduit Assembly
W10491985 Whirlpool Screw
4455805 Whirlpool Oven Grommet
WIRING HARNESS PARTS
Harness, Main
1INSTALLATION, INSTRUCTIONS
1Use & Care Guide
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2Bracket, Switch Mounting
33192454 Whirlpool Oven Mounting Bracket
4COOKTOP
5Burner Box
7WP3191472 Whirlpool Infinite Switch
7WP3191471 Whirlpool Infinite Switch
8WP4456181 Whirlpool Indicator Light
98186533 Whirlpool Hardware
10WP3400093 Whirlpool Screw
11DRIP BOWL 8" W/HOLE CHROME
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
12WPW10345407 Whirlpool Surface Element
12WP9761346 Whirlpool Stove Surface Burner Element
13WP3195917 Whirlpool Clip Assembly
14WP8286043BL Whirlpool Knob
153183956 Whirlpool Oven Seal Switch
16Bushing, Fiber
17WP3196557 Whirlpool Screw
183400855 Whirlpool Oven Screw
19WP3400015 Whirlpool Screw
20WP3177991 Whirlpool Screw
