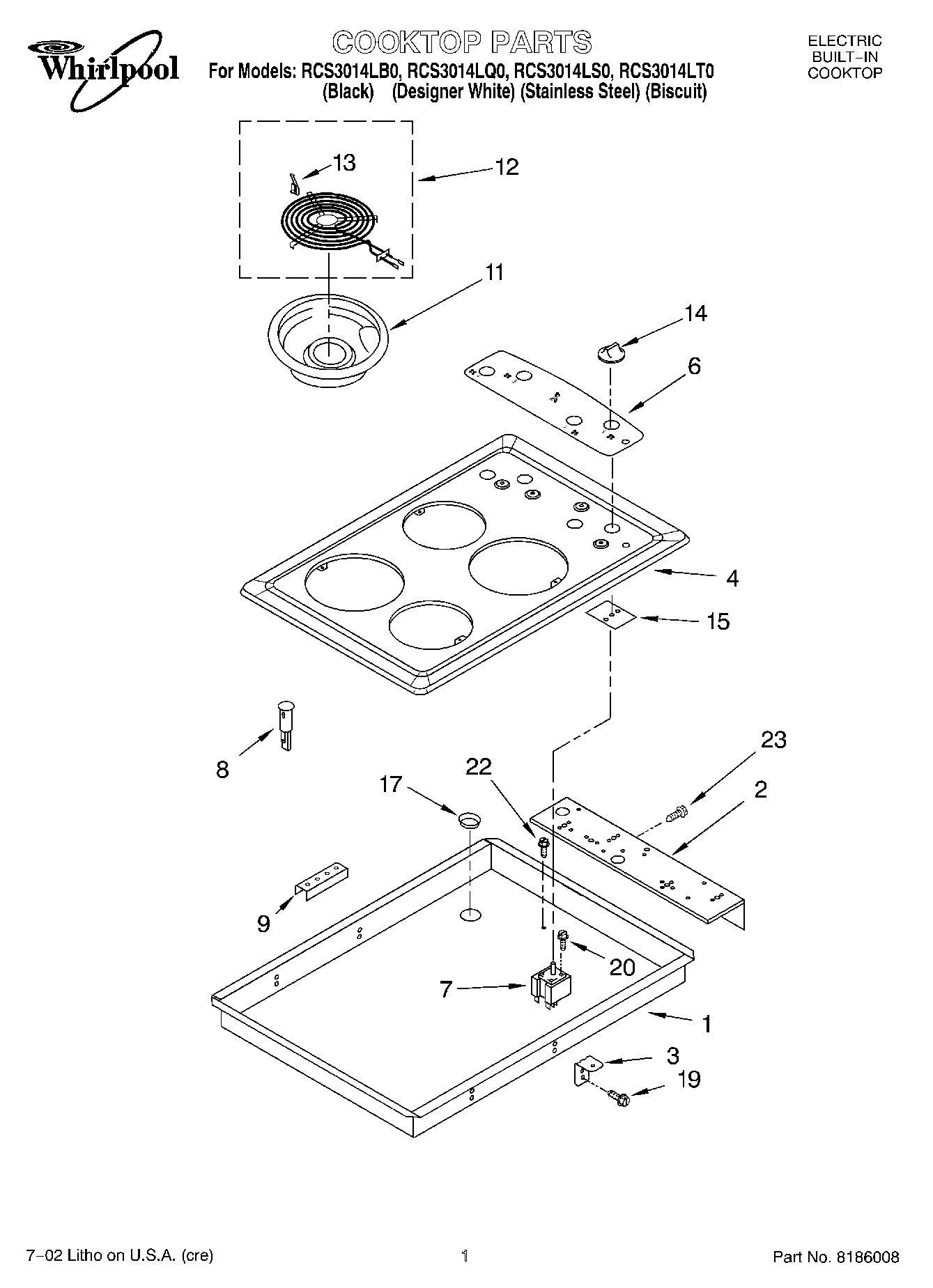

RCS3014LB0 01 – SECTION

Products

Position	Product
	Safer Cooking Tips
	Conduit Assembly
	Wiring Diagram
	Installation Instructions
	Harness, Wire (Main)
	Harness, Wire (Light)
	Use & Care Guide
	3184020 Whirlpool Oven Wire
1	Burner Box
2	Bracket, Switch Mounting
3	3192454 Whirlpool Oven Mounting Bracket
4	Cooktop (White)
4	Cooktop (Black)
4	Cooktop (Stainless Steel)
4	Cooktop (Biscuit)
6	Panel, Control (White)
6	Panel, Control (Black)
6	Panel, Control (Biscuit)
7	WP3191471 Whirlpool Infinite Switch
7	WP3191472 Whirlpool Infinite Switch
8	WP4456181 Whirlpool Indicator Light
9	8186533 Whirlpool Hardware
9	WP3400093 Whirlpool Screw
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	WP3191454 Whirlpool Surface Element
12	WP660532 Whirlpool Oven Surface Element
13	WP3195917 Whirlpool Clip Assembly
14	WP8522565 Whirlpool Knob
14	Knob, Control (4) (Biscuit)
14	WP8522566 Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
17	Bushing, Fiber
19	WP3196557 Whirlpool Screw
20	3400855 Whirlpool Oven Screw
22	WP3400015 Whirlpool Screw
23	WP3177991 Whirlpool Screw
