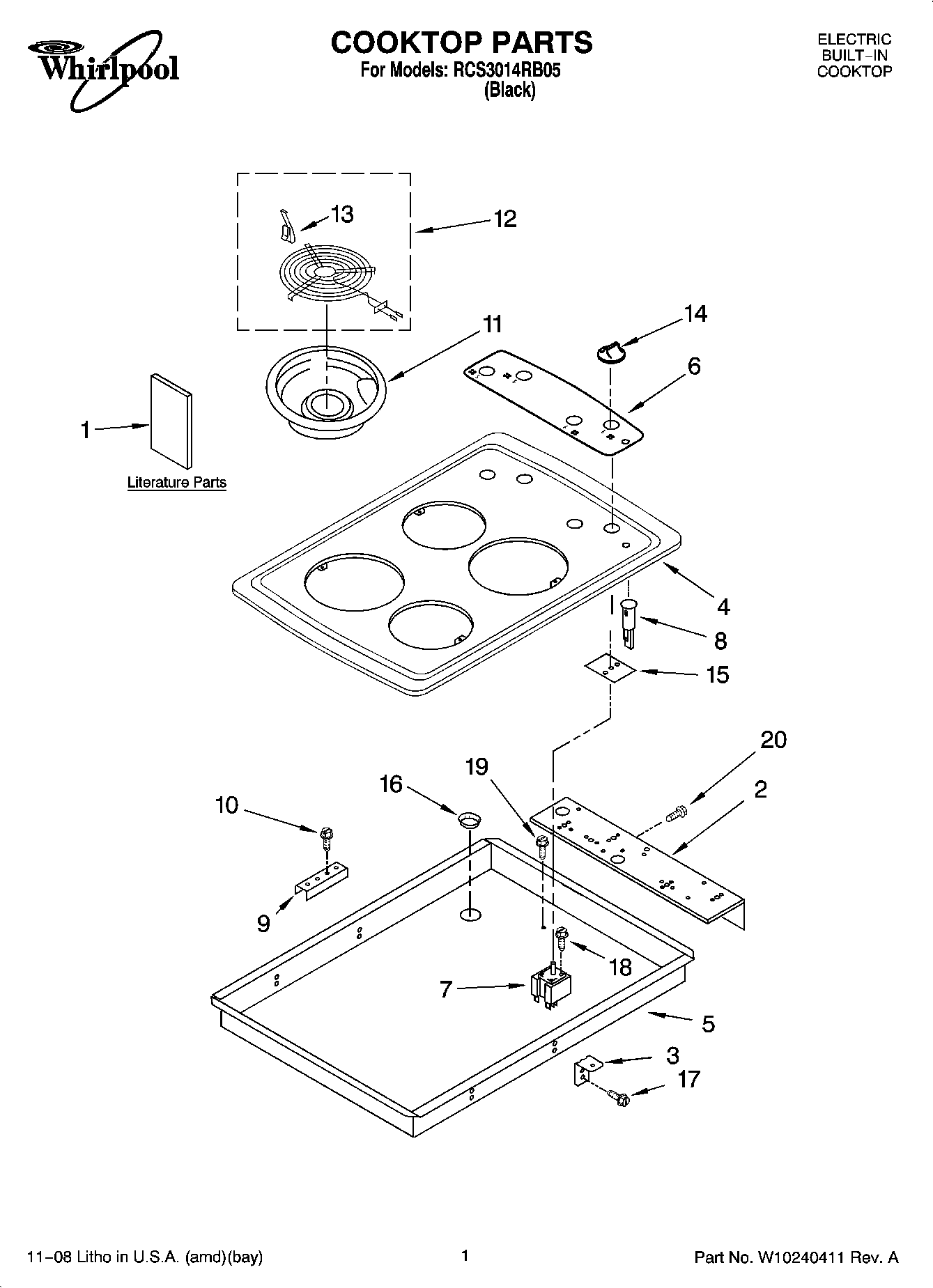

RCS3014RB05 01 – COOKTOP PARTS

RCS3014RB05 01 – COOKTOP PARTS

Written by

in

RCS3014RB05 01 – COOKTOP PARTS

Products

PositionProduct
WIRING HARNESS PARTS
4455805 Whirlpool Oven Grommet
Harness, Main
Conduit Assembly
1Use & Care Guide
1INSTALLATION, INSTRUCTIONS
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
2Bracket, Switch Mounting
33192454 Whirlpool Oven Mounting Bracket
4Cooktop (Black)
5Burner Box
6Panel, Control (Black)
7WP3191471 Whirlpool Infinite Switch
7WP3191472 Whirlpool Infinite Switch
8WP4456181 Whirlpool Indicator Light
98186533 Whirlpool Hardware
10WP3400093 Whirlpool Screw
11DRIP BOWL 8" W/HOLE CHROME
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
12WP3191454 Whirlpool Surface Element
12WP660532 Whirlpool Oven Surface Element
13WP3195917 Whirlpool Clip Assembly
14WP8286043BL Whirlpool Knob
153183956 Whirlpool Oven Seal Switch
16Bushing, Fiber
17WP3196557 Whirlpool Screw
183400855 Whirlpool Oven Screw
19WP3400015 Whirlpool Screw
20WP3177991 Whirlpool Screw
