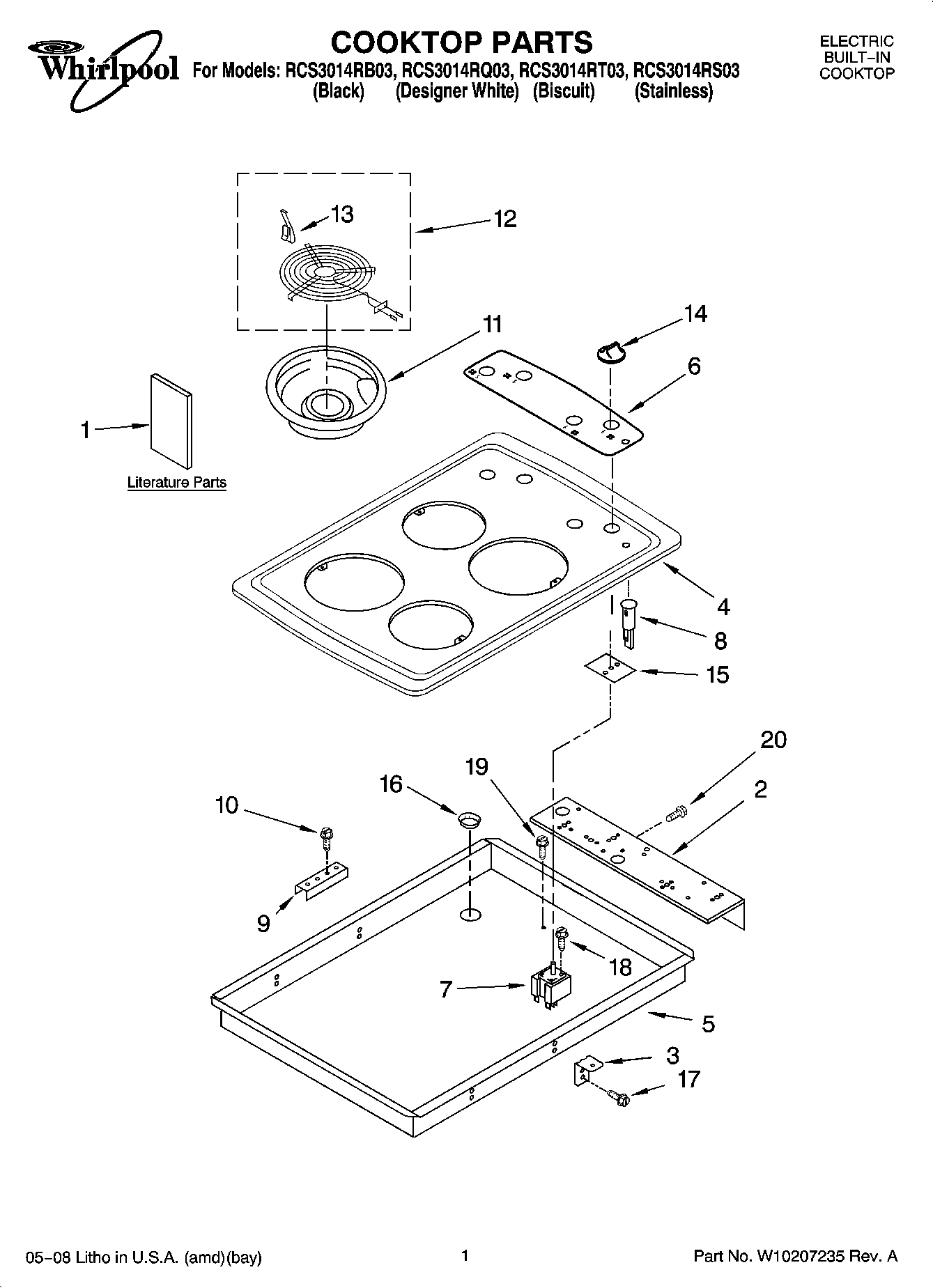

RCS3014RT03 01 – COOKTOP PARTS

Products

Position	Product
	WIRING HARNESS PARTS
	Harness, Main
	4455805 Whirlpool Oven Grommet
	Conduit Assembly
1	Use & Care Guide
1	INSTALLATION, INSTRUCTIONS
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
2	Bracket, Switch Mounting
3	3192454 Whirlpool Oven Mounting Bracket
4	Cooktop (Stainless)
4	Cooktop (Designer White)
4	Cooktop (Black)
4	Cooktop (Biscuit)
5	Burner Box
6	Panel, Control (Black)
6	Panel, Control (White)
6	Panel, Control (Biscuit)
7	WP3191472 Whirlpool Infinite Switch
7	WP3191471 Whirlpool Infinite Switch
8	WP4456181 Whirlpool Indicator Light
9	8186533 Whirlpool Hardware
10	WP3400093 Whirlpool Screw
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	WP3191454 Whirlpool Surface Element
12	WP660532 Whirlpool Oven Surface Element
13	WP3195917 Whirlpool Clip Assembly
14	WP8286043BL Whirlpool Knob
14	8286043BT Whirlpool Knob
14	8286043WH Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
16	Bushing, Fiber
17	WP3196557 Whirlpool Screw
18	3400855 Whirlpool Oven Screw
19	WP3400015 Whirlpool Screw
20	WP3177991 Whirlpool Screw
