| WPL LIT3191538 |
| Bushing, Fiber |
| Grommet |
| 3184020 Whirlpool Oven Wire |
| Harness, Wire (Light) |
| Conduit Assembly |
| Use & Care Guide |
| Wiring Diagram |
| Harness, Wiring (Main) |

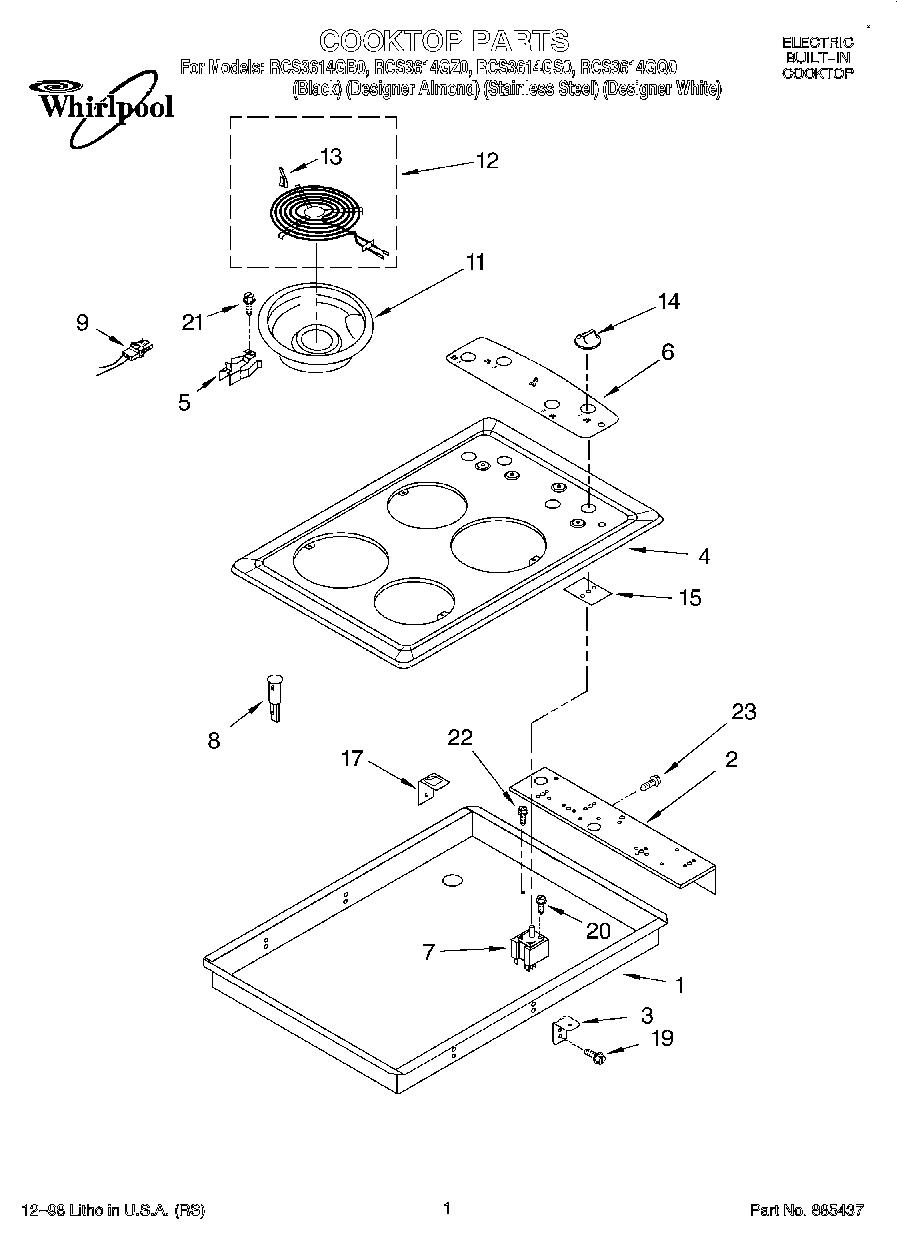

| 1 | Burner Box |
| 2 | Bracket, Switch Mounting |
| 3 | 3192454 Whirlpool Oven Mounting Bracket |
| 4 | Cooktop (Designer Almond) |
| 4 | Cooktop (Black) |
| 4 | Cooktop (Designer White) |
| 4 | Cooktop (Stainless Steel) |
| 5 | WP9760411 Whirlpool Clip |
| 6 | Panel, Control (White) |
| 6 | Panel, Control (Almond) |
| 6 | Panel, Control (Black) |
| 7 | WP3191472 Whirlpool Infinite Switch |
| 7 | WP3191471 Whirlpool Infinite Switch |
| 8 | WP4456181 Whirlpool Indicator Light |
| 9 | 814399 Whirlpool Receptacle Kit |
| 11 | DRIP BOWL 8" W/HOLE CHROME |
| 11 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 12 | WP660532 Whirlpool Oven Surface Element |
| 12 | WP3191454 Whirlpool Surface Element |
| 13 | WP3195917 Whirlpool Clip Assembly |
| 14 | WP3196231 Whirlpool Knob |
| 14 | WP3196232 Whirlpool Knob |
| 14 | Knob, Infinite (4) (Almond) |
| 15 | 3183956 Whirlpool Oven Seal Switch |
| 17 | Bracket, Installation |
| 19 | WP3196557 Whirlpool Screw |
| 20 | 3400855 Whirlpool Oven Screw |
| 21 | WP12990527 Whirlpool Microwave Screw |
| 22 | WP3400015 Whirlpool Screw |
| 23 | WP3177991 Whirlpool Screw |
