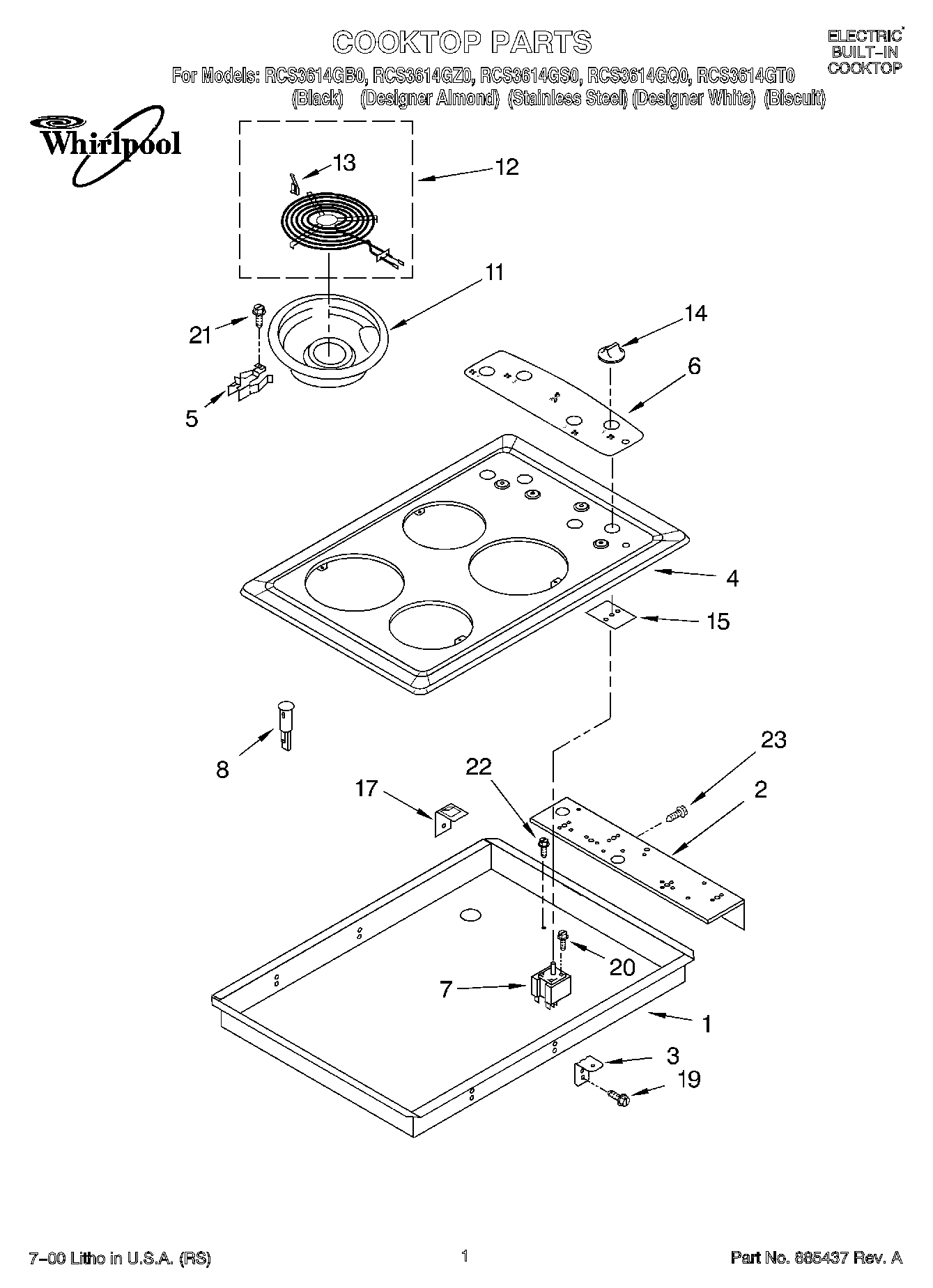

RCS3614GZ0 01 – SECTION
Written by
in
RCS3614GZ0 01 – SECTION
Products
Position
Product
Bushing, Fiber
Grommet
Harness, Wire (Light)
Conduit Assembly
Use & Care Guide
Wiring Diagram
WPL LIT3191538
Harness, Wiring (Includes Element Receptacles)
3184020 Whirlpool Oven Wire
1
Burner Box
2
Bracket, Switch Mounting
3
3192454 Whirlpool Oven Mounting Bracket
4
Cooktop (Stainless Steel)
4
Cooktop (Black)
4
Cooktop (Designer White)
4
Cooktop (Biscuit)
4
Cooktop (Designer Almond)
5
WP9760411 Whirlpool Clip
6
Panel, Control (Biscuit)
6
Panel, Control (Almond)
6
Panel, Control (Black)
6
Panel, Control (White)
7
WP3191472 Whirlpool Infinite Switch
7
WP3191471 Whirlpool Infinite Switch
8
WP4456181 Whirlpool Indicator Light
11
WPW10196406 Whirlpool 6" Chrome Drip Bowl
11
DRIP BOWL 8" W/HOLE CHROME
12
WP3191454 Whirlpool Surface Element
12
WP660532 Whirlpool Oven Surface Element
13
WP3195917 Whirlpool Clip Assembly
14
WP3196232 Whirlpool Knob
14
Knob, Infinite (4) (Almond)
14
WP3196231 Whirlpool Knob
15
3183956 Whirlpool Oven Seal Switch
17
Bracket, Installation
19
WP3196557 Whirlpool Screw
20
3400855 Whirlpool Oven Screw
21
WP12990527 Whirlpool Microwave Screw
22
WP3400015 Whirlpool Screw
23
WP3177991 Whirlpool Screw
←
