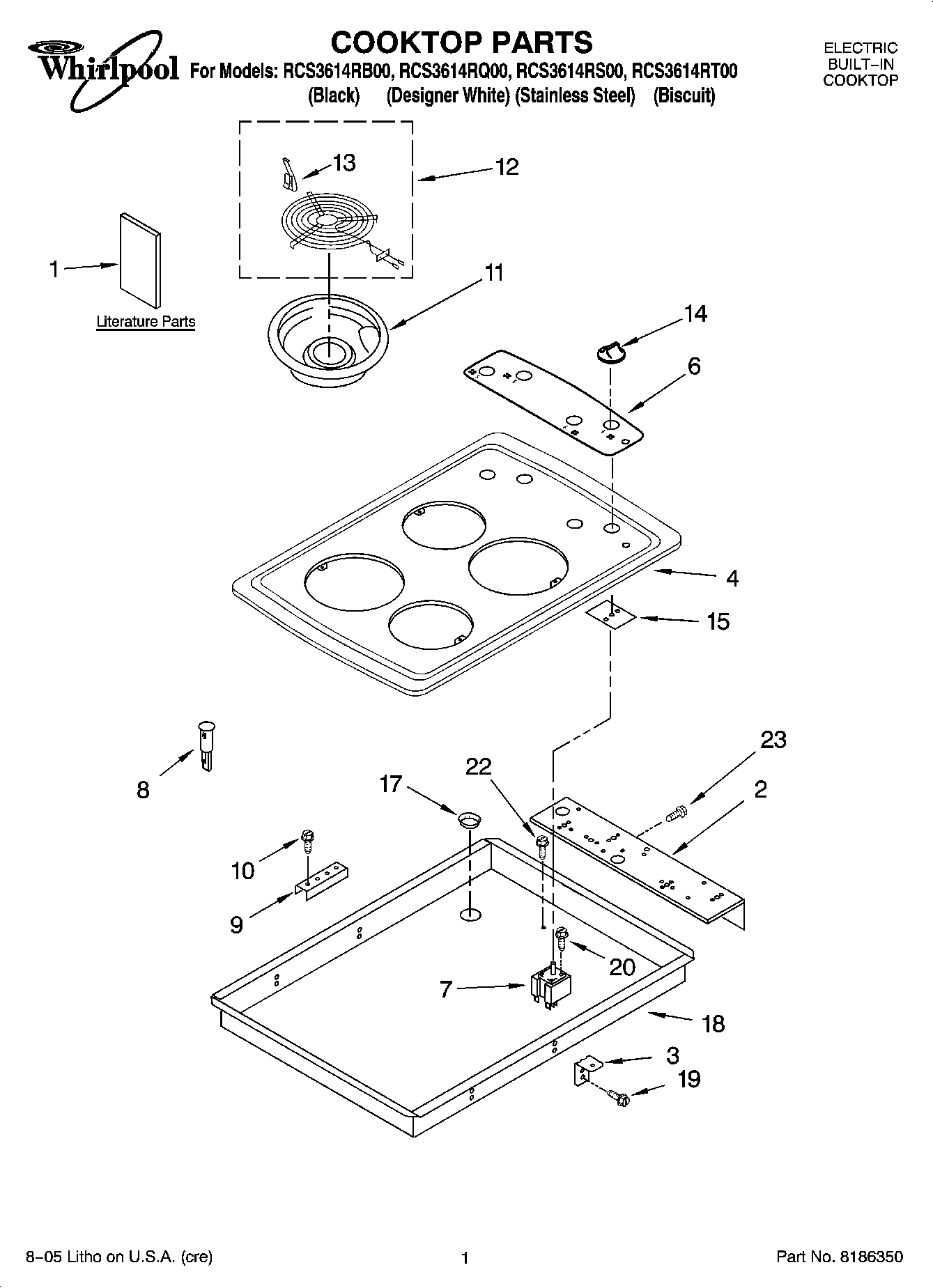

RCS3614RB00 01 – COOKTOP PARTS

Products

Position	Product
1	INSTALLATION, INSTRUCTIONS
1	Safe Cooking Tips (French)
1	Safe Cooking Tips
1	Wiring Diagram
1	Use & Care Guide
2	Bracket, Switch Mounting
3	3192454 Whirlpool Oven Mounting Bracket
4	Cooktop (Biscuit)
4	Cooktop (Black)
4	Cooktop (Designer White)
4	Cooktop (Stainless Steel)
6	Panel, Control (White)
6	Panel, Control (Biscuit)
6	Panel, Control (Black)
7	WP3191471 Whirlpool Infinite Switch
7	WP3191472 Whirlpool Infinite Switch
8	WP4456181 Whirlpool Indicator Light
9	8186533 Whirlpool Hardware
10	WP3400093 Whirlpool Screw
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	WP3191454 Whirlpool Surface Element
12	WP660532 Whirlpool Oven Surface Element
13	WP3195917 Whirlpool Clip Assembly
14	WP8286043BL Whirlpool Knob
14	8286043WH Whirlpool Knob
14	8286043BT Whirlpool Knob
15	3183956 Whirlpool Oven Seal Switch
17	Bushing, Fiber
18	Burner Box
19	WP3196557 Whirlpool Screw
20	3400855 Whirlpool Oven Screw
22	WP3400015 Whirlpool Screw
23	Harness, Wire (Main)
23	WP3177991 Whirlpool Screw
23	3184020 Whirlpool Oven Wire
23	FOLLOWING PARTS NOT ILLUSTRATED WIRING HARNESS PARTS WIRING HARNESS PARTS
23	Conduit Assembly
